Leica Visoria B Digital Microscope for Life Science & Clinical Laboratories

Item#: VISORIA-B

Experience enhanced efficiency and comfort in your daily microscopy routine. The Visoria B laboratory microscope is for applications performed in life science and clinical laboratories. Streamline your workflows with encoded functions, optimized light settings, and other microscope features. You can also be more comfortable and minimize strain thanks to the microscope’s ergonomic design.

REQUEST PROPOSAL

Supplier: Leica

Microscope:
- Size and weight: Length: 410 mm, 456 mm (with fluorescence lamphouse), width: 331 mm, height 505 mm, approx. 18 kg (depending on configuration)
- Stand: Illumination toggle buttons with status indicator, image capture button, antimicrobial surface with AgTreat according to ISO 22196
Optics:
- Nosepiece: Encoded 6x (M25
- Eyepieces (FOV): 20/ 22/ 25 mm
- Tubes: Wide range of standard, ergonomic and phototubes with different beam splitters available
- Digital Version: Digital version with 1 0" screen/ tablet
- Ergonomic accessories: Wide range of ergonomic accessories available (Ergo Tubes, Ergolift, ErgoModules
- Encoded illumination management: IL and TL: High-power white LED, encoded 4-color fluorescence illumination: emission wavelengths: UV 375 / 15 nm, B 475 / 30 nm, G 546 / 75 nm, R 628 / 18 nm, further external light sources on request (non-encoded)
- Fluorescence light axis: Optional
- Incident light (IL): Methods- Brightfield, fluorescence, DIC, qualitative polarization
- Transmitted light axis: Manual, fixed and flip-top condenser operation with color-coded diaphragm assistant
- Transmitted Light (TL): Methods- Brightfield, darkfield, phase contrast, DIC, qualitative polarization
Operation:
- Stage: Manual XV stage with ceramic plate, additional manual xy stages available, 1-specimen or 2-specimen holder
- Stage Control: Left-, right-handed stage, torque-adjustable handle
- Focus Drive: Height-adjustable focus knobs, 19 mm travel range, maximum 28 mm total stage stroke depending on stage and condenser type, 2-gear focus drive (coarse/ fine) with 1 mm scale, 3-gear focus drive (coarse/ medium/ fine) with 140, 4 and 1 µm scale, torque adjustment, and adjustable upper focus-stop
Accessories:
- Analyzer: Fixed, 180°, 360°
- Polarizer: Fixed and rotatable
General Specs:
- Supply Voltage: 100-240 V AC, 50 / 60 Hz, power consumption max. 15 W
- Ambient Conditions: 15-35°C, relative humidity max. 80% up to 30°C (non-condensing)

Efficiency through encoded functions: Save time with simplified documentation and encoded microscope functionality, allowing to focus on your specimen.
More Comfort with Ergonomics: Work with a comfortable posture by taking advantage of the symmetrical positioning of controls and ergonomic accessories
Powered by Enersight: Simplify and streamline your workflow with the Visoria B laboratory microscope and Enersight software platform
Optimized light settings: If you change the microscope’s magnification or contrast method, there is no need to manually adjust the brightness thanks to the light management function. The illumination settings are automatically applied thanks to the microscope‘s encoding
Simplify your documentation: Quickly capture sample details with a press of a button while keeping your eyes on the image
Intuitive operation:
- Easily find the appropriate aperture for each objective with color coding.
- Protect your specimens and objectives from accidental damage with the built-in focus stop.
- For finer focus at higher magnification, use the three-gear focusing system - coarse, medium, and fine.
Automatically switches off the illumination after you acquire an image for specimen protection
Maintain a clean, hygienic work environment and reduce the risk of spreading germs thanks to the antimicrobial, silver-treated microscope surfaces

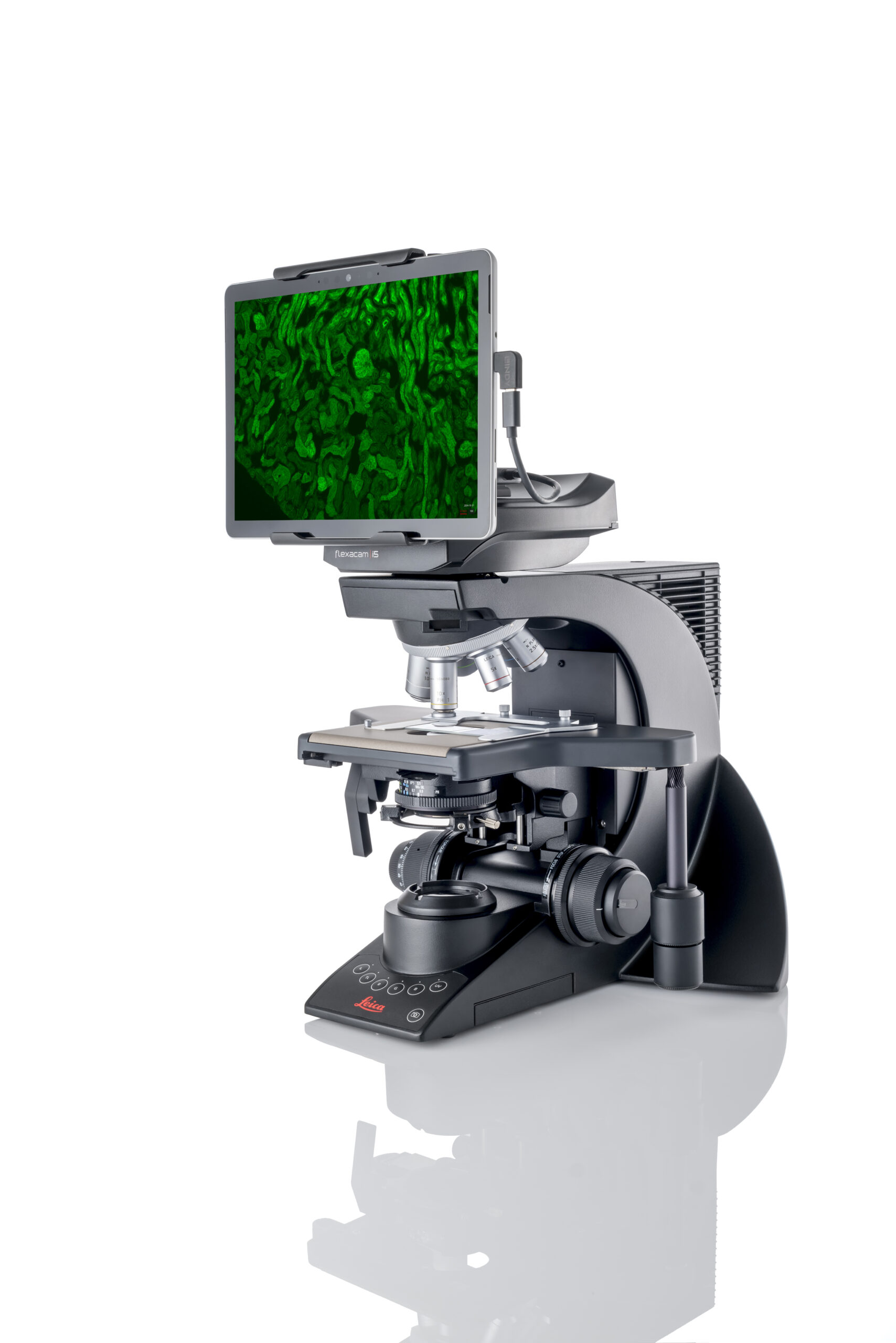

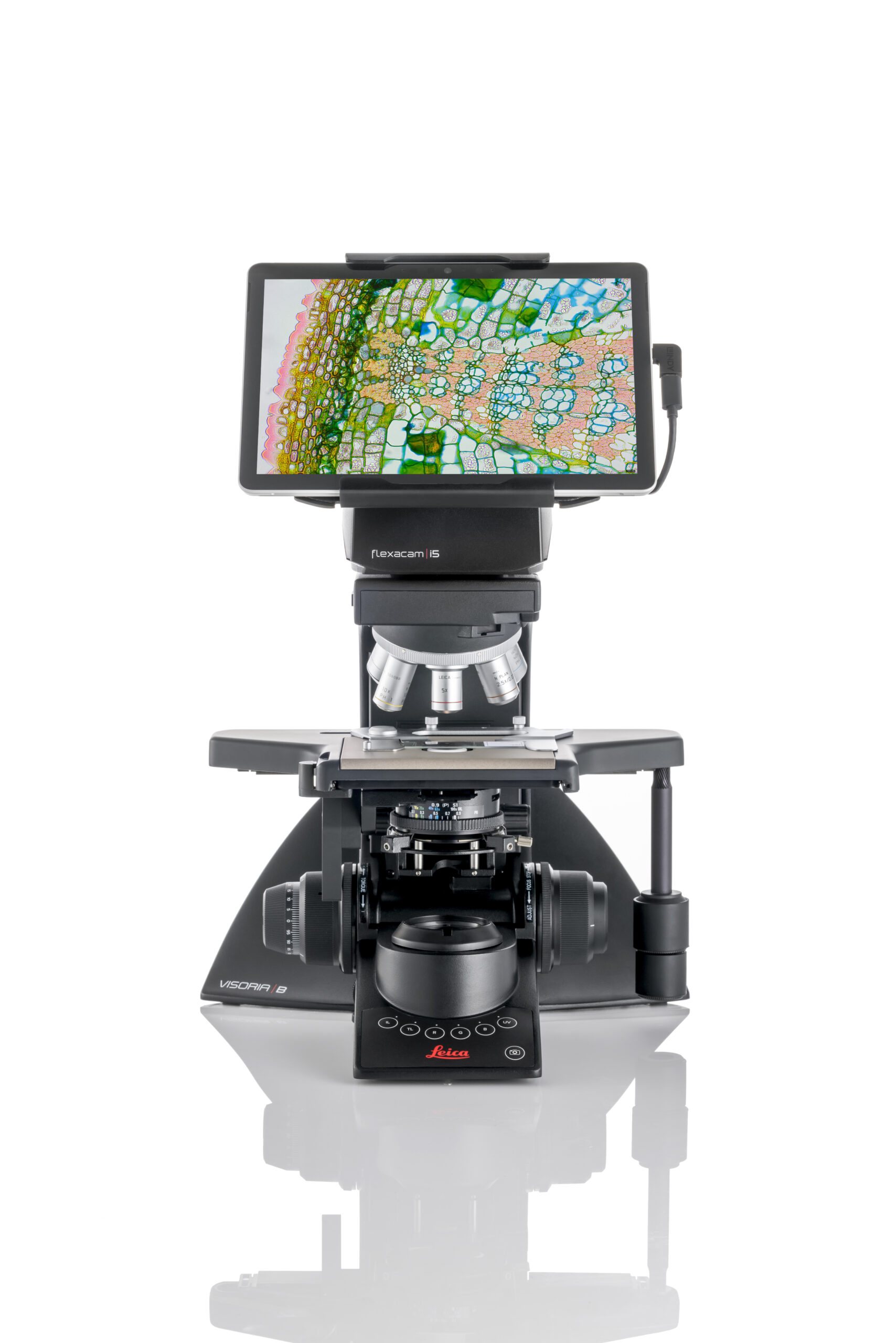

Work without eyepieces by going digital:
- Work in a comfortable and relaxed position by viewing images directly on a tablet.
- Visualize and document your work steps quickly and discuss image results easily with your colleagues.
- Save space on your workbench without the need for a computer.
Can operate one handed
Easily switch between right- and left-handed operation
