Leica M205 C & M205 A Encoded Stereo Microscope

Item#: M205

The Leica coded stereo microscopes M125 C, M205 C and M205 A help you to pave the way to correct results with high-quality images that allow measurements and can be accurately repeated with minimal effort. The Leica M205 C is the world’s first stereo microscope to achieve an optical resolution of 0.952 µm.

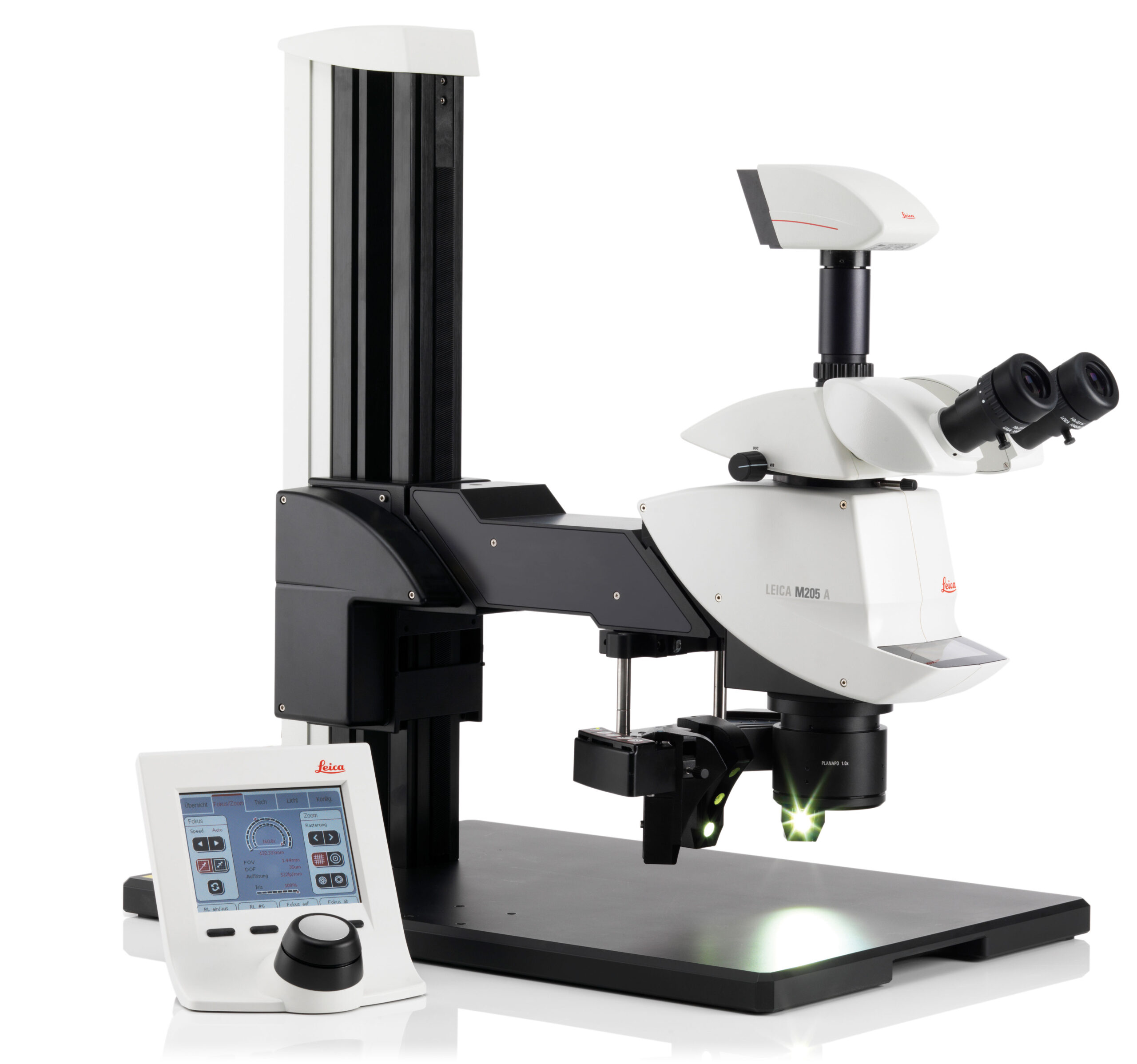

M205A- fully automated

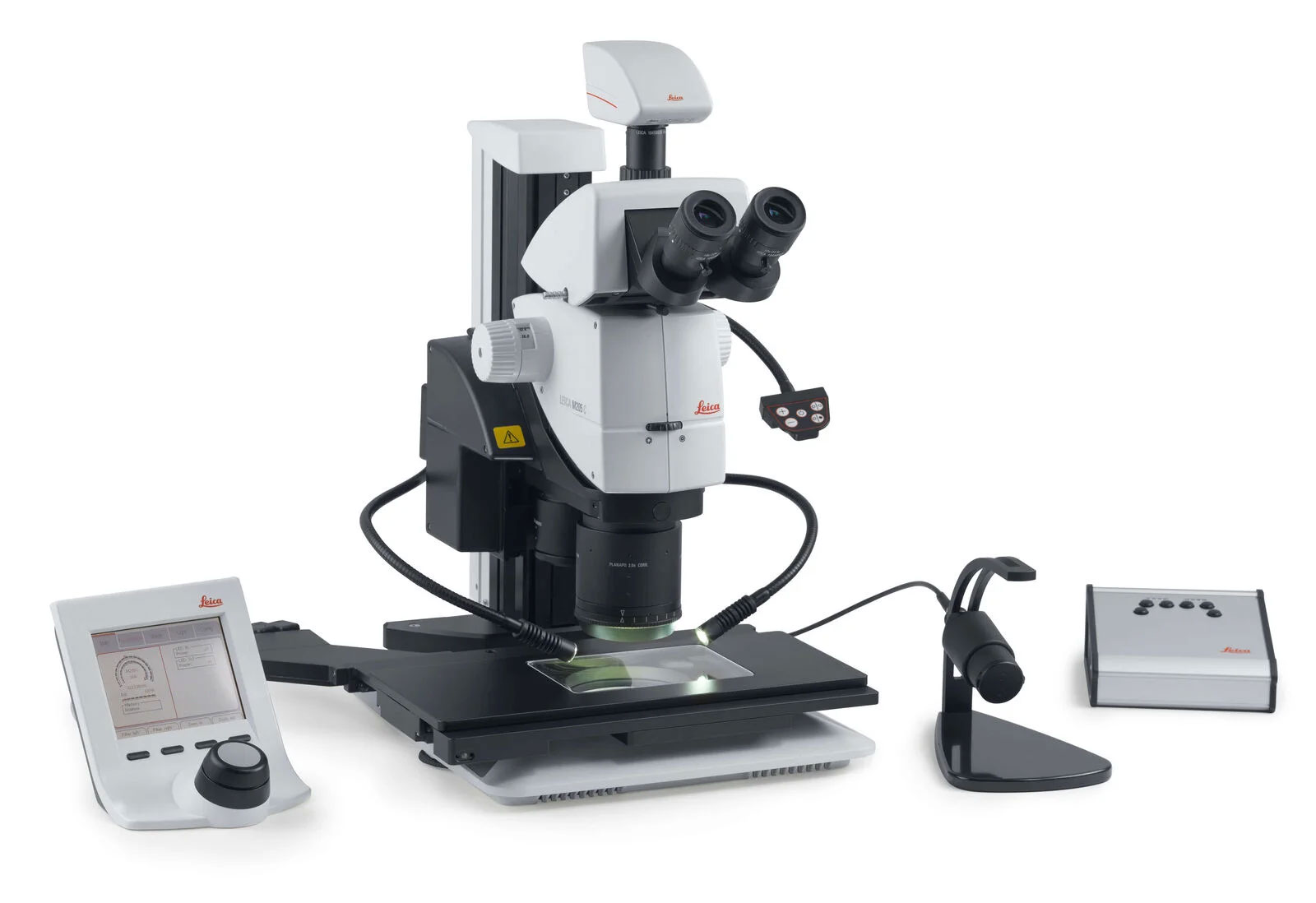

M205 C with FusionOptics

REQUEST PROPOSAL

Supplier: Leica

Zoom: 20.5 : 1 manual/motorized coded with FusionOptics
Optical Data
- Data with standard optics (1× objective/10× eyepieces):
  - Zoom Range: 7.8×–160×
  - Resolution: max. 525 lp/mm
  - Working Distance: 61.5 mm (planapochromatic)
  - Object Field: ∅ 29.5 mm –1.44 mm
- Maximum values (based on optics combination):
  - Magnification: 1280×
  - Resolution: 1,050 lp/mm
  - Visible structural width: 476 nm
  - Numerical aperture: 0.35
  - Object Field: ∅ 59 mm
- Working distances:
  - 135 mm (0.5× planachromatic)
  - 112 mm (0.8× planachromatic)
  - 67 mm (0.63× planapochromatic)
  - 61.5 mm (1× planapochromatic)
  - 30.5 mm (1.6× planapochromatic)
  - 20.1 mm (2× planapochromatic)
Optics Carrier
- 100 % apochromatic optical system: CMO (Common Main Objective) lead-free
- Coded/motorized function: Zoom, iris diaphragm, objective nosepiece (encoded and motorized)
- Specific surface resistivity (housing): 2×10 Ω/mm2 discharge time <2 seconds from 1,000 V to 100 V
- Engageable zoom notches: 14 for repetitive tasks (M205 C)/continuously variable control with SmartTouch or LAS X (M205 A)
- Double-iris diaphragm for depth of field control: Installed and encoded (M205 C) / motorized (M205 A)

Image coding is the smart way to reproduce settings for easy documentation and consistent reporting. The microscope encoding transmits both the magnification and the position of the iris diaphragm in real time to the software.
A scale bar is superimposed on the image and adjusted with changing magnification. When you store an image, key system parameters are saved with it.
Reliable results even from inexperienced operators
Change settings without manually adjusting the calibration
Easily acquire calibrated images for comparable results and consistent documentation
Rely on award-winning objectives with great optical performance for high quality images
Obtain high resolution with maximum depth of field. The revolutionary FusionOptics technology featured in the Leica M205 reveals the finest details
Further enhance your resolution up to 1050 lp/mm with the 2.0x PlanApo objective
Increase productivity of your users by creating ergonomic microscope solutions
Ergo accessories help to work accurately and efficiently
Choose from the powerful range of Leica illumination to discover the details you have been missing
Acquire images with Leica digital cameras to share your results
20.5:1 zoom
7.8 x to 160 x magnification
up to 1050 lp/mm resolution (with 2.0x objective)
Typical applications:
- Medical device manufacturing
- Semiconductor inspection
- Materials science
Exclusive FusionOptics: Has one light beam path that delivers an image with the highest possible resolution, while the other provides an image with maximum depth of field
