- Zoom: 12.5 : 1 manual coded
- Optical Data
- Data with standard optics (1× objective/10× eyepieces):
- Zoom Range: 8×–100×
- Resolution: max. 432 lp/mm
- Working Distance: 61.5 mm (planapochromatic)
- Object Field: ∅ 28.8 mm – 2.3 mm
- Maximum values (based on optics combination):
- Magnification: 800×
- Resolution: 864 lp/mm
- Visible structural width: 579 nm
- Numerical aperture: 0.288
- Object Field: ∅ 68 mm
- Working distances:
- 135 mm (0.5× planachromatic)
- 112 mm (0.8× planachromatic)
- 67 mm (0.63× planapochromatic)
- 61.5 mm (1× planapochromatic)
- 30.5 mm (1.6× planapochromatic)
- 20.1 mm (2× planapochromatic)
- Data with standard optics (1× objective/10× eyepieces):
- Optics Carrier
- 100 % apochromatic optical system: CMO (Common Main Objective) lead-free
- Coded/motorized function: Zoom, iris diaphragm, objective nosepiece (coded only)
- Specific surface resistivity (housing): 2×10 Ω/mm2 discharge time <2 seconds from 1,000 V to 100 V
- Engageable zoom notches: 12 for repetitive tasks
- Double-iris diaphragm for depth of field control: Built-in and encoded

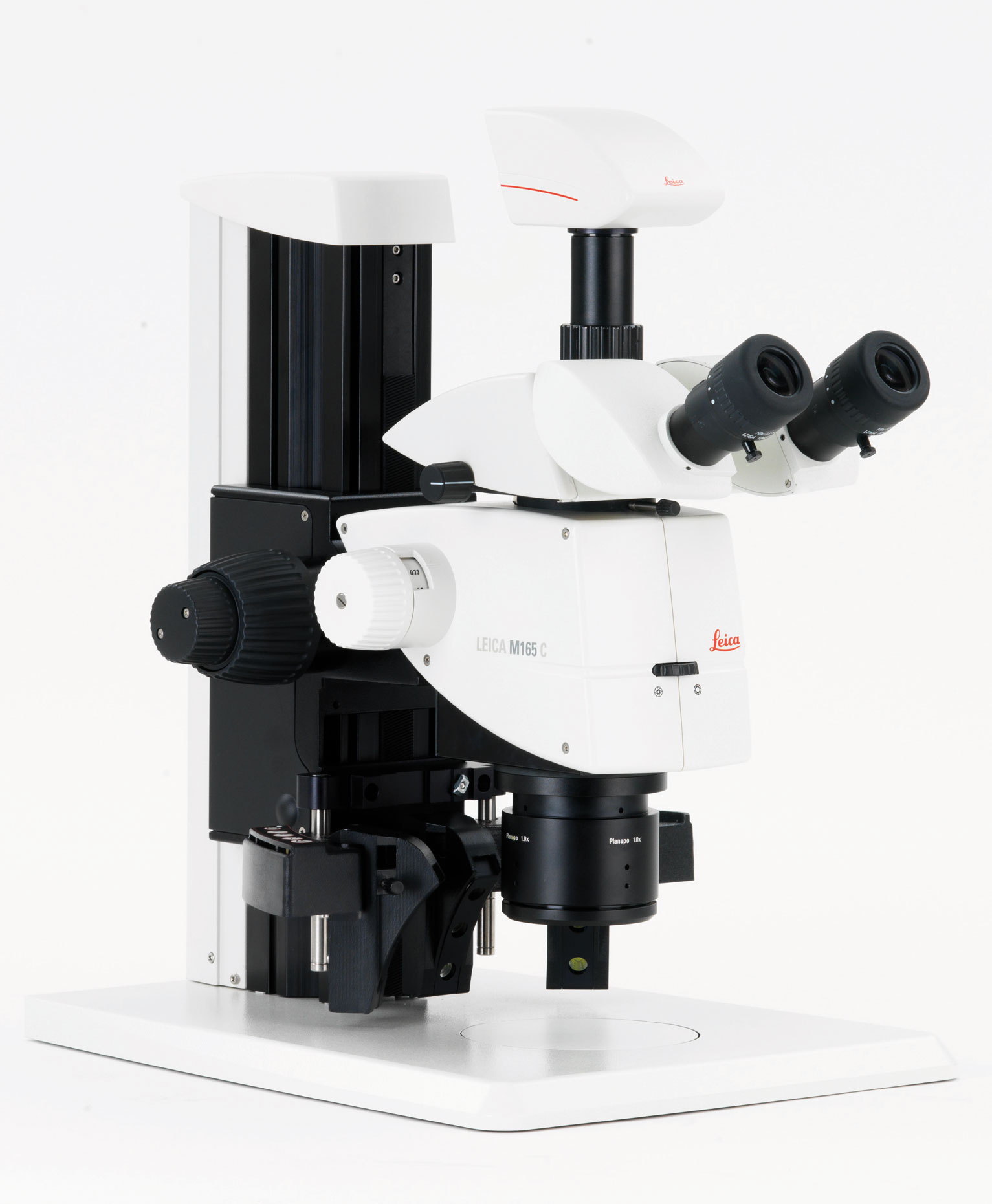

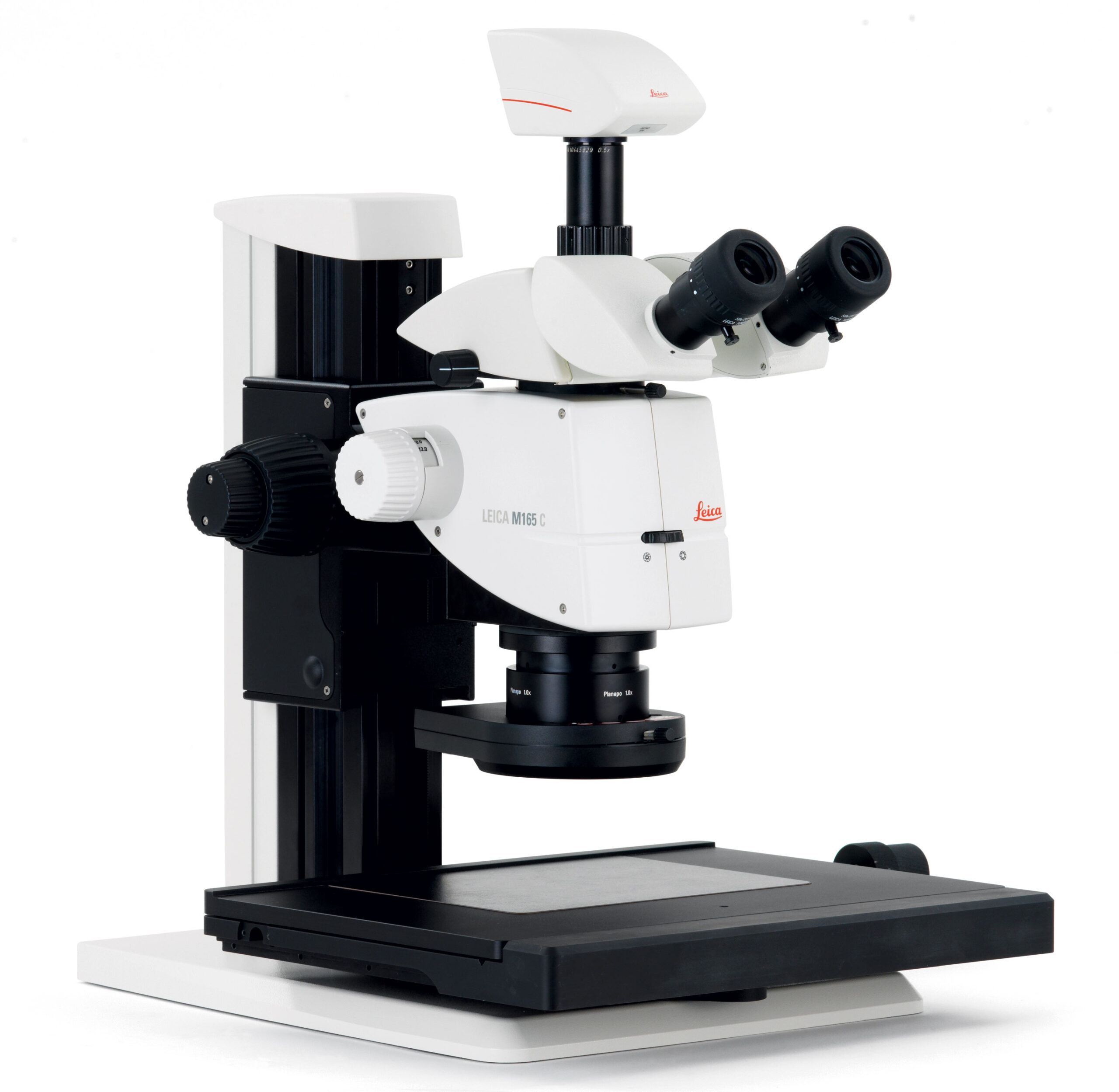

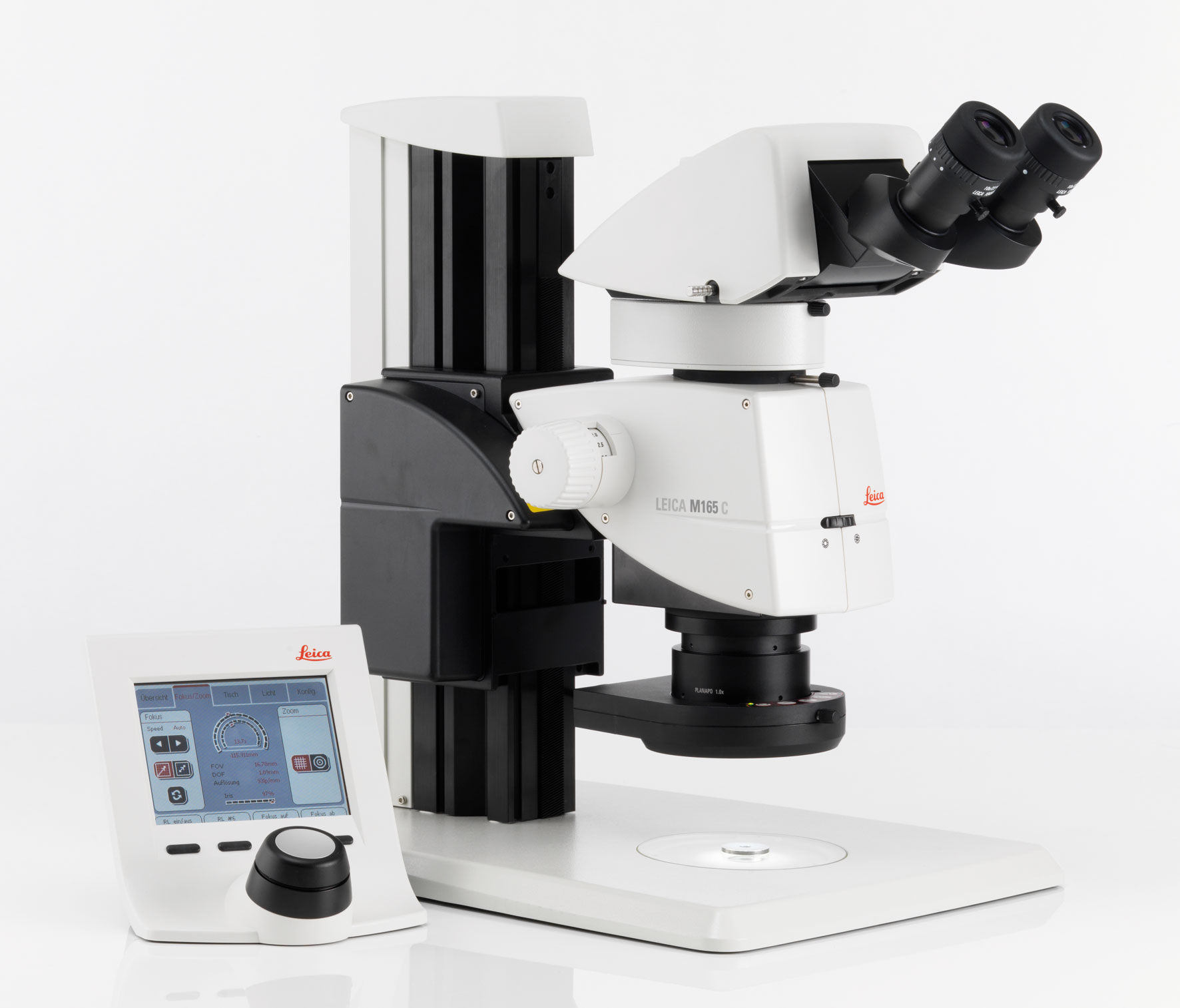

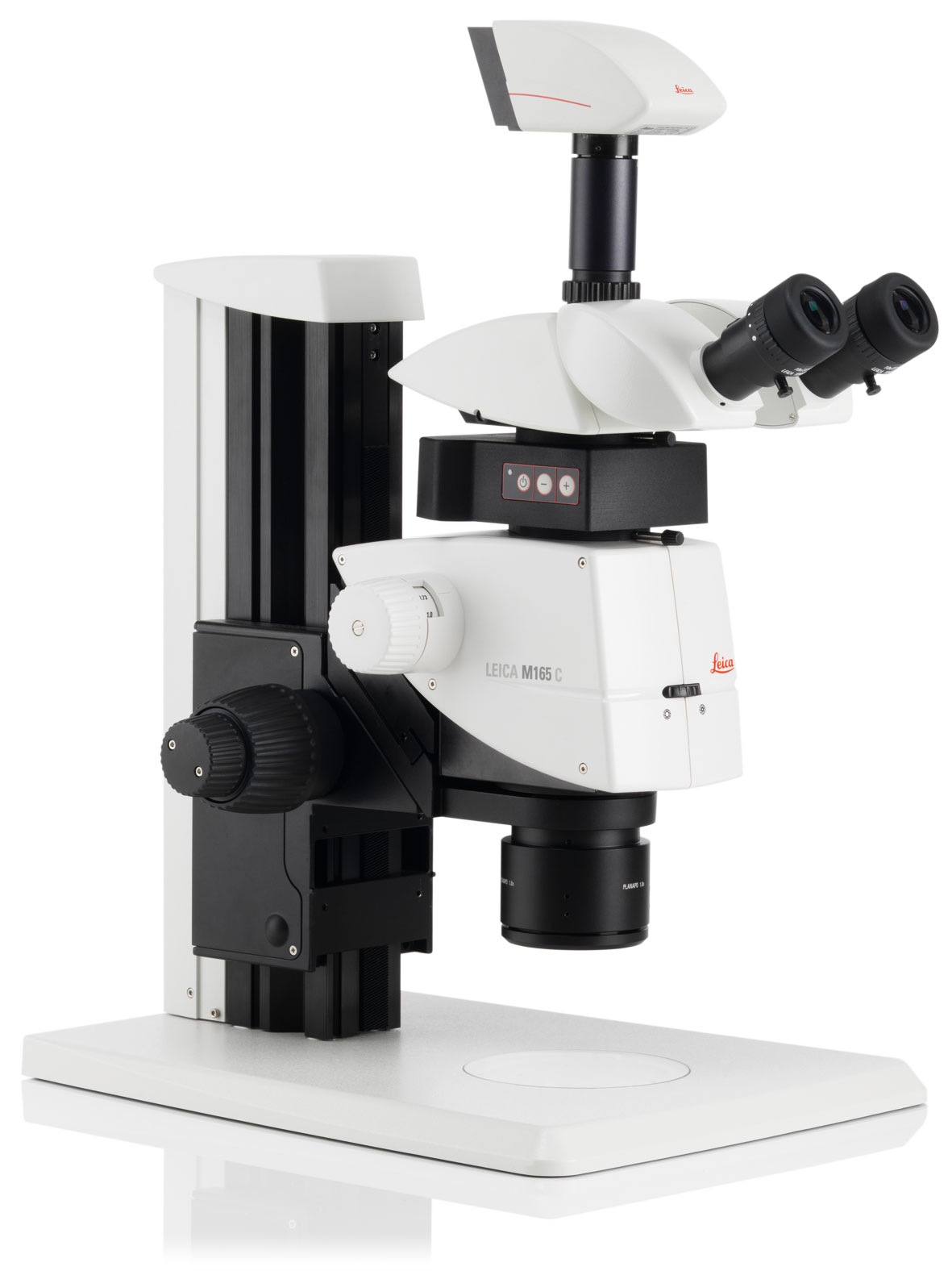

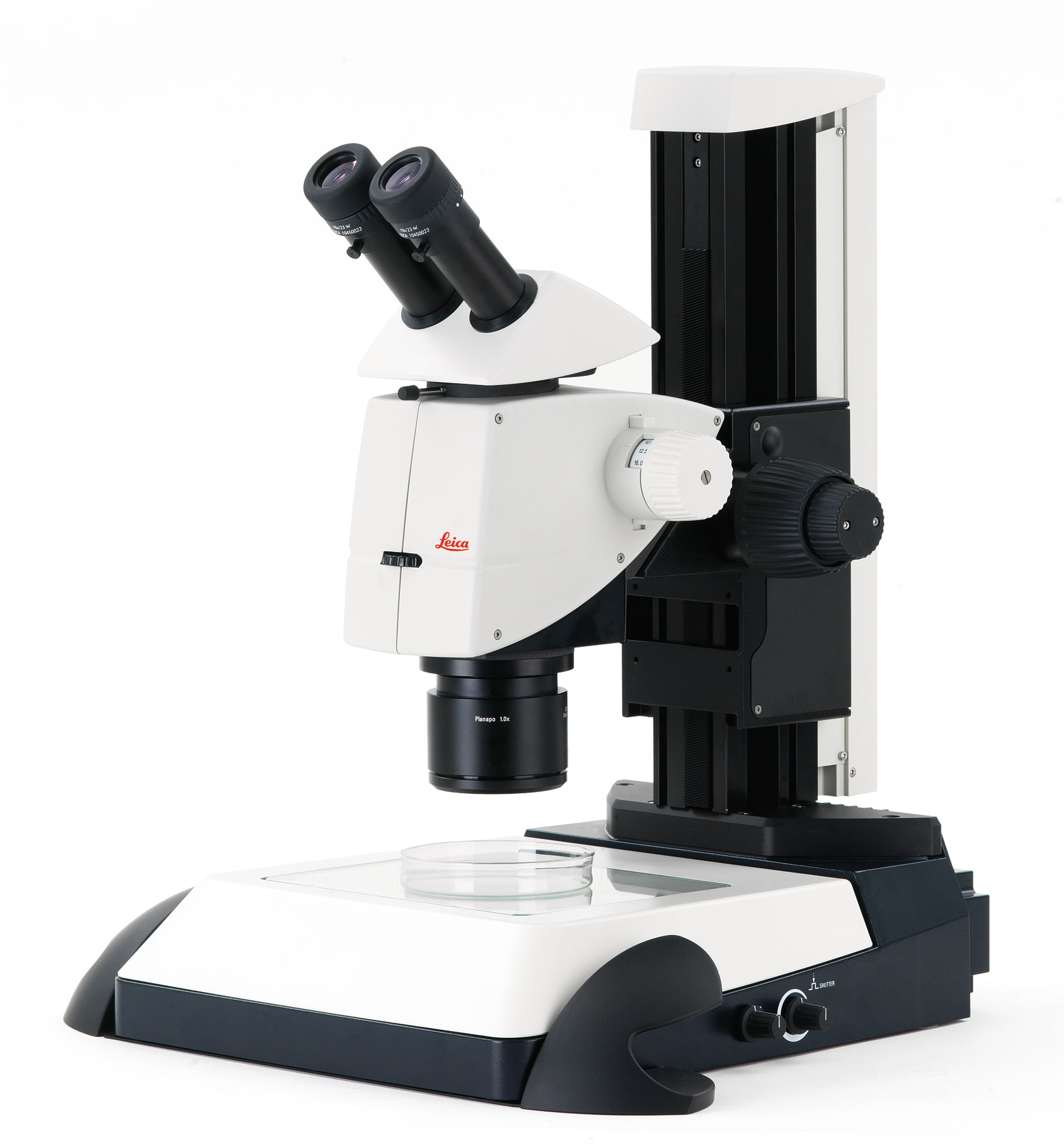

Leica M125 C Encoded Stereo Microscope
Item#: M125 CThe Leica coded stereo microscopes M125 C, M205 C and M205 A help you to pave the way to correct results with high-quality images that allow measurements and can be accurately repeated with minimal effort.
- Image coding is the smart way to reproduce settings for easy documentation and consistent reporting. The microscope encoding transmits both the magnification and the position of the iris diaphragm in real time to the software.
- A scale bar is superimposed on the image and adjusted with changing magnification. When you store an image, key system parameters are saved with it.
- Reliable results even from inexperienced operators
- Change settings without manually adjusting the calibration
- Easily acquire calibrated images for comparable results and consistent documentation
- Rely on award-winning objectives with great optical performance for high quality images
- Obtain high resolution with maximum depth of field. The revolutionary FusionOptics technology featured in the Leica M205 reveals the finest details
- Further enhance your resolution up to 1050 lp/mm with the 2.0x PlanApo objective
- Increase productivity of your users by creating ergonomic microscope solutions
- Ergo accessories help to work accurately and efficiently
- Choose from the powerful range of Leica illumination to discover the details you have been missing
- Acquire images with Leica digital cameras to share your results
- 12.5:1 zoom
- 8x to 100x magnification
- up to 864 lp/mm resolution (with 2.0x objective)
- Typical applications:
- Medical device manufacturing
- Semiconductor inspection
- Materials science
Leica Microsystems - Company Video
Request a Proposal
Related Products
-
Leica M50, M60 and M80 Routine Stereo Microscopes
Item #: M Series Stereo Microscopes VIEW PRODUCT -
Leica A60 F & A60 S Industrial Stereo Microscopes
Item #: A60F-S VIEW PRODUCT -
Leica M205 C & M205 A Encoded Stereo Microscope
Item #: M205 VIEW PRODUCT -
Leica DM3000LED Ergonomic System Microscopes With Intelligent Automation
Item #: DM3000LED VIEW PRODUCT -
Leica Ivesta 3 Greenough Stereo Inspection Microscopes
Item #: IVESTA-3 VIEW PRODUCT -

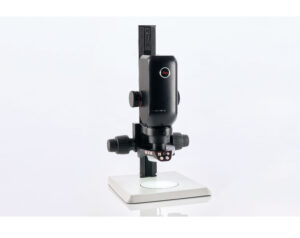

Leica Emspira 3 Digital Inspection Microscope
Item #: EMSPIRA-3 VIEW PRODUCT -

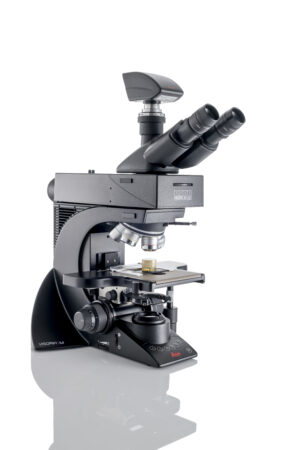

Leica Visoria M Materials Microscope
Item #: VISORIA-M VIEW PRODUCT -

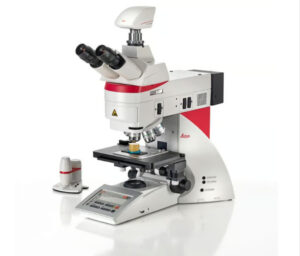

Leica DM4 B Automated Upright Microscope System for Life Science and Clinical Applications
