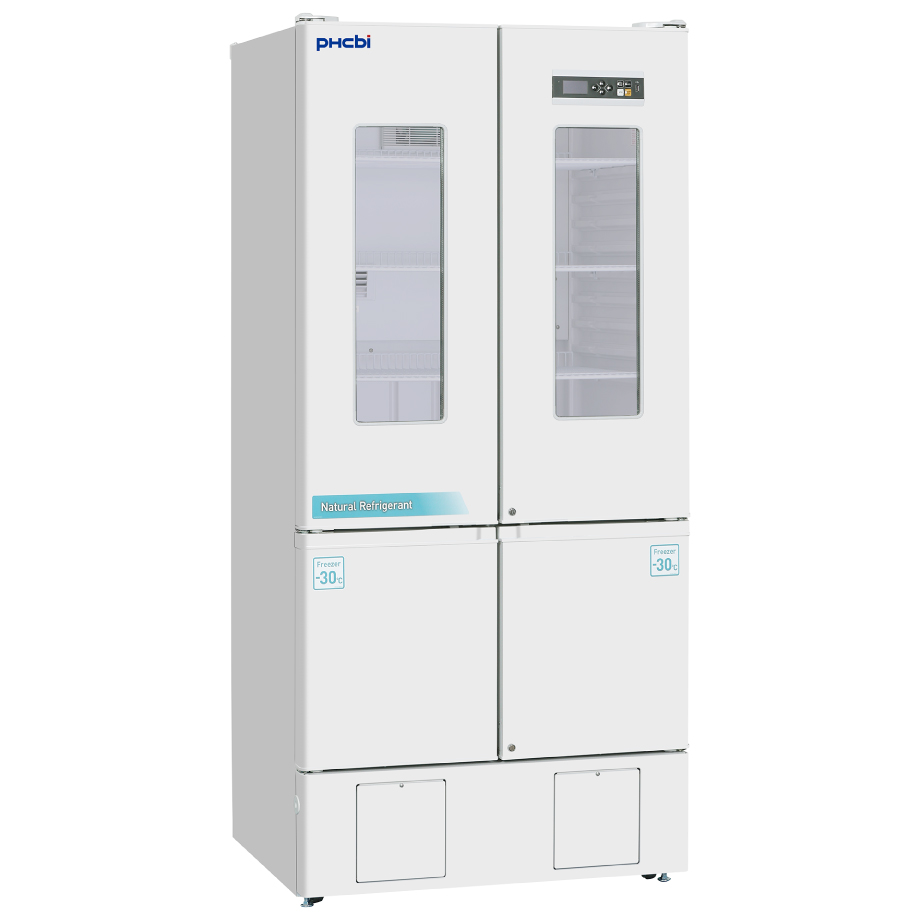

PHCbi MPR Series 23.2 Cu. Ft. Pharmaceutical Combo Refrigerator / Freezer | Hinged Glass Door

Independent Refrigeration Systems: Separate refrigeration systems and compressors allow for independent temperature controlled chambers. The freezer system maintains temperatures as low as -30°C, while the refrigerator system allows for a temperature between 2°C to 14°C. Compressors designed for quiet operation.

Security Control & Monitoring: The eye level, door-mounted microprocessor controller with softkey interface enables easy access. An OLED alphanumeric display provides convenient, secure user management. Refrigerator and freezer temperatures can be displayed together or individually, with minimum/maximum values viewable and resettable at 12 or 24-hour intervals. All alarm conditions are displayed and logged, and data can be transferred via USB.

Designed for Uniformity: Forced air circulation through a back wall plenum in the refrigerator provides even air distribution for precise temperature uniformity and efficient temperature recovery to setpoint quickly following routine door openings. The freezer is configured with a cold wall cooling system with external coils strategically positioned within the insulation for excellent  uniformity.

Natural Refrigerants: Natural hydrocarbon refrigerants are used to minimize environmental impact, helping facilities meet sustainability objectives without compromising cooling performance, ambient temperature tolerance, or recovery speed following door openings.

Easy to Use, Intuitive Operation: Standard features include adjustable audible and visual alarms, integrated system diagnostics, and predictive performance monitoring. The password-protected control panel enhances security and helps prevent accidental setpoint changes.

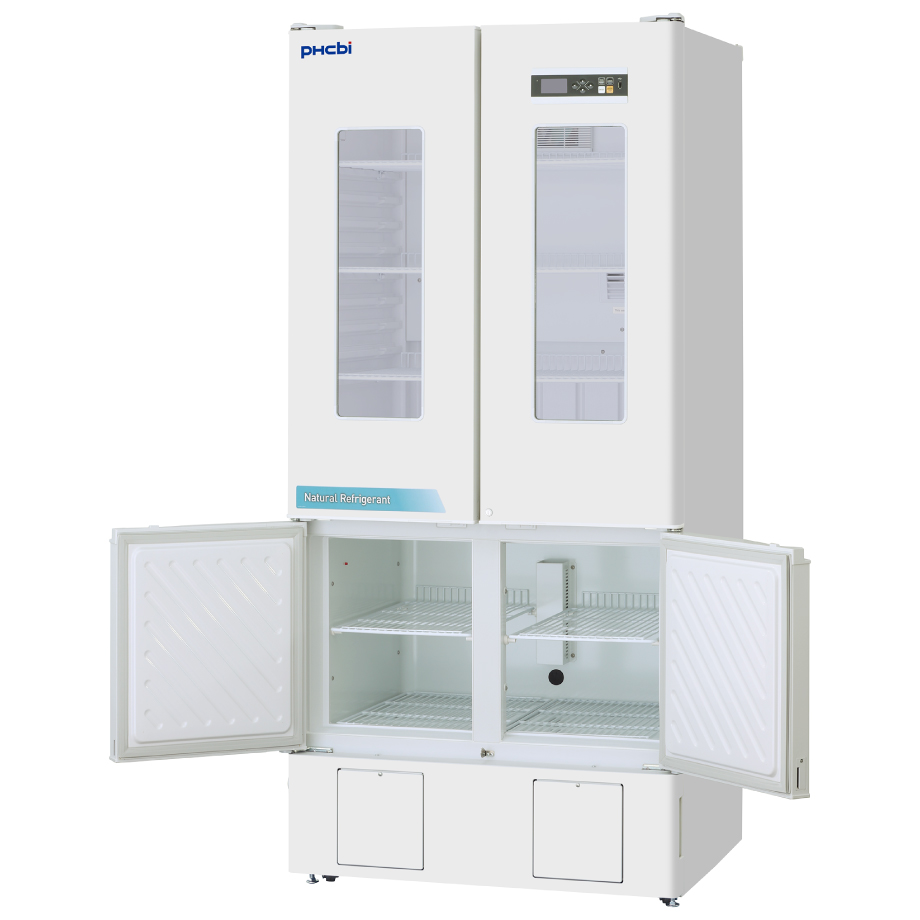

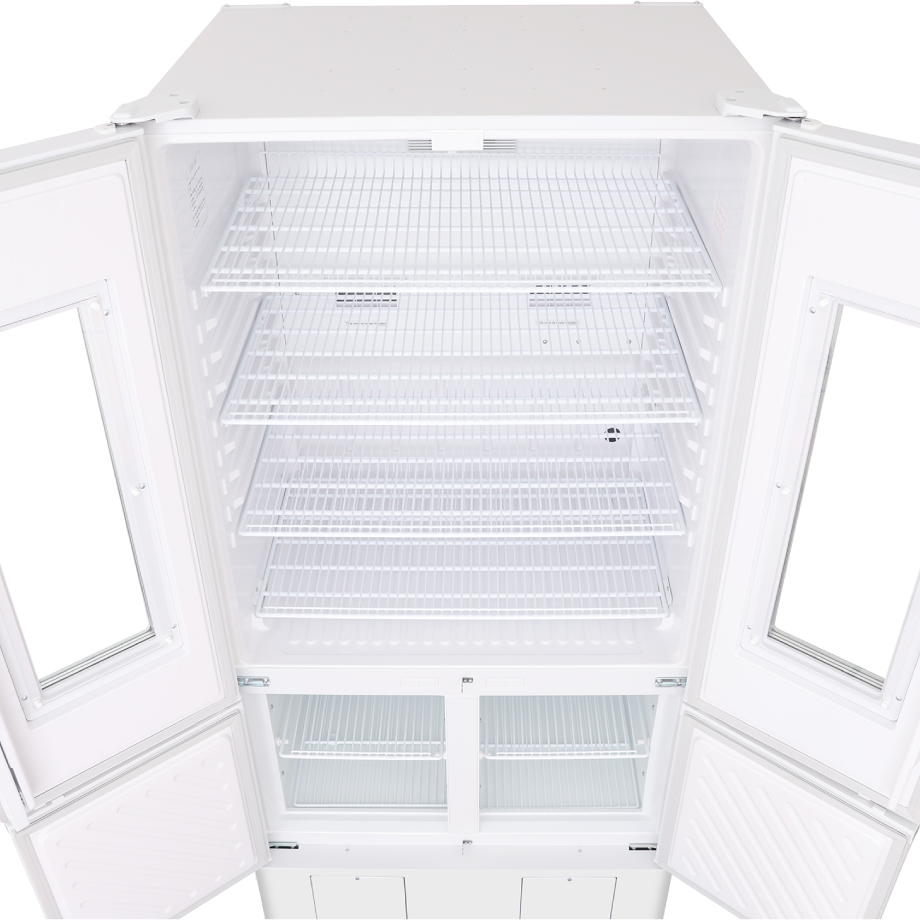

Access, Storage and Security: The refrigerator includes two insulated doors with triple pane glass viewing windows. Heat reflection film minimizes condensation from ambient humidity. The freezer has insulated solid doors. A keyed door lock assures inventory security. Refrigerator has three adjustable wire shelves and the freezer has two wire shelves with optional bins.

Smart Alarm Control for Gel Pack Cooling: A dedicated feature temporarily silences the freezer high temperature alarm—ideal for cooling gel packs or phase change materials that require extended pull-down time. This adds flexibility without compromising safety.

Defrost Methods: The freezer compartment uses manual defrost, while the refrigerator features automatic, electronically activated defrost as needed. The evaporator remains above freezing
at all times, helping prevent vaccines and lab supplies from freezing.
