- External Dimensions (W × D × H): 40.6" × 34.7" × 78.5" | 1030mm × 882mm × 1993mm
- Internal Dimensions (W × D × H): 34.3" × 23.6" × 55.1" | 870mm × 600mm × 1400mm
- Volume: 25.7 cu. ft. (729 liters)
- Net Weight: 608 lbs (276 kg)
- Capacity (2" boxes): qty 576
- Capacity (3" boxes): qty 384
- Inventory Racks (2" boxes): qty 24
- Inventory Racks (3" boxes): qty 24
- Temperature Control Range: 40°C to -86°C

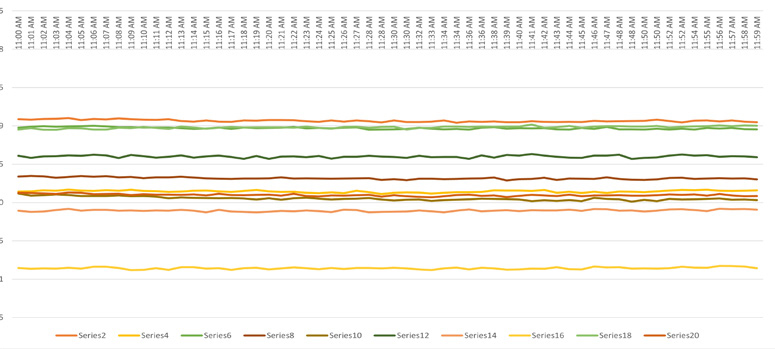

- Uniformity: +/-3°C (-80°C Set point)
- Power Consumption (kWh/Day): 5.4 (-80 °C Steady State)
- BTU Nominal: 768 Per Hour
- Noise Level: 52 dB(A)
- Power Supply: 115V, NEMA 5-15P, 60 Hz 8ft cord length
- Max Amps: 11
- Certification: QPS Listed and Energy Star
- Warranty: 5 years parts and labor
Control:
- Controller: Microprocessor with non-volatile memory, USB connectivity, IOT Ready
- Digital Temperature Display: LCD Touchscreen
- Controller Security: Screen lock w/ password protection, facial recognition, NFC
- Temperature Sensor: RTD
Refrigeration:
- Cooling Method: Cold Wall (Synchronized variable speed cascade system)
- Compressors (High Stage I Low Stage): 750 W Variable | 750 W Variable
- Refrigerant Type (Natural Refrigerant) High Stage I Low Stage: R-290 | R-170
- Insulation: Rigid polyurethane foam (PUF) + VIP Plus vacuum insulated panels
Construction:
- Exterior Material: Painted steel
- Interior Material: Painted steel
- Outer Door: qty 1 lock with set of 2 keys and electronic lock (provision for optional pad lock)
- Inner Doors: qty 2 insulated stainless steel with latch
- Shelves: qty 3 (adjustable)
- Shelf Dimensions (W × D): 33.7" × 21" (855 × 534mm)
- Max. Load per Shelf: 110 lbs (50 kg)
- Access Ports, Qty, Position, Diameter: qty 3: upper wall (back-up system), bottom left (recorder sensor), bottom right (access) 0.6 in | 17mm
- Casters | Leveling Legs: qty 4 | 2
- Vacuum Release: qty 1 Auto
