Name: Ohaus Frontier™ High Speed Micro Centrifuge FC5515R | 21,953g | 120V
Brand: Ohaus
SKU: 83042058
Availability: InStock

Ohaus Frontier™ High Speed Micro Centrifuge FC5515R | 21,953g | 120V

Item#: 83042058

The OHAUS Frontier™ 5515 and 5515R Benchtop Micro Centrifuges provide high-speed operation for a wide variety of tube volumes and capacities. With refrigeration capabilities (FC5515R), 10 acceleration/deceleration settings and multiple safety features, the FC5515 and FC5515R ensure stable liquid separation for applications requiring high-speed operation in molecular and cell biology, clinical, research and industrial applications.

~~$8,125.00~~ $6,906.25

REQUEST PROPOSAL

Supplier: Ohaus

Speed Range: 200 rpm – 15200 rpm (10 rpm / increments)
Maximum Relative Centrifuge Force (x g): 21,953 g (10 rpm / increments)
Maximum Capacity (rotor): 44 x 1.5 / 2.0ml; 12 x 5 ml
Refrigeration Range: -20 °C to 40 °C (1 °C/increments)
Ambient temperature: 5 °C up to 35 °C
Max. relative humidity: Max. relative humidity 80 % for temperatures up to 31 °C/Decreasing linearly to 50 % relative humidity up to 35 °C.
Refrigerant: R290 (Propane)
Running Time: Quick Spin, 10 sec to 99 hr 59 min, or continuous
Noise Level: ≤57±2 dB(A)
Acc/Dec Levels: 10/10
Allowable Density at Maximum Speed: 1.2 g/ml
Allowable Kinetic Energy: 7204 Nm
AC Power: 120 V/50-60 Hz
Voltage Fluctuation: ± 10%
Current Consumption: 5.1A
Power Consumption: 560W
Dimensions (WxDxH): 11.0 x 21.9 x 11.3 in (280 x 555 x 287 mm)
Shipping Dimensions (WxDxH): 15.4 x 27.2 x 15.4 in (390 x 690 x 390 mm)
Net Weight (without rotor): 77 lb/35 kg
Shipping Weight (without rotor): 97 lb/44 kg
For indoor use only
Use up to an altitude of 2000 m

*Not suitable for use in hazardous environments.

Excellent functionality when used with rotors compatible with high throughput and BIOSEALS options for 1.5/2.0 ml or 5 ml microtubes, spin columns, and cryo tubes. Additionally, when equipped with the appropriate rotor options, these centrifuges can also be used in diagnostic settings for hematocrit capillaries and PCR tubes/strips.
Designed for ease of operation, Frontier Micro centrifuges feature convenient control on an intuitive interface, which allows for responsive operation – even when wearing gloves.
Enclosing all their functionalities within a small footprint, Frontier Micro centrifuges save valuable space on the lab bench.
Easy-to-turn rotary knob for parameter adjustments
Waterproof keypad provides protection that helps significantly increase the lifespan of the product
One-touch toggling between speed, G-force, and temperature controls (R model only)
LCD display with light blue backlight which projects information in real time
View and adjust user parameters from the main screen; no need to navigate through sub-screens
Powerful induction motor reaches speeds up to 15200 RPM in less than 16 seconds
Maximum G-force of 21953 RCF
10 acceleration/deceleration settings
99 memory sets to quickly store and recall commonly used parameters
FC5515R model has refrigeration capabilities from 40 °C to -20 °C
- Cools down from 23 °C to 4 °C in less than 10 minutes
- R290, an environmentally friendly coolant, contributes to the eco-friendliness of refrigerated centrifuges by minimizing their environmental impact and supporting efforts to combat global warming
- Pre-cool feature quickly lowers the temperature of rotor and chamber before a run
Motorized lid-locking system prevents centrifuge from opening during operation
Rotor imbalance sensing systems stops the unit when it detects an imbalanced load
Sealed and TÜV certified rotors to safeguard operators from harmful aerosols
Works with microtube rotors with different rotor capacity – 24 x 1.5/2.0 ml, 30 x 1.5/2.0 ml or 44 x 1.5/2.0 ml

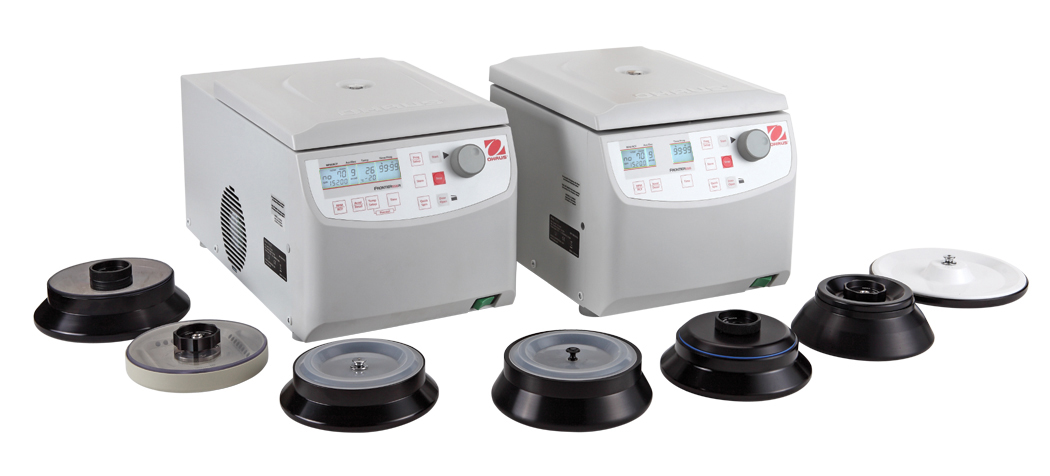

Compatible with 6 rotors (7 rotors on FC5515 model), including spin column rotor, hematocrit rotor, PCR Strips/tubes rotor and angle rotor for 5ml tubes
An ergonomically designed rotors for microtubes, spin columns and PCR Stripes/tubes quickly and easily closes with 1/4 of a turn
