Name: Ohaus Frontier™ High Speed Micro Centrifuge FC5513R | 120V | 17,157 g
Brand: Ohaus
SKU: 83042060
Availability: InStock

Ohaus Frontier™ High Speed Micro Centrifuge FC5513R | 120V | 17,157 g

Item#: 83042060

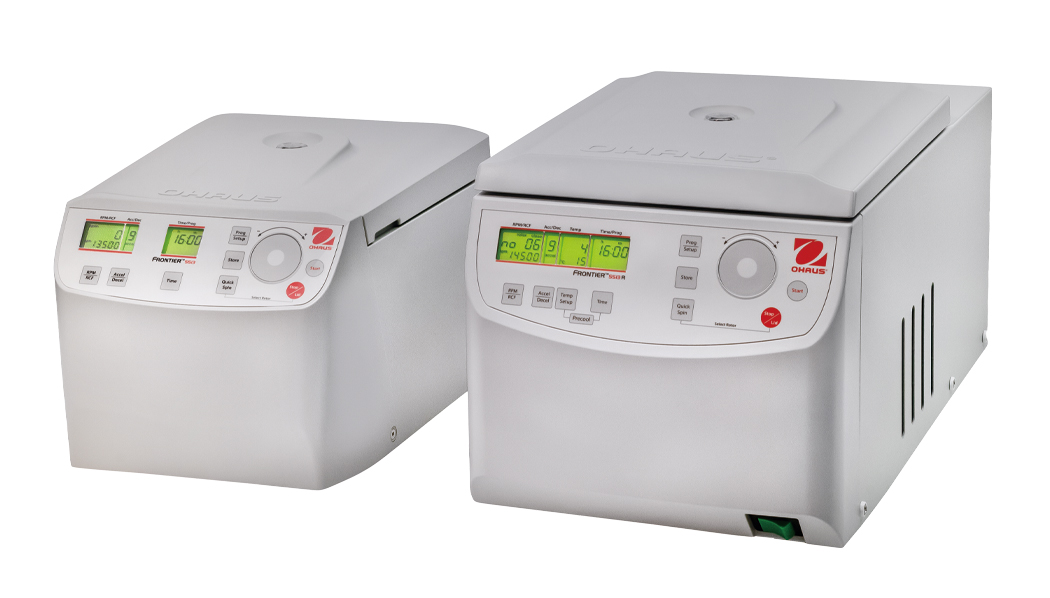

The Ohaus Frontier 5513 and 5513R Benchtop Micro Centrifuges, as high-speed centrifuges, are capable of generating approximately 17000 x g. With refrigeration capabilities (FC5513R), five optional rotors are designed for clinical, industrial, and research applications. Engineered with convenient operation in mind, FC5513 and FC5513R feature a uniquely designed splash-proof front panel with touch-wheel control on an intuitive interface. The compact design saves valuable bench space in the lab.

~~$6,171.00~~ $5,245.35

REQUEST PROPOSAL

Supplier: Ohaus

Speed Range: 200 rpm – 14500 rpm (10 rpm / increments)
Maximum Relative Centrifuge Force (x g): 17,157 g (10 rpm / increments)
Maximum Capacity (rotor): Angle Rotor- 24 x 1.5/2.0 ml
Temperature Range: -20 °C to 40 °C (1 °C/increments)
Ambient temperature: 5 °C up to 35 °C
Max. relative humidity: Max. relative humidity 80% for temperatures up to 31 °C/Decreasing linearly to 50% relative humidity up to 35 °C.
Refrigerant: R290 (Propane)
Running Time: Quick Spin, 10 sec to 99 hr 59 min, or continuous
Noise Level: ≤56±2 dB(A)
Acc/Dec Levels: 10/10
Allowable Density at Maximum Speed: 1.2 g/ml
Allowable Kinetic Energy: 2266 Nm
AC Power: 120 V/50-60 Hz
Voltage Fluctuation: ± 10%
Current Consumption: 1.9A
Power Consumption: 320W
Dimensions (WxDxH): 11.0 x 21.9 x 11.3 in (280 x 555 x 287 mm)
Shipping Dimensions (WxDxH): 15.4 x 27.2 x 15.4 in (390 x 690 x 390 mm)
Net Weight (without rotor): 77 lb/35 kg
Shipping Weight (without rotor): 83.5 lb/38 kg
For indoor use only
Use up to an altitude of 2000 m

*Not suitable for use in hazardous environments.

Easy-to-Use touch-wheel interface for parameter adjustments
Convenient interface shows both set and actual parameters
One-touch toggling between RPM/RCF, Acc/Dec
Crisp display on a double-line LCD display with light blue backlight
True splash-proof panel protects the centrifuge from accidental sample spilling
Maintenance-free induction motor produces maximum G-force of 17317 x g for FC5513 and 17157 x g for FC5513R
Speeds up to 13500 rpm in less than 15 seconds with 24 x 1.5/2.0 ml rotor
10 acceleration/deceleration settings
99 memory sets to quickly store and recall commonly used parameters
FC5513R model has refrigeration capabilities from 40°C to -20°C
- R290, an environmentally friendly coolant, contributes to the eco-friendliness of refrigerated centrifuges by minimizing their environmental impact and supporting efforts to combat global warming
- Pre-cool feature in quickly lowers the temperature of rotor and chamber before a run
Works with microtube rotors with different rotor capacity – 18 x 1.5/2.0 ml or 24 x 1.5/2.0 ml
Compatible with up to 7 rotor option and maximum rotor capacity of 24 x 1.5/2.0 ml
Support spin-column and hematocrit capillary tubes through additional rotor options
Sealed and TÜV certified rotors to safeguard operators from harmful aerosols
Rotor imbalance sensing systems stops the unit when it detects an imbalanced load
Lid-locking system prevents centrifuge from opening during operation (FC5513R)
