- Capacity: 82g / 120g
- Readability(d), Fine Range: 0.01 mg
- Repeatability(d), Full Range: 0.1 mg
- Repeatability (sd.), ≤5% of Full Load Typical: 0.01 mg
- Repeatability (sd.), 5% of Full Load to Fine Range Max: 0.02mg
- Repeatability (sd. ), Fine Range Max to Full Range: 0.1mg
- Linearity Deviation Typical: 0.06 mg
- Linearity Deviation: 0.2mg
- Span Calibration Points: 25g, 50g, 75g, 100g
- Weighing Units: g, mg, ct, N, oz, ozt, Grain, dwt, mo, msg, tcl, tola, baht, Custom 1, Custom 2
- Applications: Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold
- Stabilization Time (typical):
- 0.1 mg: ≤2 seconds
- 0.01 mg: ≤ 5 seconds
- Sensitivity Temperature Drift (ppm/℃): 0.8
- Min-Weight (typical) (K=2, U=1%): 2 mg
- Min-Weight (typical) (USP, K=2, U=0.10%): 20 mg
- Min-Weight (optimal) (USP, K=2, U=0.10%, SRP≤0.41d): 8.2 mg
- Terminal Display: 7-inch TFT 16.7M Color Touch Screen with Glass Overlay, Detachable Terminal
- Display Resolution: 800 x 480 Pixels
- Communication:
- USB Host (Type A) x 2, USB Device (Type C) x 1
- Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle
- Leveling System: 2 Leveling Feet with Digital Leveling Bubble
- Power Supply:
- AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz
- AC Adapter Output: 12 VDC 1.5A
- Weighing Pan Size: Aero Pan 80mm x 80mm
- Touchless Sensor: 2 Touchless Sensors on the terminal
- Draftshield with anti-static coating: Standard
- Terminal Status Lights Standard, 7-color Selectable
- Assembled Dimensions (W x D x H): 230mm x 393mm x 370mm
- Shipping Dimensions (W x D x H): 415mm x 630mm x 561mm
- Net Weight: 7.4 kg
- Shipping Weight: 10.2 kg

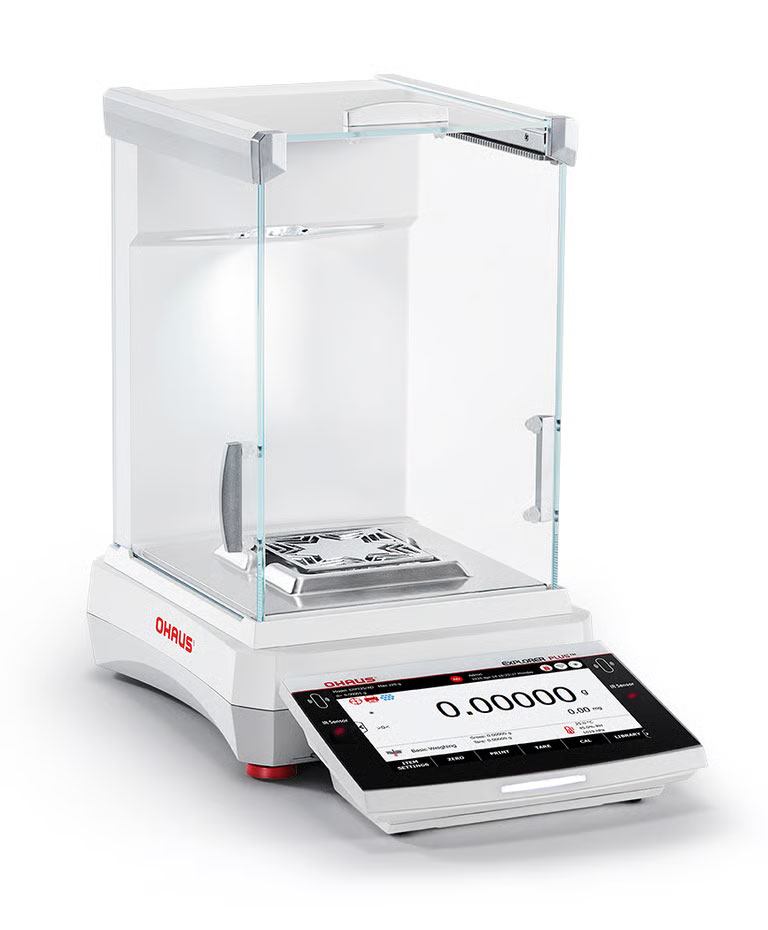

Ohaus Explorer® EXR125D Semi-Micro Balance, 82g/120g Capacity
Item#: 31059206The Ohaus Explorer® EXR125D Semi-Micro Balance sets a new benchmark for precision in laboratory weighing. Designed for superior accuracy, it offers dual capacities of 82 g and 120 g, providing flexibility for a variety of applications. The EXR series combines exceptional weighing performance with an intuitive touchscreen interface that simplifies complex measurements. Built with an environmentally conscious design, the Explorer minimizes energy consumption without compromising reliability. As part of the next generation of Ohaus balances, the EXR125D enhances efficiency and consistency, making it an essential tool for high-precision laboratory operations.
$8,021.00 $6,817.85
- High Performance Weighing- Achieve consistent results with built-in automatic calibration, touchless sensors and a ventilated weighing pan. Get reliable data with the digital high-speed load cell.
- Refined User Experience- An intuitive 7-inch glass touchscreen, digital leveling, and simplified data management is easy to use. With an effortless installation and chemical-protective
design it ensures efficiency and comfort. - Effective Communication Options- Supports HID connection to PC or keyboard without drivers, and provides 2-way communication with RS232, USB, Ethernet, Bluetooth, and WiFi for seamless data transfer.
- Product Safety: IEC/EN 61010-1; CAN/CSA C22.2 61010-1; UL 61010-1
- Electromagnetic Compatibility: IEC/EN 61326-1 Class B, Basic Environments; FCC Part 15 Class A; Canada ICES-003 Class A
