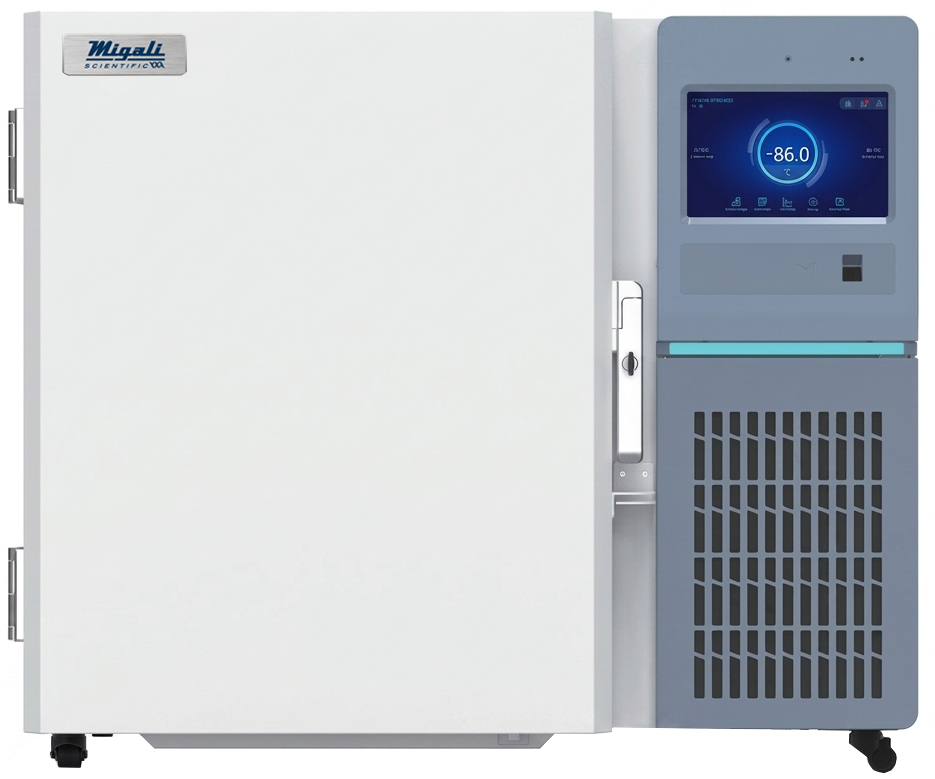

Migali EVO-U39-ULTA High Performance -86C Ultra-low Temperature Freezer | 3.9 cu. ft. (110 Liters)
Migali EVO-U39-ULTA High Performance -86C Ultra-low Temperature Freezer | 3.9 cu. ft. (110 Liters)

Migali EVO-U39-ULTA High Performance -86C Ultra-low Temperature Freezer | 3.9 cu. ft. (110 Liters)

Item#: EVO-U39-ULTA

Migali EVO-U39-ULTA High Performance -86°C Ultra-Low Temperature Freezer provides reliable ultra-low temperature storage in a compact 3.9 cu. ft. undercounter design, making it ideal for laboratories, research facilities, biobanks, and clinical environments where space is limited. Its dual variable-speed cascade refrigeration system delivers exceptional temperature uniformity and rapid recovery while consuming just 4.48 kWh/day, helping reduce operating costs without compromising sample protection. The 10-inch UltraVU™ full-color touchscreen offers intuitive monitoring with interactive temperature graphing, USB data logging, and comprehensive alarm management, while a glycol-filled product simulator provides accurate sample temperature monitoring. Built with vacuum insulated panels (VIP), a keyed door lock, optional electronic access, four-hour battery backup, and a 5-year compressor, parts, and labor warranty, this freezer delivers dependable performance for protecting valuable biological samples.

$10,116.00 $7,785.00

Add to wishlist
REQUEST PROPOSAL
Supplier:
  • Cabinet Type: Upright
  • Capacity: 3.9 cu ft (110 L)
  • Internal Size (W*D*H): 37.6" W x 26.1" D x 32.1"H
  • External Size(W*D*H): 17.13"W x 16.77" D x 22.91"H
  • Net Weight (lbs): 263
  • Shipping Weight (lbs): 304
  • Insulation: Vacuum Insulated Panels (VIP) & Polyurethane
  • Exterior & Interior Finish: Powder Coated Steel
  • Casters: 4
  • Doors: 1 Hinged, Solid Door
  • Access Port: Yes
  • Shelves: 1, Stainless Steel
  • LED Health Light: Yes - Green Ok / Yellow Warning / Red Urgent
    Powder
  • Temperature Range: -40~-86℃
  • Set-Point: -80℃
  • Refrigeration System: Direct Cooling, Cascade
  • Compressor: Variable Speed, 2,000 to 4,500 RPM
  • Condenser Type: Finned Condenser
  • Expansion Device: Capillary Tube
  • Evaporator Type: Cold Wall
  • Defrost Method: Manual
  • Refrigerant: R600a / R1150 / R50
  • Uniformity | °C: (+/-) 1.6
  • Recovery to -80°C after 1 min door opening | min: 17.5
  • Stability | °C: 2
  • Energy consumption | kWh/day: 4.48
  • Noise emission | dB: 47
  • Pull-down time to -80°C | min: 103
  • Amperage: 9.4
  • Electrical Power: 115 V
  • Facility Supply Rating: Branch circuit with earth ground, compliant with plug ratings and local electrical codes. 110-120V AC: 20 A (minimum)
  • Power Plug/Power Cord Length: NEMA 5-20P; 8.2ft Cord
  • Certifications: UL
  • Application Environment: Non-hazardous
  • Ambient Temperature & R.H.: 80°F / 27°C / 55% R.H.
  • Warranty: 5 years compressor, 5 years parts, 5 year labor

*Clearance Requirements Minimum of 3” behind back and along sides of unit for proper ventilation

  • Premium -86°C performance in a compact undercounter design
  • User Interface: UltraVU™ 10 inch full color touch screen
  • Power Switch: On/Off
  • Controller Type: Custom Machine Microprocessor
  • Control Sensor: PT-1000
  • Communication Port: Remote alarm dry contacts
  • Access: Log Yes
  • Interactive Temperature Graph: Yes
  • Product Simulator: Yes, Glycol Solution
  • Battery Backup: Yes, 4 hours for alarm and data logger
  • Advanced Monitoring:
    • Large 10-inch UltraVU™ full-color touchscreen
    • Interactive temperature graphing
    • USB data logging with up to 12 months of exportable data
    • Comprehensive alarm package:
      • High/Low Temperature
      • Power Failure
      • Door Ajar
    • Four-hour battery backup for alarms and data logging
    • Product simulator using glycol solution for accurate sample temperature monitoring
  • Keyed door lock
  • Padlock-compatible latch
  • Password-protected access
  • Optional electronic access with PIN, fingerprint, or ID card authentication
  • Vacuum Insulated Panels (VIP) with polyurethane insulation
  • Compact footprint fits beneath standard laboratory benches

Migali EVO-U39-ULTA Ultra Low Freezer Datasheet

Download
