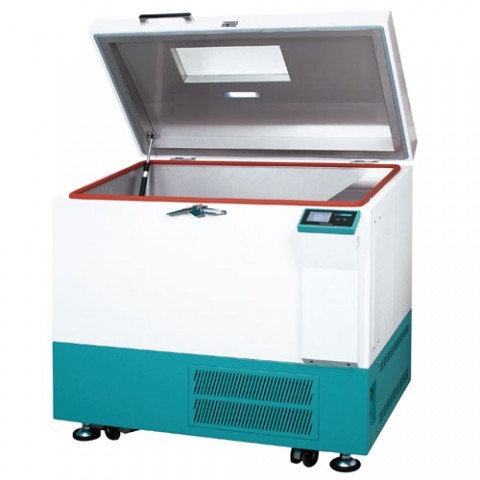

Jeio Tech ISF-7200 Large Capacity Floor Standing Incubated Shaker
Jeio Tech ISF-7200 Large Capacity Floor Standing Incubated Shaker

Jeio Tech ISF-7200 Large Capacity Floor Standing Incubated Shaker

Item#: AAH23475U

The ISF-7200 Large capacity floor standing incubated shaker from Jeio Tech provides up to five 6L flasks and offers heavy workload shaking with rapid heating and cooling performance.

REQUEST PROPOSAL
Supplier:
  • Temperature:
    • Range (°C / °F): Amb. +5 to 80 / Amb. +9 to 176
    • Fluctuation at 37°C (±°C / °F) in flask 0.1 / 0.18
    • Variation at 37°C (±°C / °F) in flask 0.5 / 0.90
  • Shaking system
    • Motion type: Orbital
    • Speed range (rpm): 30 to 300
    • Max. speed per permissible load (rpm): 300 (max. 20 kg / 44.1 Ibs), 200 (max. 35 kg / 77.2 Ibs)
    • Amplitude size (mm / inch, dia.): 50.8 / 2
    • Speed stability (rpm, %): ±1
    • Timer (count-down): 999 hr 59 min.
  • Dimension
    • Chamber volume (L / cu ft) 270 / 9.5
    • Platform (W x D, mm / inch) 755 x 520 / 29.7 x 20.5
    • Interior (W x D x H, mm / inch) 894 x 634 x 480 / 35.2 x 25 x 18.9
    • Exterior (W x D x H, mm / inch) 1128 x 854 x 1035 / 44.4 x 33.6 x 40.8
  • Net weight (Kg / lbs) 277 / 610.7
  • Electrical requirements (120V, A) 60Hz, 7.3
  • Structural Functional Features
    • Up to 80°C, 500rpm enables setting of various experimental conditions.
    • It is convenient for attaching and detaching a large amount of sample because structure of door is lowering from the rear to the front. (registration: 30-2014-0060254)
    • Three operating modes: Temperature & Shaking, Temperature, or Shaking.
    • Easy to move/fix the product.
    • Stable shaking of high-load samples.
      (patent registered: 10-1678160)
  • Use Convenience Features
    • Accurate rpm and temperature control through temperature auto-tuning / microprocessor PID and calibration.
    • Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system)
      (when purchased LC GreenBox)
    • Countdown timer (999 hours 59 minutes) of shaking operation.
    • Spill drain port for internal cleanliness and easy maintenance.
  • Outstanding Safety
    • Electronic over temperature protection system.
      (A-OT, advanced over temperature limiter)
    • Independent precision temperature sensor and controller provides more secure and reliable over temperature protection.
    • Conventional over-temperature protection system.
      (B-OT, backup over temperature limiter)
    • A backup device against electronic system failure, mechanically preventing over temperature even when there are electronic errors.
    • Soft start and stop shaking function.
    • Malfunction prevented by controller lock function.
    • Displays all information such as device operation and error occurrence.
    • Overcurrent protection device restricts operation when objects are caught inside the system and shaking is not possible.
  • Smart Self-diagnosis
    • Real-time self-diagnostics to check equipment for abnormal conditions.
    • Alarm is generated by monitoring difference between actual rpm/temperature and set rpm/temperature.
    • Automatic rpm adjustment when device instability occurs. (high rpm, overload, weight imbalance, etc.)
    • Detects abnormal conditions relating to the platform on which the sample is placed and stops the operation.
    • Automatic restart as it was operated after power recovery.
