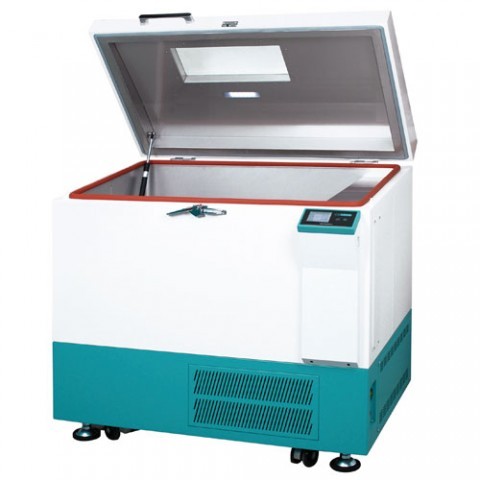

Jeio Tech ISF-7100R Large Capacity Floor Standing Incubated Shaker (Refrigerated)
Jeio Tech ISF-7100R Large Capacity Floor Standing Incubated Shaker (Refrigerated)

Jeio Tech ISF-7100R Large Capacity Floor Standing Incubated Shaker (Refrigerated)

Item#: AAH23575U
The ISF-7100R Large capacity floor standing incubated shaker from Jeio Tech provides up to five 6L flasks and offers heavy workload shaking with rapid heating and cooling performance.
REQUEST PROPOSAL
Supplier:
  • Chamber volume (L / cu ft): 270 / 9.5
  • Platform Dimensions (W x D, mm / inch): 755 x 520 / 29.7 x 20.5
  • Interior Dimensions (W x D x H, mm / inch): 894 x 634 x 480 / 35.2 x 25 x 18.9
  • Exterior Dimensions (W x D x H, mm / inch): 1128 x 854 x 1035 / 44.4 x 33.6 x 40.8
  • Net weight (Kg / lbs): 287 / 632.7
  • Electrical requirements (120V, A): 60Hz, 10
  • Temperature Range (℃ / ℉): Amb. -20 (Min. 4) to 80 / Amb. -36 (Min. 7.2) to 176
  • Temperature Fluctuation at 37℃ (±℃ / ℉) in flask: 0.1 / 0.18
  • Temperature Variation at 37℃ (±℃ / ℉) in flask: 0.5 / 0.90
  • Refrigerator (Hp): 1/6
  • Motion type: Orbital
  • Speed range (rpm): 30 to 500
  • Max. speed per permissible load (rpm):
    • 500 (max. 15 kg / 33.1 Ibs)
    • 400 (max. 25 kg / 55.1 Ibs)
    • 350 (max. 35 kg / 77.2 Ibs)
  • Amplitude size (mm / inch, dia.): 25.4 / 1
  • Speed stability2) (rpm, %): ±1
  • Timer (count-down): 999 hr 59 min.

Structural and Functional Features

  • High-capacity model designed for large volume incubated shaking.
  • The ISF floor-standing shaking incubator provides stable agitation, even with heavy-load samples, supported by patented shaking technology.
  • Equipped with a durable direct-drive motor backed by a 5-year warranty.
  • Supports diverse experimental conditions, with temperature settings up to 80°C and shaking speeds up to 500 rpm.
  • Patented low-front design makes loading and unloading large, heavy samples easier.
  • Structural design allows easy movement and secure fixation.
  • Countdown timer for agitation control, adjustable up to 999 hours and 59 minutes.

Outstanding Safety Features

  • Advanced electronic over-temperature protection system (A-OT) uses an independent precision temperature sensor and controller for safe, reliable temperature cutoff.
  • Backup mechanical over-temperature protection system (B-OT) cuts off excessive heat even in the event of electronic system failure or error.
  • Soft start and stop function provides smoother and safer agitation.
  • Controller lock helps prevent accidental operation.
  • Status display shows operating conditions, system status, and error alerts.
  • Over-current protection restricts operation if an obstruction is detected inside the system.

Smart Self-Diagnosis

  • Real-time alarm system monitors deviations between set and actual RPM/temperature values and triggers alerts when needed.
  • Automatically stops operation when the door is opened and activates an alarm after 3 minutes.
  • Auto-resume automatically restores the previous operating state after power is restored.
  • Sensor protection immediately stops operation if a temperature sensor issue is detected.

User-Friendly Features

  • Precise RPM and temperature control supported by auto-tuning, microprocessor PID control, and 3-point calibration.
  • Mobile monitoring anytime, anywhere through the LC Connected system and mobile app. Requires optional LC GreenBox.
  • FDA 21 CFR Part 11 compliance readiness through integration with optional LC DataKeeper, supporting GMP audit preparation.
  • Spill drain port for cleaner and easier maintenance.
  • Easy to attach and detach large volume sample thanks to the inclined lid structure.
