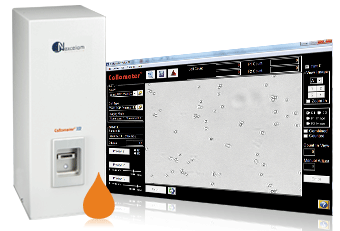

Cellometer X2 Fluorescent Viability Counter

Cellometer X2 Specifications

Includes	Cellometer X2 Instrument Cellometer Software Two Standard Fluorescence Optics Module Power Supply USB 2.0 Connection Cable Phone/online applications support during set-up
Available Accessories	PC Laptop
Imaging Performance	Cell Size: 0.5 – 15 microns Concentration Range: 5 x105 – 107 cells/ml Bright field imaging, fluorescent imaging and pattern-recognition software to quickly and accurately decluster, identify and count individual cells.
Instrument Specifications	Weight: 23.0 lbs. (10.4 kg) Dimensions: Width: 6.0” (15.2 cm), Depth: 8.5” (21.6 cm), Height: 14.0” (35.6 cm) Input to Power Adapter: 100-240 VAC, 50/60 Hz, 1.0A Output to Instrument: 12 VDC, 3.34A
PC / Laptop Minimum Requirements: (If purchasing Cellometer without PC laptop)	Windows 7, 8, or 10 2.2 GHz or higher processor 4GB RAM USB 2.0 port or higher Display resolution: 1024 x 768 pixels or higher Intel Mac with Parallels/Windows
Available Fluorescence Optics Modules	VC-535-403 Excitation / Emission: 470nm/535nm Example Fluorophores: Acridine Orange CFDA FITC VC-660-503 Excitation / Emission: 540nm/660nm Example Fluorophores: Propidium Iodide (PI) Ethidium Bromide 7-AAD

Features of the Cellometer X2 Image Cytometry System

Dual Fluorescence and Bright Field Imaging: staining of both live and dead cells in yeast samples

User-Friendly Software and Assay Selection: Enhanced inter-operator reproducibility, minimal training, auto-save option

Fast Results: Obtain cell images, counts, size measurements, and viability calculations in 60 seconds

Small Sample Size: Only 20 µl of sample

Broad Dynamic Range: Measurable concentration range of 2.5 x 105 to 5 x 107 cells/mL using Nexcelom’s proprietary de-clustering function

Many Compatible Dyes: Trypan blue, AO, PI, EB, 7AAD, AO/PI, AO/EB, Calcein AM, CFDA-AM, Calcein AM/PI, CFDA/PI

Cellometer X2 software features

Cell Counting Made Simple

The Cellometer X2 utilizes bright field imaging, fluorescent imaging and pattern-recognition software to quickly and accurately identify and count individual cells. Cell count, concentration, diameter, and % viability are automatically calculated and reported.

5x Faster than Manual Counting: Load sample, view image, count cells, and obtain results in < 60 seconds
