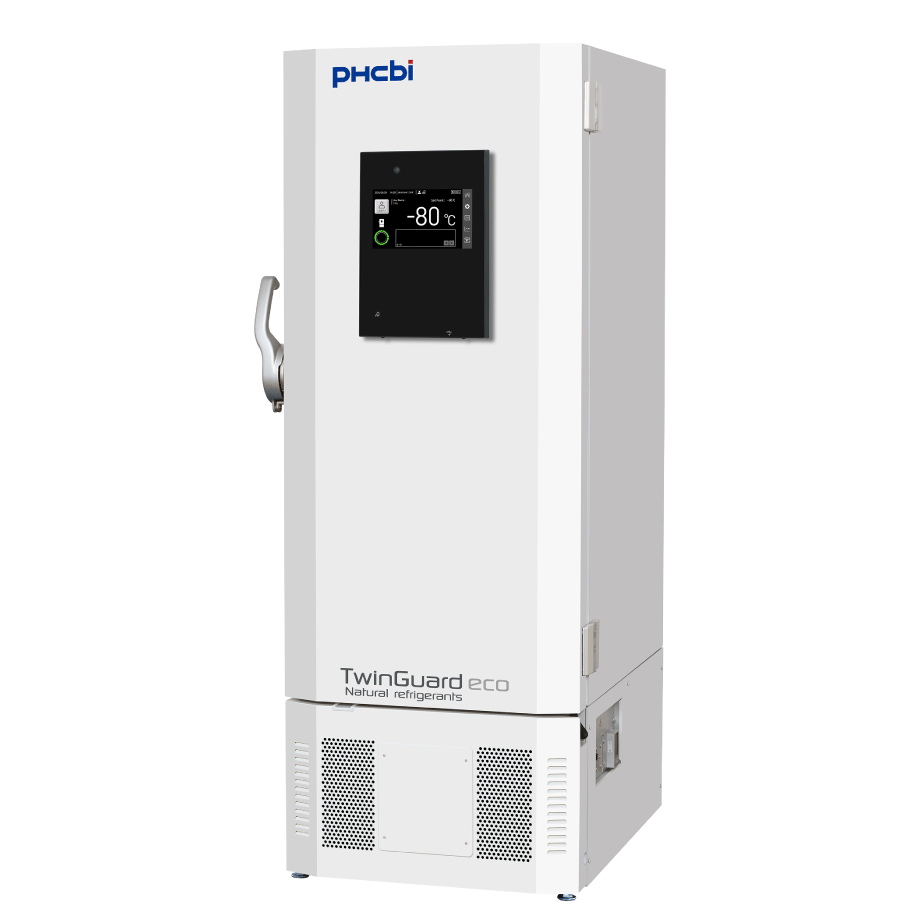

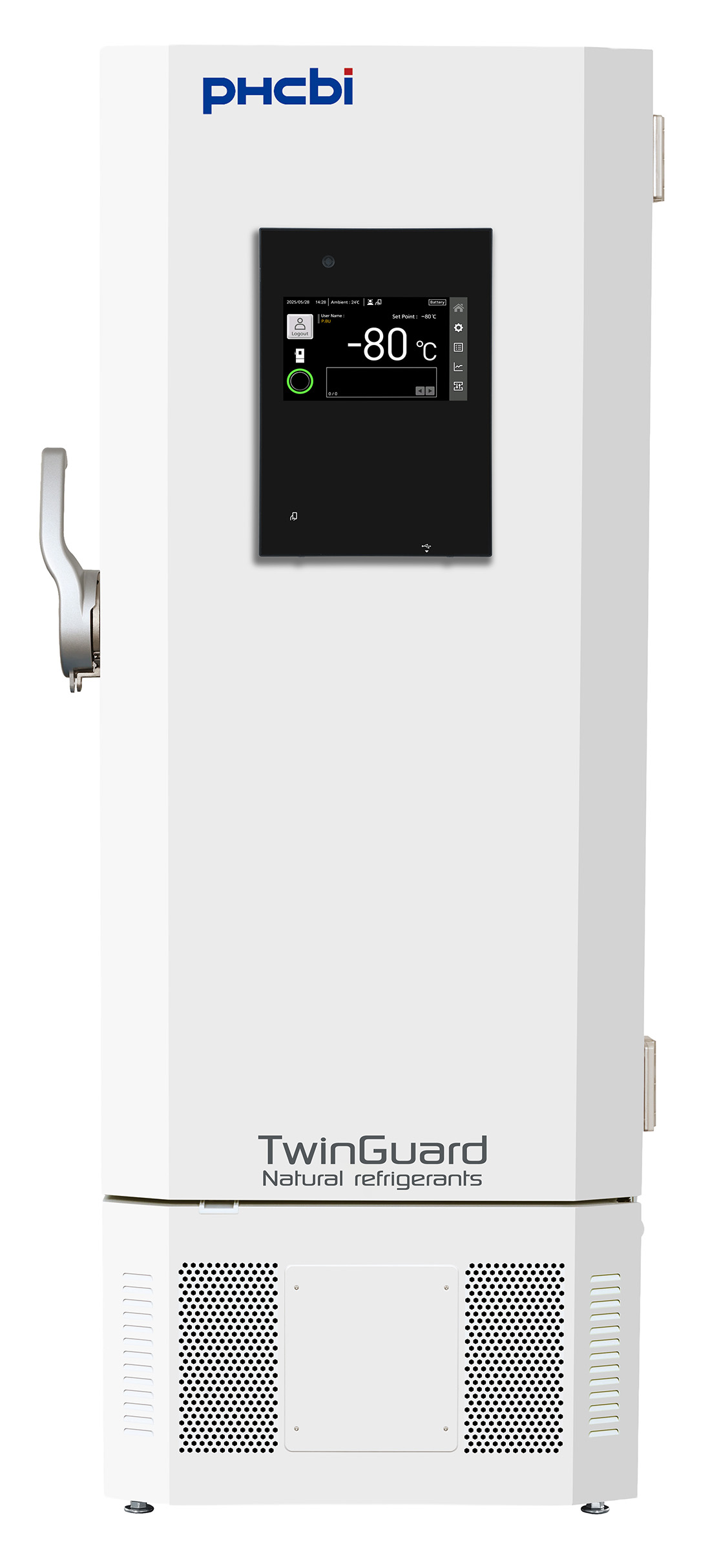

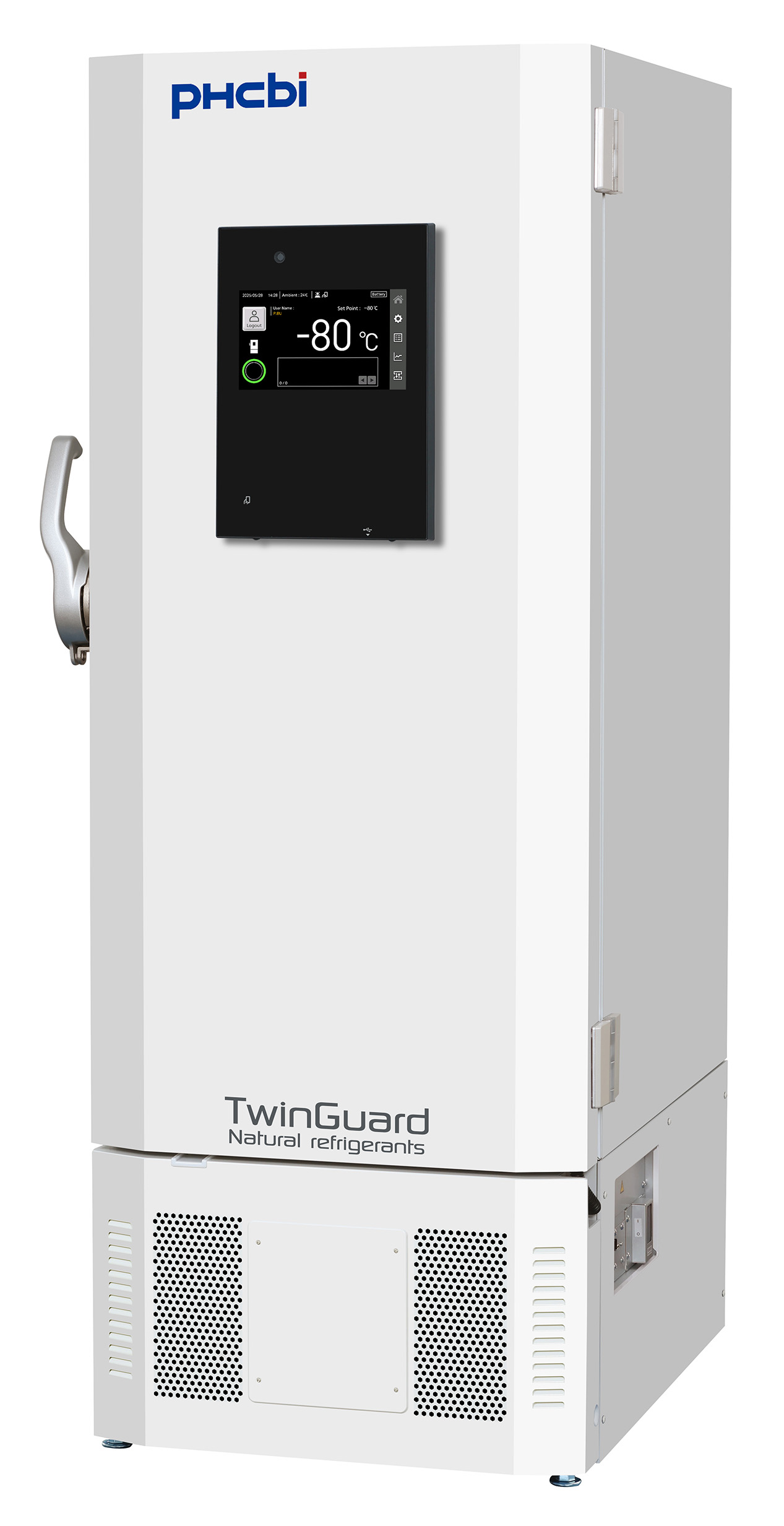

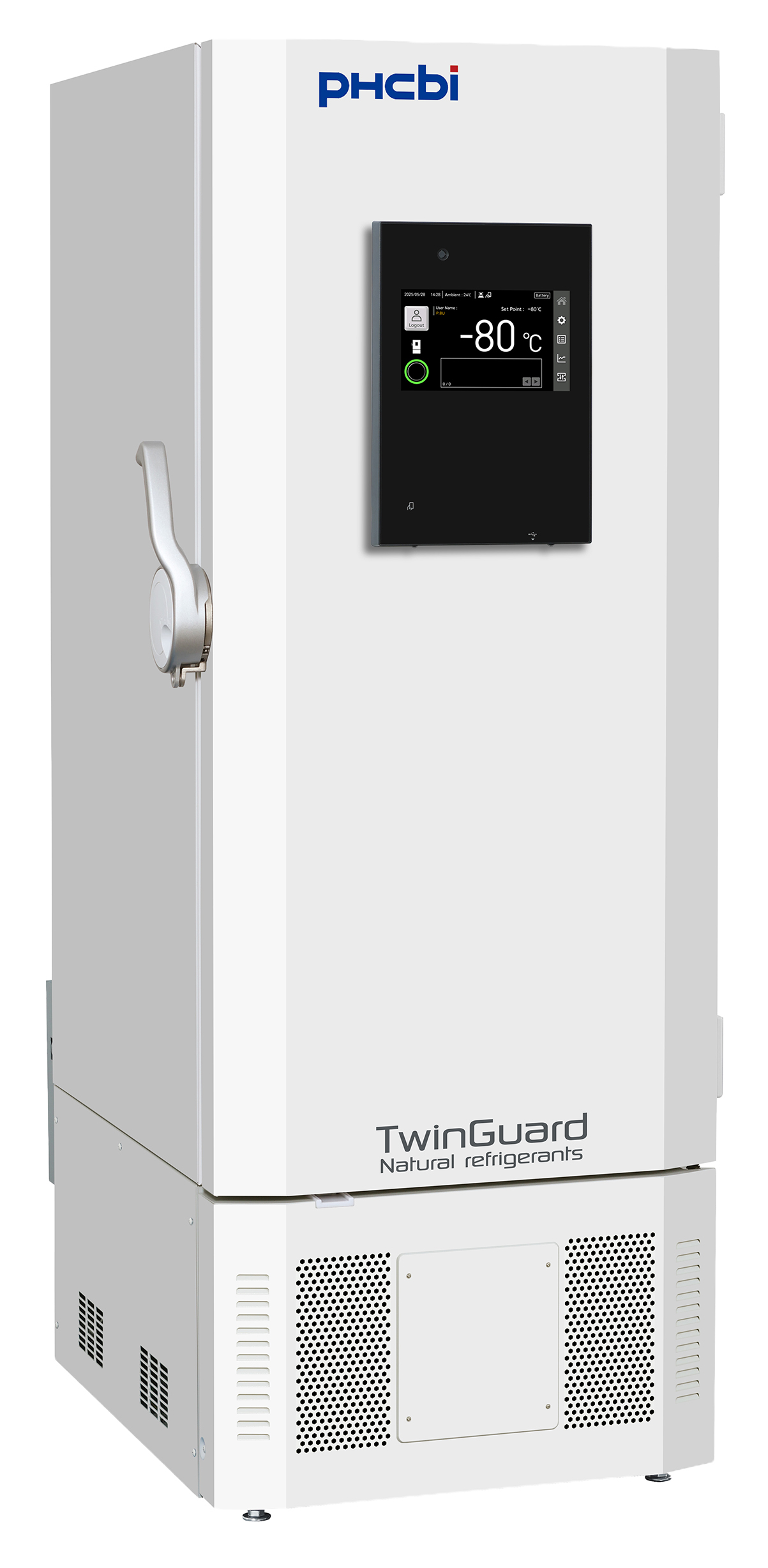

PHCbi TwinGuard ECO Series 12.7 Cu. Ft. Ultra-Low Temp Freezer (-86°C) | 220V | Capacity: 240 x 2″ Boxes

Item#: MDF-DU303VXH-PA

The PHCbi TwinGuard ECO freezer delivers next-generation sample protection with dual cooling security, eco-friendly refrigerants, and energy efficiency. Designed for reliability in critical environments, it maintains performance down to -86°C while reducing energy use by more than 20%.* A modern touchscreen interface and integrated access control make it a smarter, greener solution for safeguarding high-value biological materials.

FREE SHIPPING ON ALL PHCBI BRAND EQUIPMENT

For a limited time only get FREE Dock-to-Dock freight on all PHCbi equipment. Contact us for a proposal

REQUEST PROPOSAL

Supplier: PHCbi

Volume (cu.ft. | liters): 12.7 I 360
External Dimensions (W × D × H) (inches | mm): 26.4 × 34.7 × 72.4 I 670 × 882 × 1840
Internal Dimensions (W × D × H) (inches | mm): 19.3 × 23.6 × 48.4 I 490 × 600 × 1230
Net Weight (lbs | kg): 496 I 225
Storage Capacity:
- 240 standard 2” boxes
- 144 standard 3” boxes
- 12 Inventory Racks for 2" boxes
- 12 Inventory Racks for 3" boxes
Display: 10.1 LCD touch screen
Temperature Control Range: -50°C to -86°C in 1° increments (center of chamber, ambient temperature 30°C, no load)
Insulation: Foamed-in-place and VIP Plus vacuum insulated panels

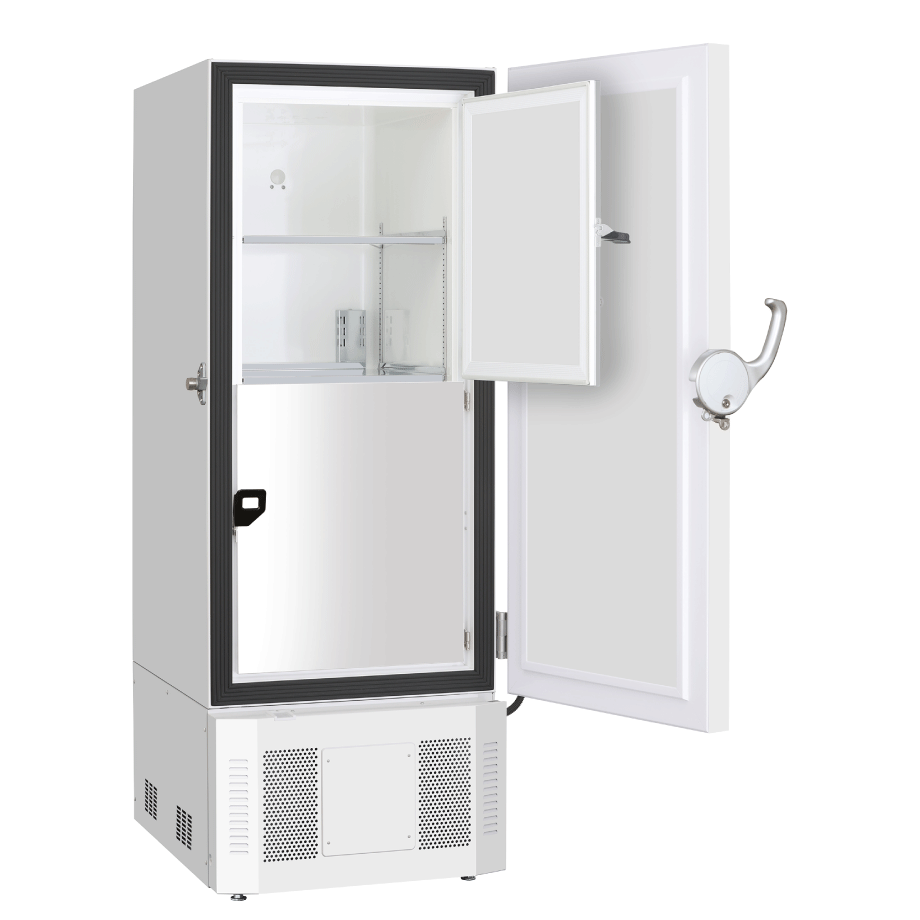

Internal Doors: 2 insulated; ABS, with stainless steel frames and positive latches

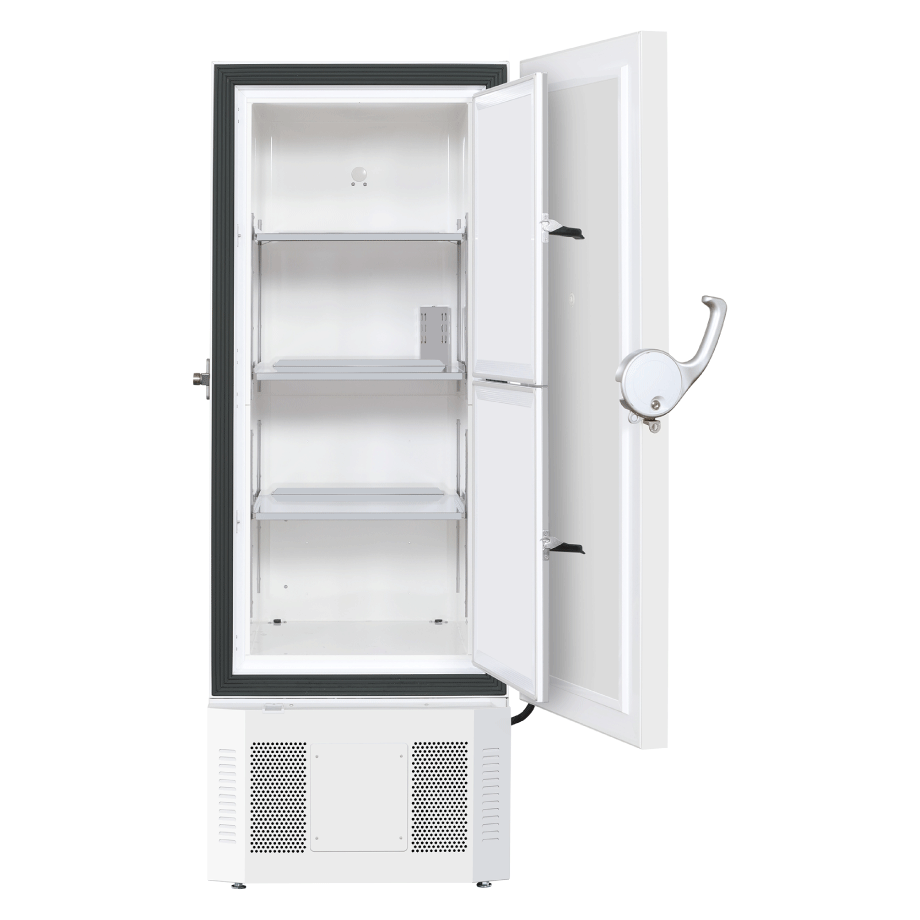

Shelves: Stainless steel, 3 shelves (adjustable); Inner dimensions: 18.7"W x 20.9"D (475 x 531 mm); Load: 110 lbs (50 kg) per shelf
Access Port: 3; upper back wall (back-up system), bottom left (recorder sensor), bottom right (access); Inner diameter: 0.6 in (17 mm)
Compressor: (2) 550 W
Refrigerant: HC Mixed refrigerant [R-600/R-170/R-50] 117.5g per circuit
Alarms: High temperature, low temperature, power failure, door ajar, remote alarm, battery life, fan motor life, fan lock, cooling circuit abnormality
Remote Alarm Contacts DC 30V 2A (normally open, normally closed, common)
Cooling Performance: Normal operation: -86°C center of chamber (ambient temp. 30°C, no load); Secondary operation: -70°C center of chamber (ambient temp. 30°C, no load)
Temperature Control System: Microprocessor, touchscreen data entry, password protected
Data Management: USB Retreivable data, Cloud IoT capable with LabSVIFT
Sound Level: 52 dB(A) (background noise 20 dB(A))
Voltage: 220 V 60 HZ NEMA 6-15
Power Consumption: 7.3 kWh/day
Warranty: 5 years parts and labor

Ultimate Sample Protection:The dual cooling system offers the highest level of sample protection through the use of two independent refrigeration systems that maintain -86°C temperature. In the event of a malfunction in one circuit, the second circuit seamlessly takes over, sustaining the in-chamber temperature at -75°C.
Performance and Reliability: Naturally occurring hydrocarbon refrigerants are environmentally friendly with no ozone depletion. These refrigerants provide more efficiency without compromising cooling performance, ambient tolerance, and recovery speeds following door openings.

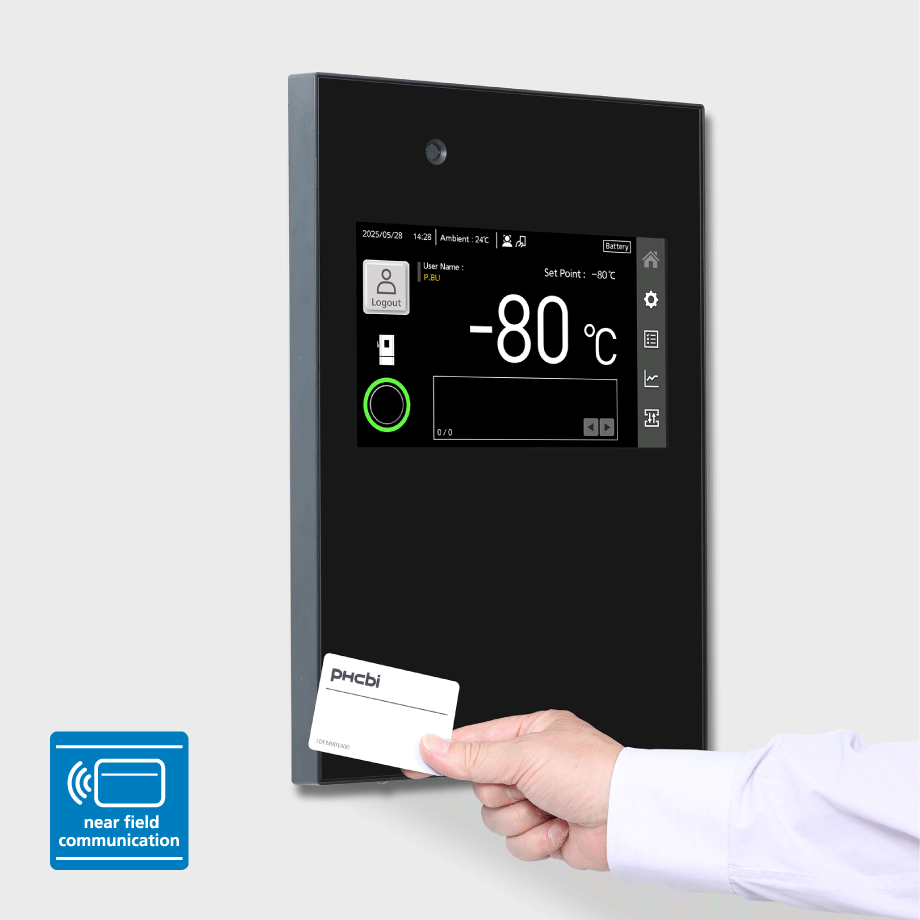

Security Control and Monitoring: An eye level, door mounted, 10.1inch high resolution LCD touchscreen allows full user control. A USB port makes transferring logged data easy. Many attributes are displayed in an internal time-temperature log that can be expressed in graphic form over time. It seamlessly integrates with LabSVIFT® for temperature monitoring, predictive analytics, and lab management.
Valuable Sample Storage: TwinGuard series freezers are ideal for safe, long term storage of your most high valued products, such as stem cells, embryos, cell lines, rare specimens, and other biological materials.
Natural Refrigerants: Natural refrigerants with very low Global Warming Potential (GWP), advanced compressors, and integrated electronics help minimize operating costs by reducing energy consumption and heat output.
Electric Lock: Track freezer access with details on who entered, when, and how long the door remained open with four lock options:
- Electric lock with passcode
- Dedicated key per unit
- Facial recognition (optional)
- Proximity card (optional)

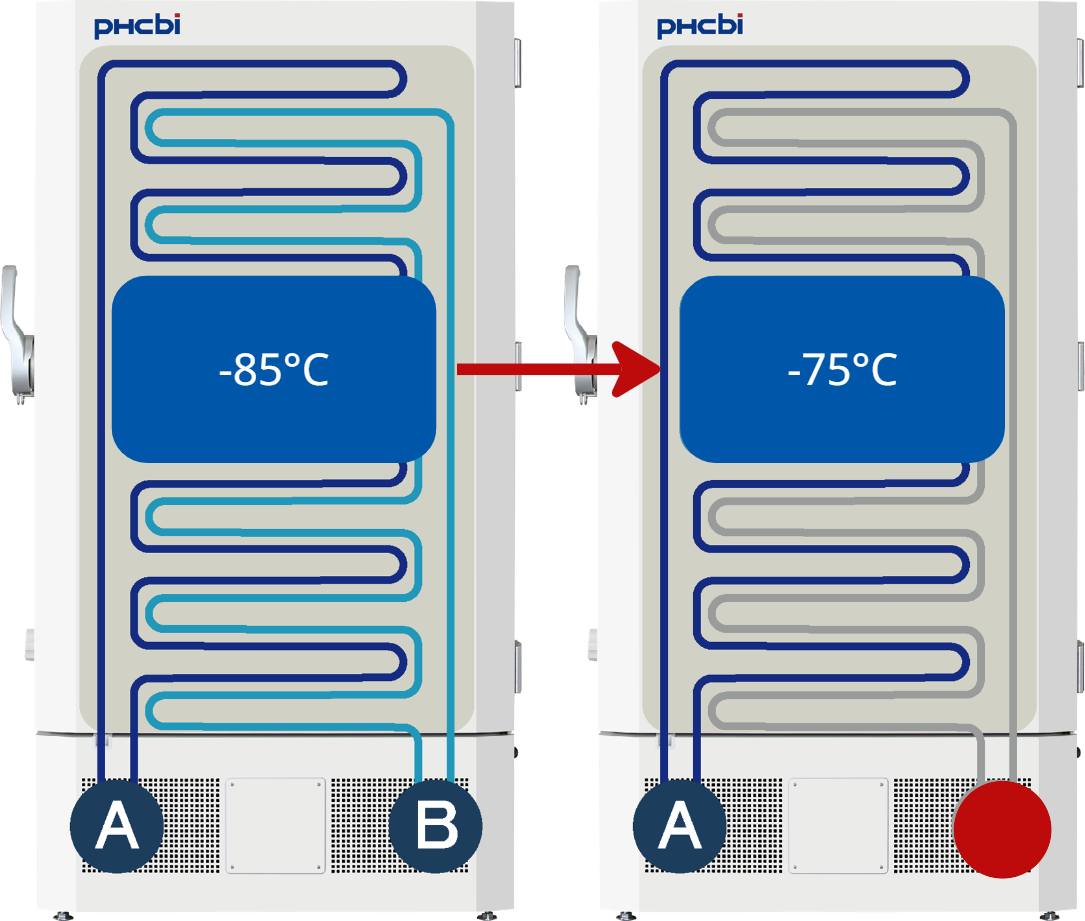

Dual Cooling System: The dual cooling system offers ultimate sample protection. The two independent refrigeration systems provide a reliable and exceptionally stable -86°C ultra low temperature environment. If one system unexpectedly fails, the other can maintain the freezer in the -75°C range until service can be arranged.
Filterless Design: The freezer’s filterless design minimizes routine maintenance by eliminating the need for regular filter cleaning.

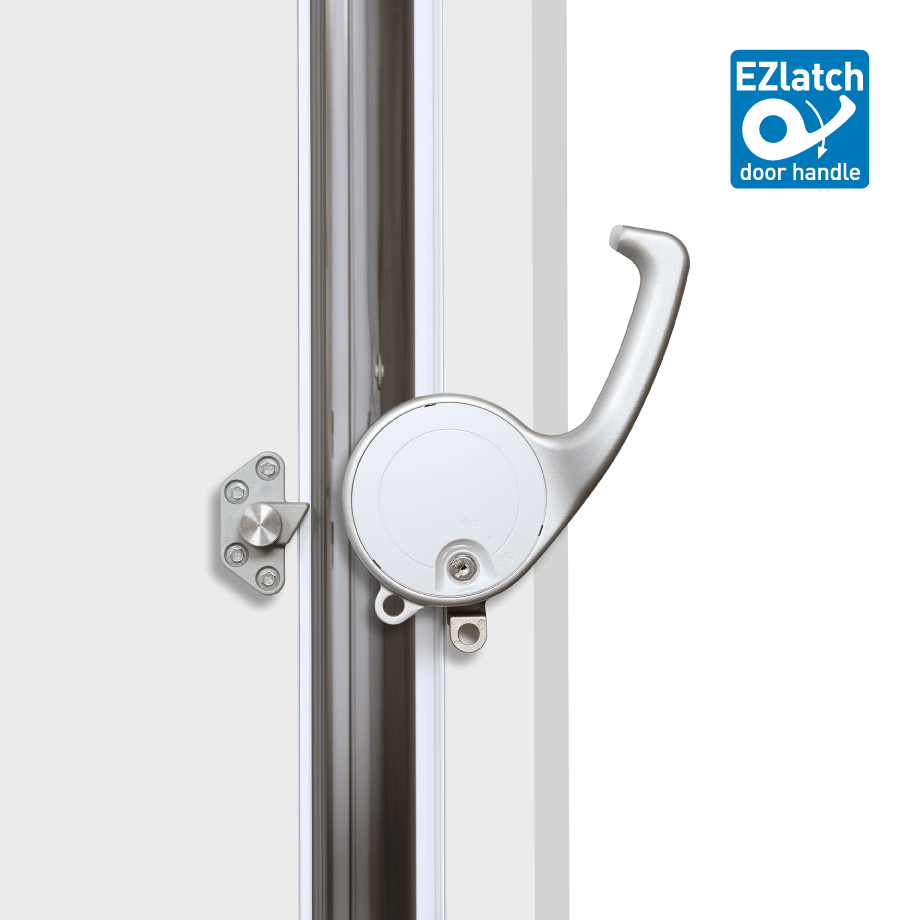

EZlatch with Electronic Access Control: Standard electronic locking with unique key. Optional upgrades: NFC or facial recognition for advanced security.
