- Construction- Stainless steel work zone panels and base with painted steel top blower module.
- Control System- AeroMax
- Electrical Configuration- 115V60Hz, 230V5060Hz
- Fumigation: per NIH/NSF Procedures- True
- HEPA Filter Seal Type- Neoprene, Spring loaded
- Inflow fpm (m/s)- 105 (0.53)
- Lighting - LED
- Light Intensity fc (Lux)- 50 - 150 (538 - 1600)
- Power Cord Length Foot (Meter)- 10 (3)
- Protection- Personnel
- Safety Certification- UL, UL-C
- Style- Console with integral base
- Viewing Window Inches (mm)- 28 (711)
- Work Access Opening(s) - 14 (356)
- Exhaust Filter- 6-inch (152mm) 99.99% Efficiency @ 0.3 Micron
- Exhaust Requirement CFM (CMH)- 511 (868)
- Exterior Depth Inches (mm)- 32 7/8 (833)
- Exterior Height (Fully Assembled, maximum) Inches (mm)- 84 1/4 (2140)
- Exterior Height (Fully Assembled, minimum) Inches (mm)- 92 1/4 (2342)
- Exterior Width Inches (mm)- 52 5/8 (1337)
- Nominal Width Feet (Meters)- 4 ft. (1.2m)
- Work Area Depth Inches (mm)- 29 3/4 (756)
- Work Area Height Inches (mm)- 28 1/8 (715)
- Work Area Width Inches (mm)- 46 3/8 (1178)
- Heat Rejected (BTU/Hour)- 1020
- Net Weight lbs (kg)- 400 (181)
- Shipping Weight lbs (kg)- 450 (204)

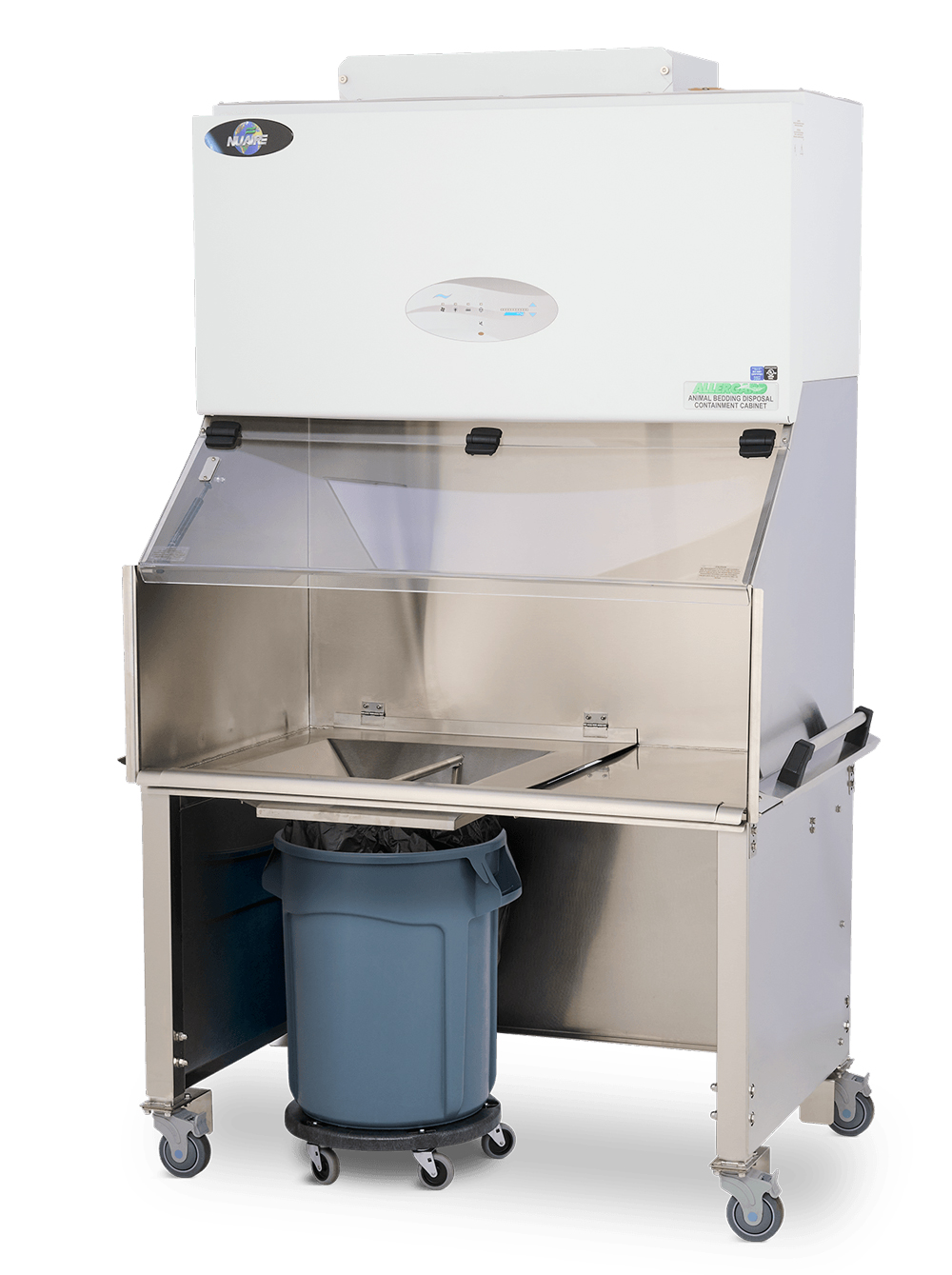

NuAire AllerGard RS NU-608 Class I Animal Refuse Station
Item#: NU-608The NU-608 combines NuAire’s expertise in containment with its understanding of animal handing work to provide a cage dumping station that is safe, mobile, ergonomic, and durable enough for the vivarium. The EC impeller creates a powerful 105 FPM (0,53 m/s) inflow to protect the user as they easily reach through the 16” (406mm) work access opening to dump refuse into a rectangular waste chute built into the stainless steel work surface. This work surface is easily raised for efficient replacement of the waste bag underneath. The work zone is surrounded by cleanable and durable stainless-steel side walls and set on a telescoping base with castors that allows both easy movement and height adjustment to fit every technician. LED lights provide long lasting and efficient illumination in the work zone, and users can easily monitor cabinet performance through the Aeromax™ control system that visualizes pressure in the cabinet’s internal airflow plenum. A visual and audible alarm activates when parameters are unsafe.
AEROMAX CONTROL SYSTEM
The Aeromax control system visualizes airflow plenum pressure through a series of multicolored lights and activates both an audible and visual alarm whenever cabinet performance departs from normal parameters.
WARRANTY
3 Years Parts & Labor (United States and Canada)
STANDARD FEATURES
- EC Impeller14-inch Access Opening
- Stainless Steel Side Walls
- Stainless Steel Work Surface with Rectangular Waste Chute
- LED Lighting
- Telescoping Base Stand with Castors
- Aeromax™ Control System
