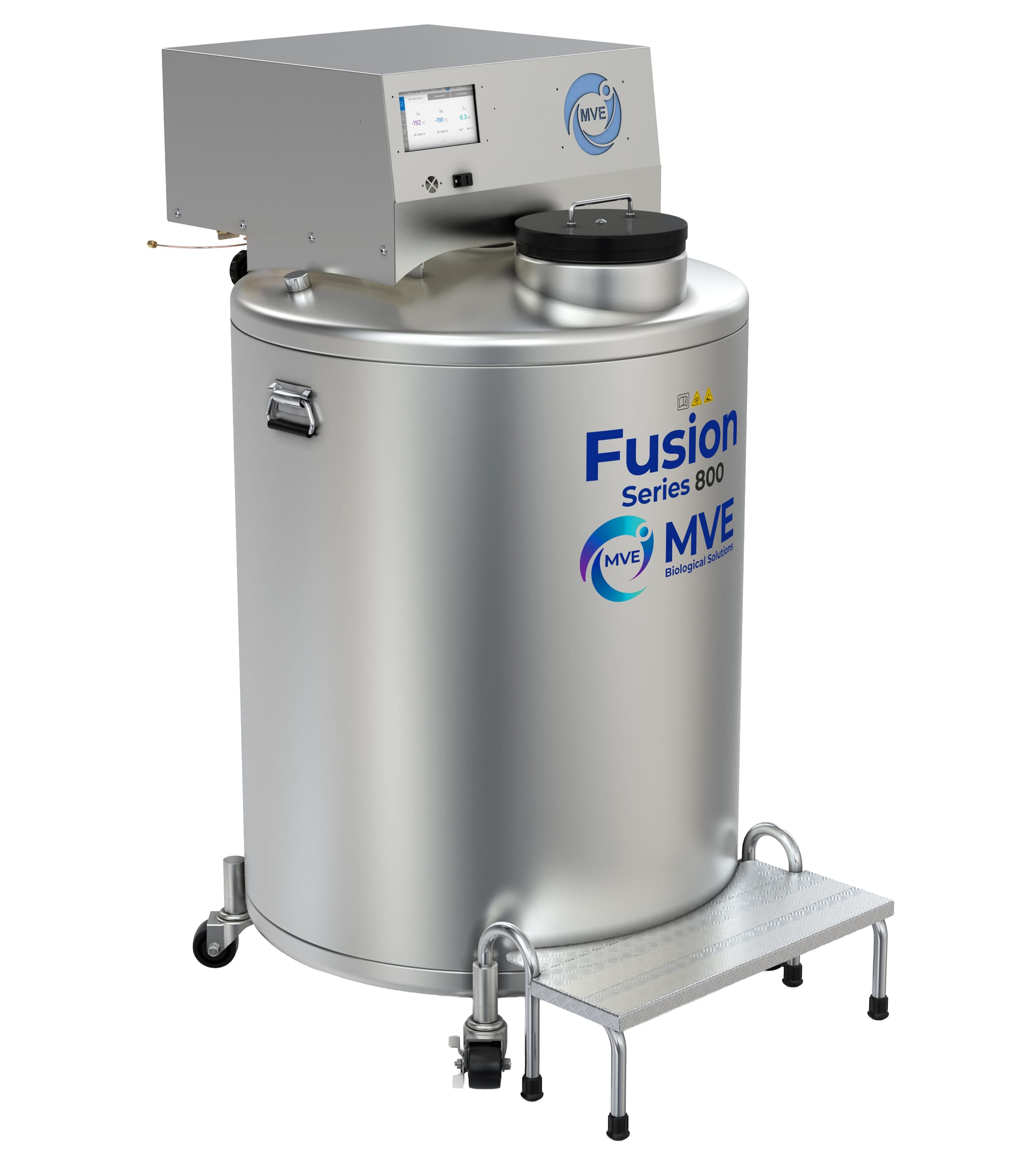

MVE Fusion® 800 Series Cryogenic LN2 Freezer (Capacity: 11,700 x 2.0 ml vials)

Item#: Fusion 800

Powered by MVE’s patented QDrive™ technology, the Fusion 800 maintains ultra-cold temperatures without routine LN₂ refills or complex infrastructure. Whether you’re working in an existing lab, a restricted access area, or a facility with limited floor space, the Fusion 800 offers cryogenic certainty without compromise. This is self-sustaining cryogenics refined.

REQUEST PROPOSAL

Supplier: MVE

Neck Opening: 9.2 in (234 mm)
Usable Internal Height: 28.7 in (730 mm)
Inner Diameter: 27.9 in (707 mm)
Overall Height: 59.3 in (1507 mm)
Liftover Height: 49.7 in (1263 mm)
Door Width Requirement: 32.0 in (813 mm)
Weight (Empty / Operating): 500 lb (226 kg) / 650 lb (295 kg)
Top Box Temp (Steady State): -150°C
Operating Pressure: 22 PSIG
Vials- Inventory Racks (13-2, 100 Cell): 9 total
Blood Bag Capacities (Total Bags)
- 25 mL (Medsep): 987
- 50 mL (Baxter): 672
- 250 mL (Baxter): 300
- 500 mL (Baxter): 216
- 200 mL (Gambro): 132

Award-winning Fusion® self-sustaining technology
Compact 32-inch-wide footprint for easy installation

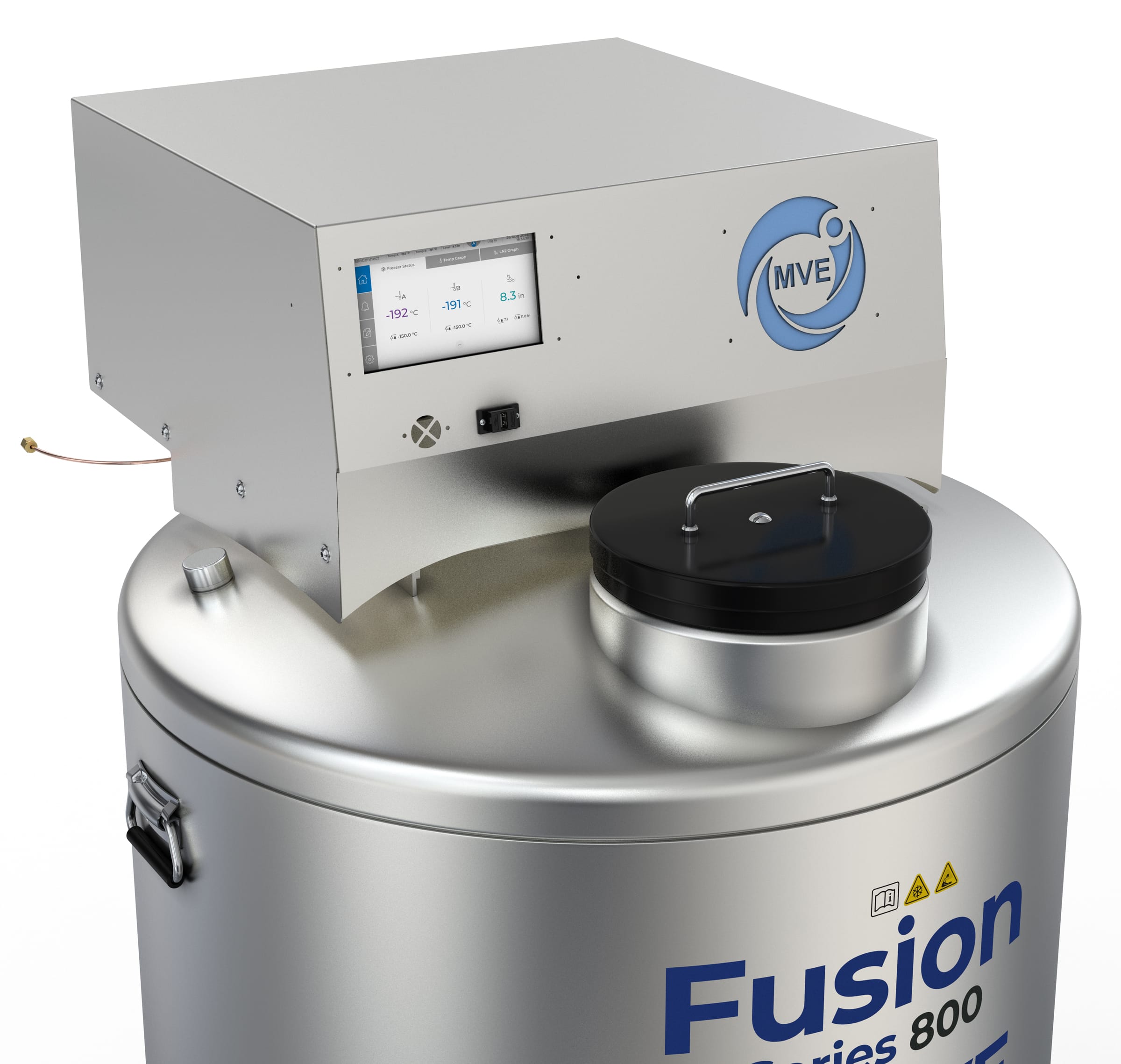

QDrive™ cryo-cooler with fewer moving parts and low vibration
No routine LN₂ refills required
Mounted casters and integrated handles for flexible placement
Reliable cryogenic performance with minimal maintenance
Improved safety and reliability, minimizing lab disruptions and reducing exposure associated with LN₂ handling.
Self-sustaining cryogenic storage, eliminating the need for ongoing LN₂ refills and reducing operational risk.
Energy-efficient performance that delivers cryogenic temperatures with significantly lower energy consumption than mechanical freezers.
Five year vacuum warranty
Two year standard warranty
UL/C-UL listed freezer system
