Name: Jeio Tech IL3-25 Refrigerated Forced Convection Incubator | 8.5 cu. ft. (242 L)
Brand: JeioTech
SKU: AAH220562U
Price: 7983.00 USD
Availability: InStock

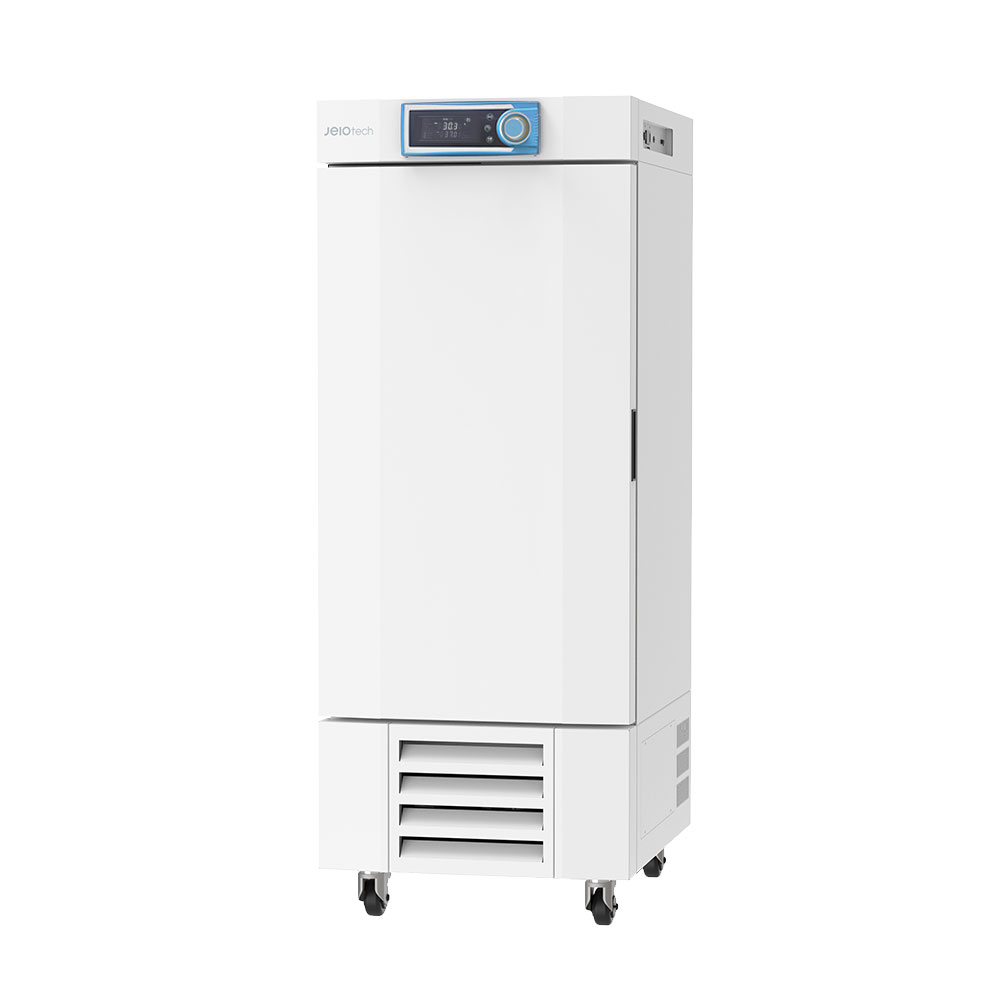

Jeio Tech IL3-25 Refrigerated Forced Convection Incubator | 8.5 cu. ft. (242 L)

Item#: AAH220562U

The Jeio Tech IL3-25 AAH220562U is a 242L refrigerated forced convection incubator for temperature-controlled laboratory applications. It operates from 0°C to 80°C with forced-air circulation and PID microprocessor temperature control. The 8.5 cu. ft. stainless steel chamber includes three shelves and an inner glass door for sample observation.

Temperature calibration, auto-tuning, and three stored temperature settings support precise daily operation. Safety features include over-temperature protection, temperature deviation alarms, sensor failure alerts, and a controller lock. USB and RS-232 connectivity support data management, while optional LC GreenBox enables remote monitoring through the LC Connected app.

~~$8,677.00~~ $7,983.00

REQUEST PROPOSAL

Chamber volume (L / cu ft): 242 / 8.5
Refrigerator (Hp): 1 / 6 HBP
Temperature Range (℃ / ℉): 0 to 80 / 32 to 176
Fluctuation at 37℃ (±℃ / ℉): 0.1 / 0.18
Variation at 37℃ (±℃ / ℉): 1.0 / 1.08
Heating time 20 to 37℃ (min.): 45
Cooling time 20 to 5℃ (min.): 50
Recovery time at 37℃ (min.): 4
Interior Dimensions (W x D x H inch): 24 x 20 x 20 (600 x 500 x 500mm)
Exterior Dimensions (W x D x H inch): 28.3 x 29.9 x 42.1 (720 x 760 x 1070 mm)
Net weight (Kg / lbs): 135 / 297
Quantity of shelves (standard / max.): 3 / 13
Max. Load per shelf (Kg / lbs): 30 / 66
Electrical requirements: 120V, 60Hz, 10.6A
Voltage: 120/ 50/60/ 1P
Plug Type: B l NEMA 5

Compact design
Clear information display via a VFD panel
Inner tempered glass door combined with silicone gasket for a complete seal, allowing for convenient observation of samples without causing temperature fluctuations
Outer door uses a magnetic seal, allowing it to be opened and closed smoothly with minimal force, minimizing sample disturbance.
Isolated chamber design keeps the area clean and prevents cross-contamination
Equipped with an internal power outlet as a standard feature, allowing for the operation of light electrical equipment
Convenient, detachable refrigerator condenser grill structure
Inner chamber and shelves are made of stainless steel for excellent corrosion resistance and easy maintenance and cleaning
Rounded interior corners for easy cleaning

User Convenience Features

Precise temperature control via PID microprocessor with temperature calibration and auto-tuning
Stores and uses 3 frequently used temperatures
Wait On/Off timer (up to 999 hours 59 minutes)
Convenient device operation and data management via USB/RS-232 port
Device operation and data management through PC connection
Alarm function in case of temperature sensor disconnection
Remote monitoring option available via mobile app by connecting to LC Connected (Mobile Monitoring System) (when purchasing LC GreenBox)

Excellent Safety Features

Equipped with a reliable, highest-level overheating prevention system
General/electronic overheating cut-off function (Over Temperature Limiter)
Temperature deviation alarm settings
Prevents operational errors with the Controller Lock function

Temperature Variation

Provides uniform temperature distribution within a 1°C range, thanks to excellent temperature control capabilities

Two Refrigerated Incubator Models Based on Heat Transfer Method

Forced Convection: Forced-air circulation provides superior temperature uniformity throughout the chamber, though continuous airflow may accelerate media evaporation.
Natural Convection (Air-jacket): The chamber is heated by an air-jacket surrounding the sample space, providing stable and uniform temperature control. This design helps minimize moisture evaporation from the culture medium.
