Iwaki Aquatic LAbREED® ITS-Z Zebrafish Systems

Item#: ITS-Z Zebrafish System

The LAbREED Zebrafish Systems are advanced aquatic housing solutions commonly used in zebrafish research to breed zebrafish. At Iwaki Aquatic, we offer zebrafish housing systems in different tank sizes and a support system with dosing pumps and controllers designed to provide optimal conditions for zebrafish health and productivity. These zebrafish housing systems also feature advanced filtration, temperature control, and can even automate daily feeding tasks. Our LAbREED systems are customizable, allowing for scalable solutions that meet the specific needs of various research facilities. Iwaki Aquatic ensures that LAbREED Zebrafish Systems contributes to high-quality research outcomes while maintaining a sustainable environment for zebrafish

REQUEST PROPOSAL

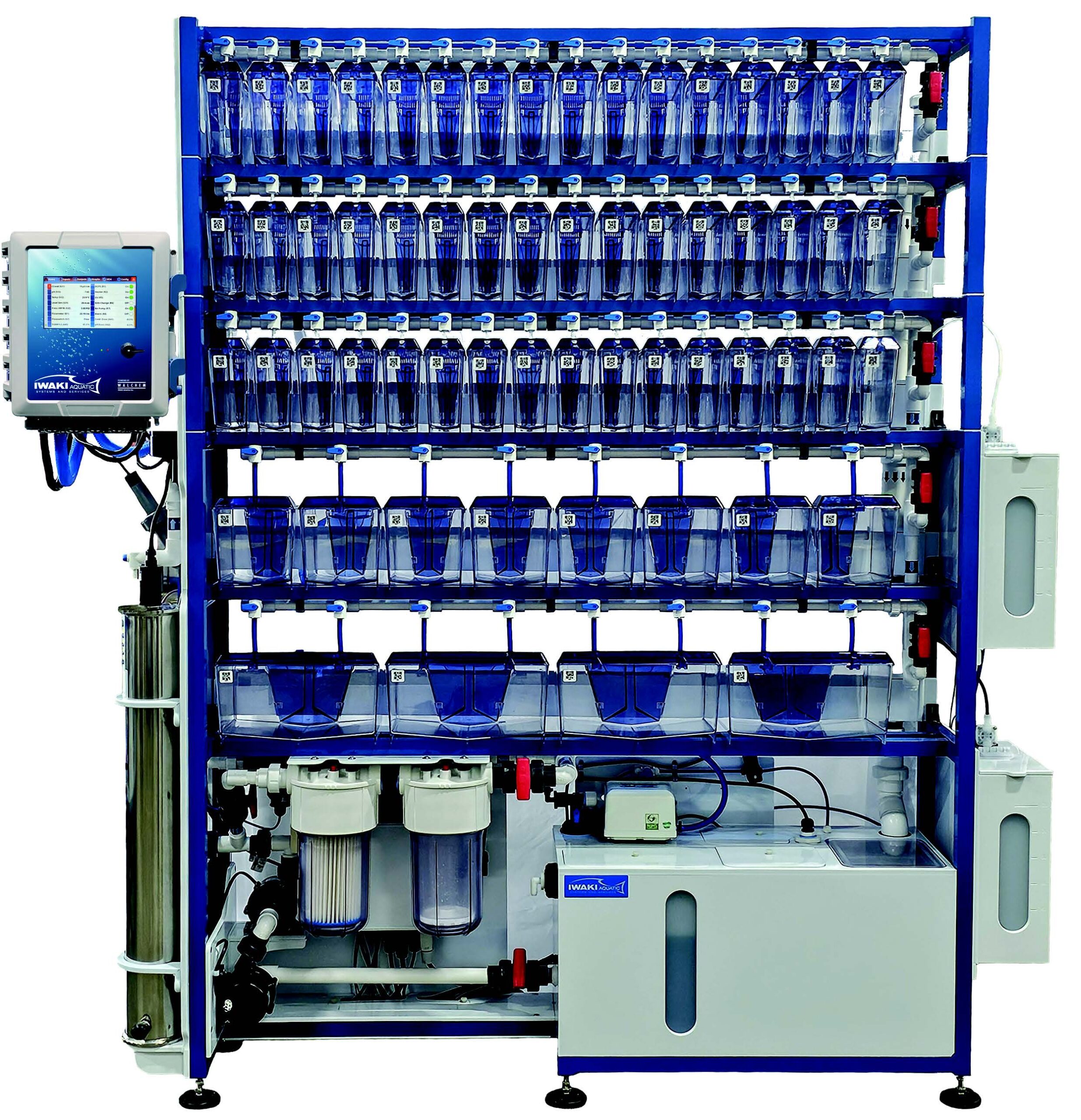

ITS-Z Five Shelf System

Tank Options	2 Liter	4.5 Liter	9 Liter
Tank Quantity	80	40	20
Zebrafish Capacity @ 10 Fish/Liter	1,600	1,800	1,800
Total System Volume (Liters)	250	270	270
Total Tank Volume (Liters)	160	180	180
Turnover Rate per Hour (Tank volumes)	6
UV Dose Rate mJ/cm²	180
Mechanical Filter, 50 Micron	1.3 M²
Activated Carbon Filter	600 grams
	Width	Depth	Height
System Dimensions, Centimeters	201	36	203-229
System Dimensions, Inches	79	14	80-90
Operating Weight with 4.5L or 9L Tanks	419 kg, 935 lbs
Power	15A 120v/60Hz	OR	15A 230v/50Hz

ITS-Z Six Shelf System

Tank Options	2 Liter	4.5 Liter	9 Liter
Tank Quantity	96	48	24
Zebrafish Capacity @ 10 Fish/Liter	1,920	2,160	2,160
Total System Volume (Liters)	282	306	306
Total Tank Volume (Liters)	192	216	216
Turnover Rate per Hour (Tank volumes)	6
UV Dose Rate mJ/cm²	160
Mechanical Filter, 50 Micron	1.3 M²
Activated Carbon Filter	600 grams
	Width	Depth	Height
System Dimensions, Centimeters	201	36	229-259
System Dimensions, Inches	79	14	90-102
Operating Weight with 4.5L or 9L Tanks	465 kg, 1,025 lbs
Power	15A 120v/60Hz	OR	15A 230v/50Hz

Available in four to seven shelf configurations with short and tall spacing options
All systems feature Constant Flow Technology with Iwaki Aquatic pumps that are speed controlled based on system pressure to maintain consistent flow to the fish holding tanks
Powder coated aluminum rack with leveling feet options
Open shelving provides easy access to tanks, water feed and drain manifolds
Equipped with smart filtration monitoring, real-time alerts, and low-maintenance filtration components for effortless upkeep
Titanium heater standard for 5C heat-up with options for heat shock and chilling
Active water quality monitoring and proportional dosing for pH and conductivity up or down
Bypass filters or sensors when needed

Available Options:

Saltwater version
Lighting and Aeration
High-flow version with 3 pumps
Larger capacity sediment filter

Filtration System

Low maintenance oversized moving bed biofilter
Stainless steel UV unit
Large capacity 50-micron cartridge filters
600 gram capacity activated carbon filter
Reusable 200 micron pre-filter bag

Innovative Tank Design

2 liter, 4.5 liter, and 9 liter polycarbonate tanks
Innovative baffle design with vertical tube that provides the best tank cleaning in the industry
Locking lid ensures proper placement, security and prevents fish escape
Simple three-piece tank assembly (tank, lid, and baffle) are autoclavable and easy to clean with no recesses or complicated parts
Larval screens are color coded for easy identification of the 400, 700, and 1000 micron sizes. Tanks include two slots, allowing for easy exchange of larval screens without larval escape

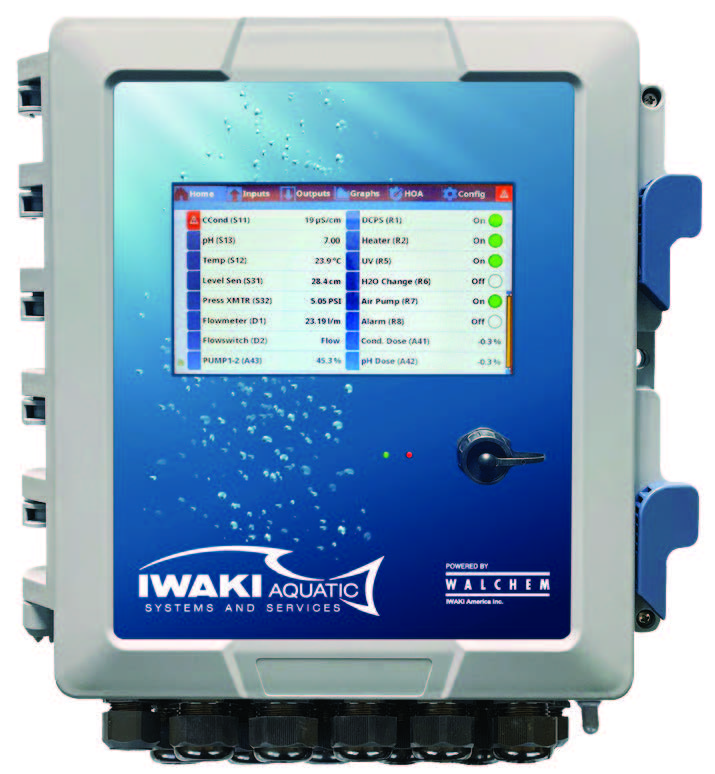

Iwaki Aquatic Life Support Controller

Easy to use color touch screen with intuitive navigation menu
Monitor and control your system remotely using any internet-ready device through our powerful cloud-based software platform, with support for both Wi-Fi and Ethernet connectivity. Receive instant email or SMS text alerts when system parameters fall outside of your defined range.
Chart/graph water quality parameters over time. Up to 90 days with 15 minute sampling intervals
Standard with pH, temperature, conductivity sensors and dosing control. Options for TDGP, DO, and other sensors available
System includes level and flow sensors for safety and shut-down of electrical components in the event of a low water or low flow situation
