Iwaki Aquatic LAbREED® Bench-Top Zebrafish Systems

Item#: Bench-Top ZEBRAFISH System

The Iwaki Aquatic LAbREED® Bench-Top Zebrafish System is a compact, high-performance aquatic research unit designed for precision, reliability, and ease of use. Available in two or three-shelf configurations, each system features constant flow technology with speed-controlled Iwaki pumps that automatically adjust to maintain stable water delivery to all tanks. Constructed with a powder-coated aluminum rack and open shelving, the LAbREED® system allows effortless access to tanks and plumbing for maintenance. Its advanced filtration includes a moving bed biofilter, stainless steel UV sterilizer, and multi-stage carbon and micron filtration for superior water quality. Polycarbonate tanks in 2, 4.5, and 9 liters feature a self-cleaning baffle design, secure locking lids, and color-coded larval baffles for precise research control. With an integrated Life Support Controller that enables remote monitoring, alerts, and data logging, the LAbREED® system provides a smart, space-efficient solution for zebrafish housing and aquatic research applications.

REQUEST PROPOSAL

ITS-Z Three Shelf Bench-Top

Tank Options	2 Liter		4.5 Liter
Tank Quantity	36		18
Zebrafish Capacity @ 10 Fish/Liter	720		810
Total System Volume (Liters)	127		136
Total Tank Volume (Liters)	72		81
Turnover Rate per Hour	6
UV Dose Rate uW-sec/cm2 (*EOLL 12 months)	150,000	135,000
Mechanical Filter, 50 Micron	0.46 m2
Activated Carbon Filter	350 grams
System Dimensions (cm) (W x D x H)	152 x 36 x 127
System Dimensions (inches) (W x D x H)	60” x 14”x 50”
Operating Weight	259 Kg, 571 lbs	272 Kg, 600 lbs
Voltage/Hertz/Amps with Heater	120/60/6 or 230/50-60/3

ITS-Z Two Shelf Bench-Top

Tank Options	2 Liter		4.5 Liter
Tank Quantity	24		12
Zebrafish Capacity @ 10 Fish/Liter	480		540
Total System Volume (Liters)	103		109
Total Tank Volume (Liters)	48		54
Turnover Rate per Hour	6
UV Dose Rate uW-sec/cm2 (*EOLL 12 months)	230,000	200,000
Mechanical Filter, 50 Micron	0.46 m2
Activated Carbon Filter	350 grams
System Dimensions (cm) (W x D x H)	152 x 36 x 112
System Dimensions (inches) (W x D x H)	60” x 14”x 44”
Operating Weight	223 Kg, 492 lbs	232 Kg, 512 lbs
Voltage/Hertz/Amps with Heater	120/60/6 or 230/50-60/3

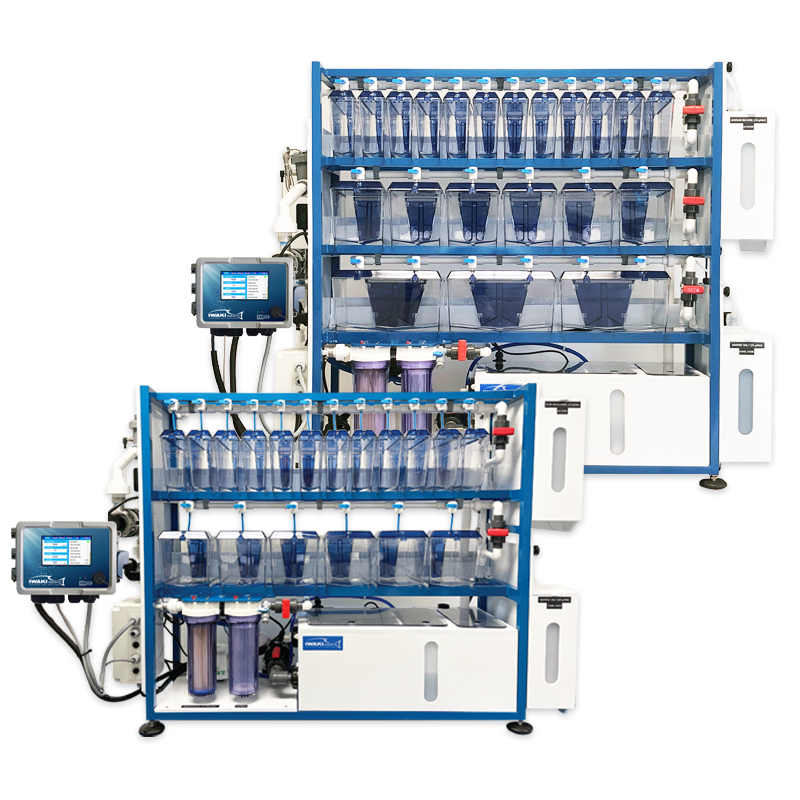

Available in two and three shelf configurations
Standard systems are recirculating systems with 10% water change per day
All systems feature constant flow technology with an Iwaki Aquatic pump that is speed controlled based on system pressure to maintain constant flow to the fish holding tanks
Powder coated aluminum rack with leveling feet
Structural support bench for the system is available
Open shelving provides easy access to tanks, water feed and drain manifolds
System plumbing is designed with unions in strategic locations so the entire system can be easily disassembled for cleaning
Titanium heater standard for 5C heat-up with titanium chiller options

Filtration System

Low maintenance oversized moving bed biofilter
Stainless steel UV unit
Large capacity 50-micron cartridge filters
Large capacity activated carbon filters
Submerged 200 micron pre-filter bags

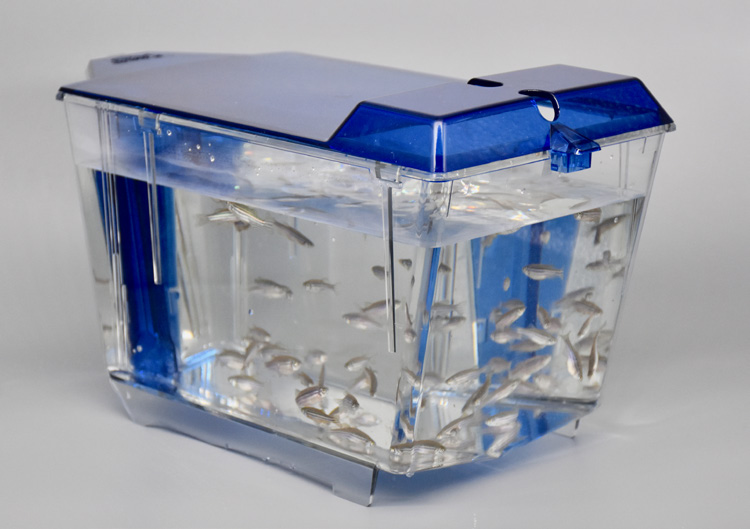

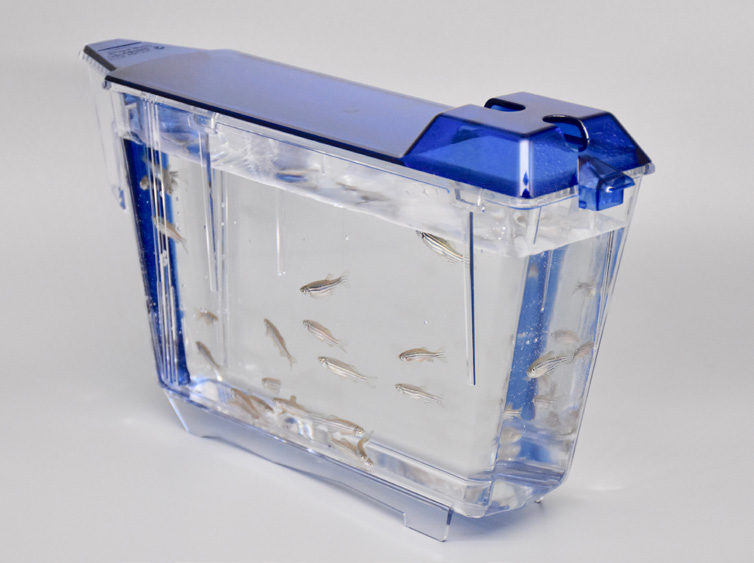

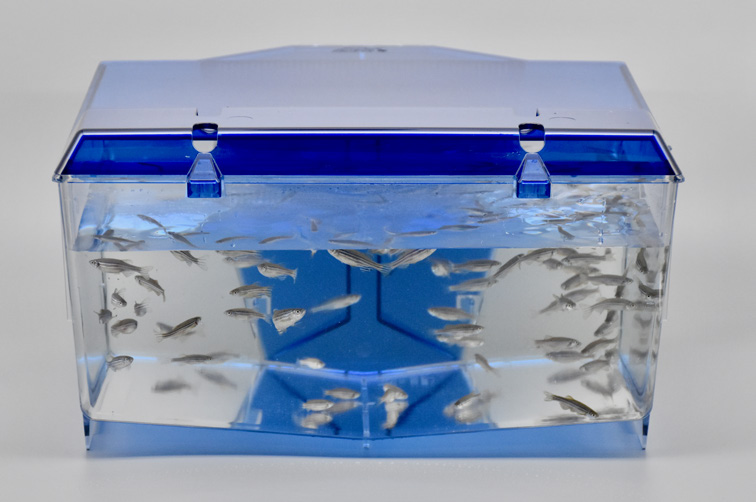

Innovative Tank Design

2 liter, 4.5 liter, and 9 liter polycarbonate tanks
Innovative adult baffle design with vertical tube that provides self-cleaning flow for the removal of settleable solids.
Tank and rack combine to create 5-degree slope towards tank vertical tube drain for improved solids removal efficiency
Locking lid ensures proper placement, security and prevents fish escape
Three-piece tank assembly (tank, lid, and baffle) are autoclavable and easy to clean with no recesses or complicated parts
Larval baffles are color coded for easy identification of the 400, 700, and 1000 micron sizes. Tanks include two slots for larval baffle placement

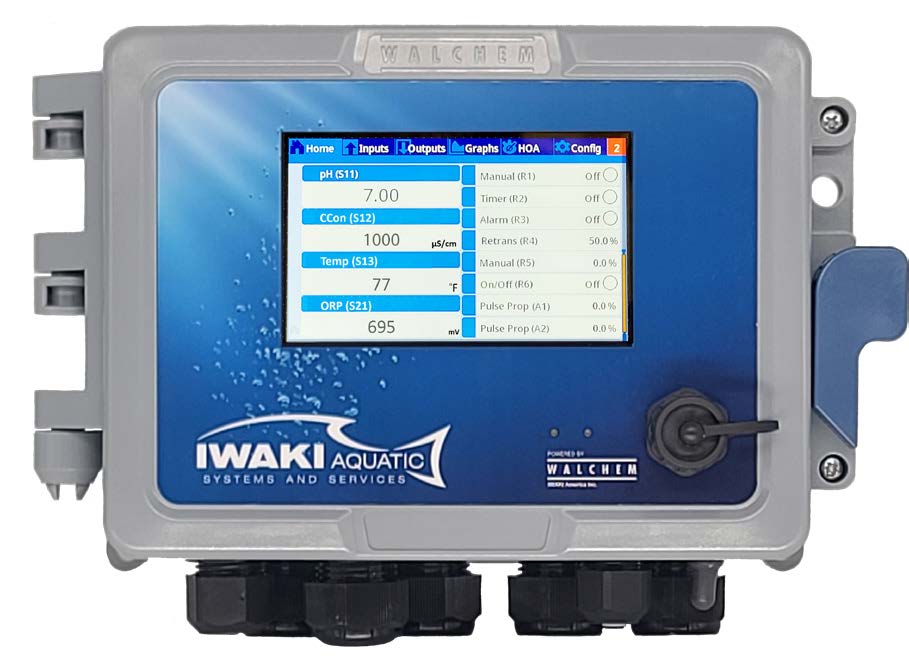

Iwaki Aquatic Life Support Controller

Monitor and control your system remotely with any internet ready device and our powerful cloud based software platform
Sends email or SMS text alerts when parameters are out of range
Chart/graph water quality parameters over time. Up to 90 days with 15 minute sampling intervals
Standard with pH, temperature, conductivity sensors and dosing control
System includes level and flow sensors for safety and shut-down of electrical components in the event of a low water or low flow situation
