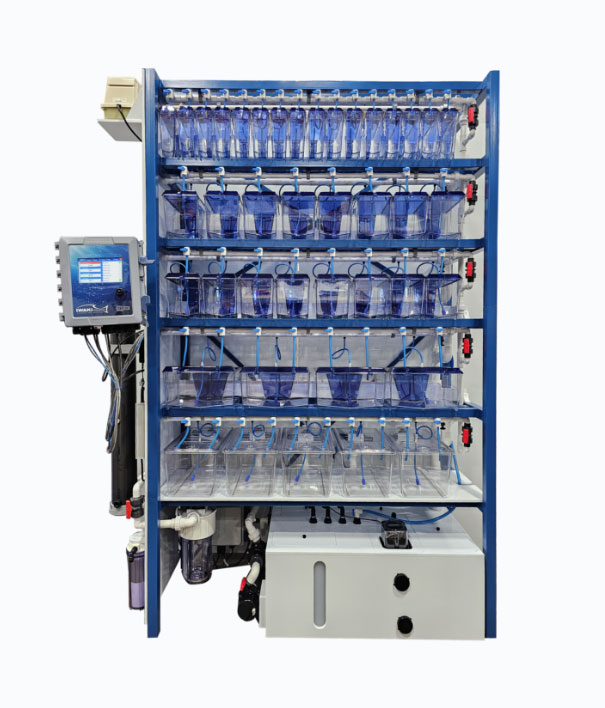

Iwaki Aquatic ITS-C Cephalopod System

Item#: ITS-C Cephalopod System

The Iwaki Aquatic ITS-C Cephalopod System is an advanced aquatic housing solution engineered for optimal cephalopod care and versatile marine research applications. Built with a corrosion-resistant fiberglass rack and modular tank options in 2, 4.5, 9, and 16 liters, this system provides precise water quality control through a 5x hourly turnover rate, dual speed-controlled magnetic drive pumps, and a comprehensive multi-stage filtration system that includes a biofilter, UV sterilization, protein skimmer, carbon filter, and denitrification filter. Its cloud-based Life Support Controller allows users to remotely monitor pH, temperature, and conductivity while receiving instant alerts for any out-of-range conditions. Designed for quiet performance, flexibility, and easy access to tanks and filtration components, the ITS-C is ideal for cephalopods and other small to medium saltwater species used in advanced aquatic research.

REQUEST PROPOSAL

Tank Options (liters): 2, 4.5, 9 & 16
Tank Quantity:
- 2 Liter: 16
- 4.5 Liter: 16
- 9 Liter: 4
- 16 Liter: 5
Total System Volume (Liters): 360
Total Tank Volume (Liters): 220
Turnover Rate per Hour: 5
UV Dose Rate: +100 mJ/cm2 at 12 month end of lamp life
Mechanical Filter, 50 Micron: 1.3 M2 surface area
Activated Carbon Filter: 2.5” x 10” filter
Denitrification Filter: 2.5” x 10” filter
System Dimensions (cm) (W x D x H): 193 x 61 x 241
System Dimensions (inches) (W x D x H): 76” x 24”x 95”
Operating Weight with 4.5L or 9L Tanks: 690 kg, 1521 lbs
Voltage/Hertz/Amps with Heater: 120/60/12 or 230/50-60/6

Structural fiberglass (FRP) rack with leveling feet options
System designed to exclude metals when possible for optimal longevity in a salt water environment
Designed specifically for cephalopods, but ideal for any other small/medium salt water research organism that 2, 4.5, 9, and 16L tanks would be suitable for
Available in stand-alone, flow-through and multi-rack configurations
Dual, speed-controlled Iwaki Aquatic magnetic drive pumps for minimal noise, vibration, and constant flow technology. The pumps speed up to maintain flow as the filters accumulate debris
Open shelving provides easy access to tanks, water, feed and drain manifolds
Titanium chiller and heater options

Filtration System

2ft3 oversized moving bed biofilter
HDPE UV unit
Protein skimmer in sump
Large capacity 50-micron cartridge filter
Activated carbon filter
200 micron reusable filter bags
Denitrification filter

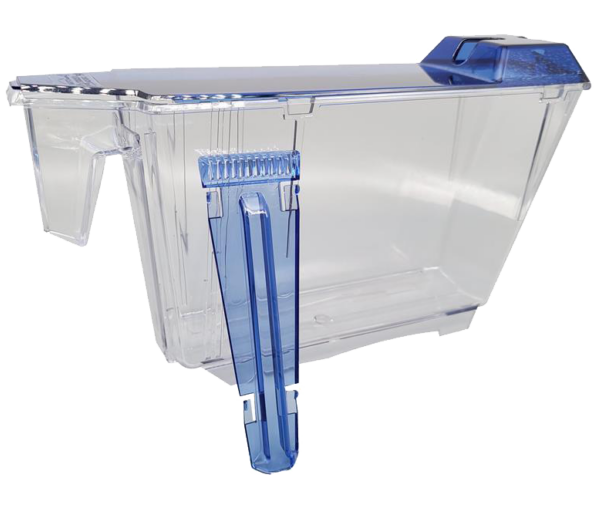

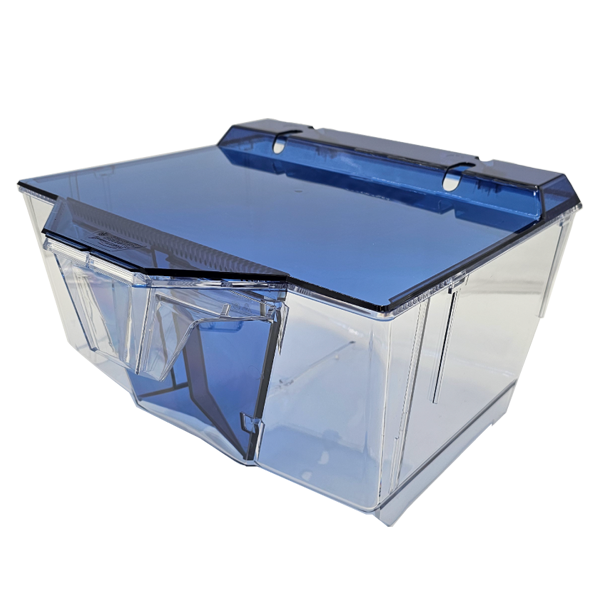

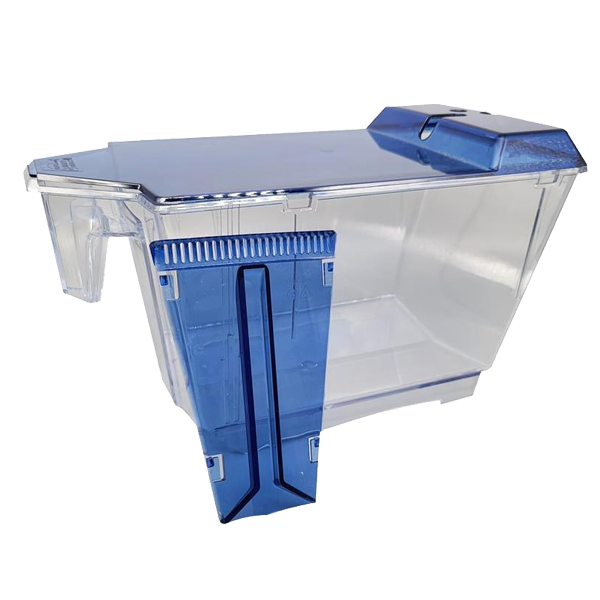

Innovative Tank Design

Two tank styles on one rack system
2L, 4.5L and 9L with baffle design and locking lids

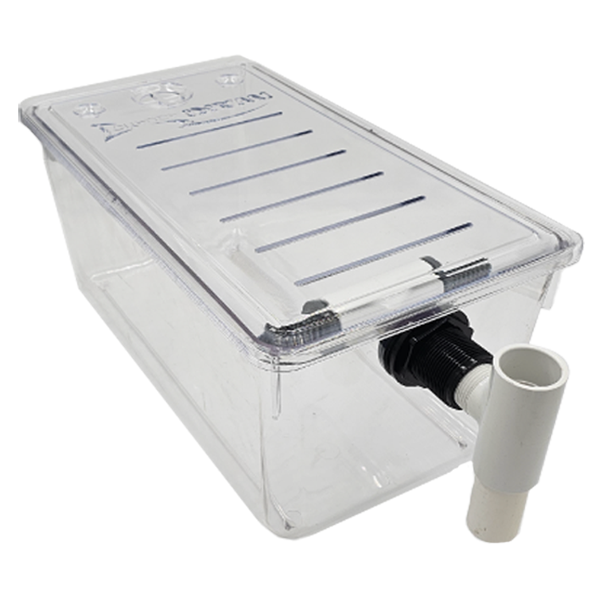

16L with standpipe drain and overflow side wall drain
Aeration options for tanks
Micron sized external standpipes or tank screens available in 400, 600, 700 and 1000 microns.

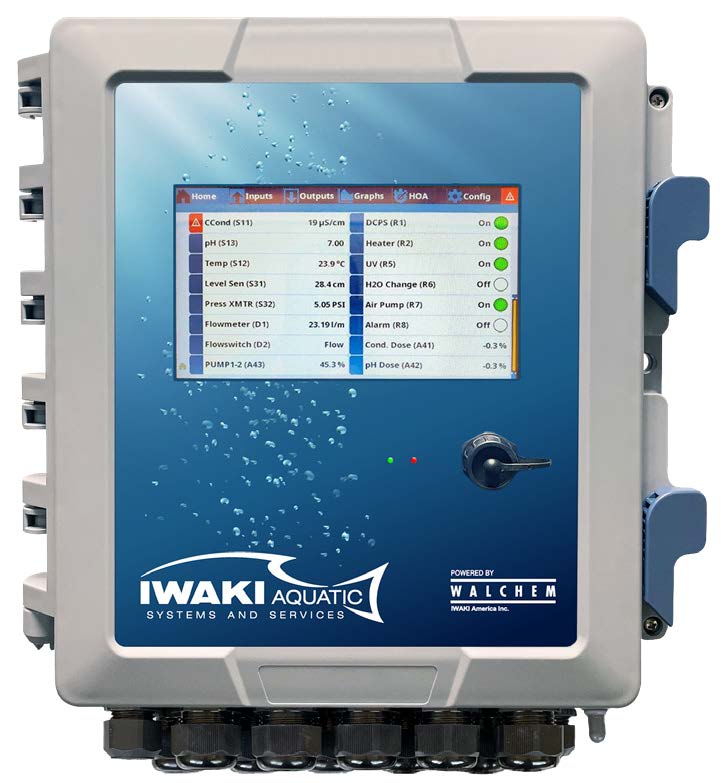

Iwaki Aquatic Life Support Controller

Monitor and control your system remotely with any internet ready device and our powerful cloud based software platform
Sends email or SMS text alerts when parameters are out of range
Chart/graph water quality parameters over time. Up to 90 days with 15 minute sampling intervals
Standard with pH, temperature, conductivity sensors and dosing control
System includes level and flow sensors for safety and shut-down of electrical components in the event of a low water or low flow situation.
