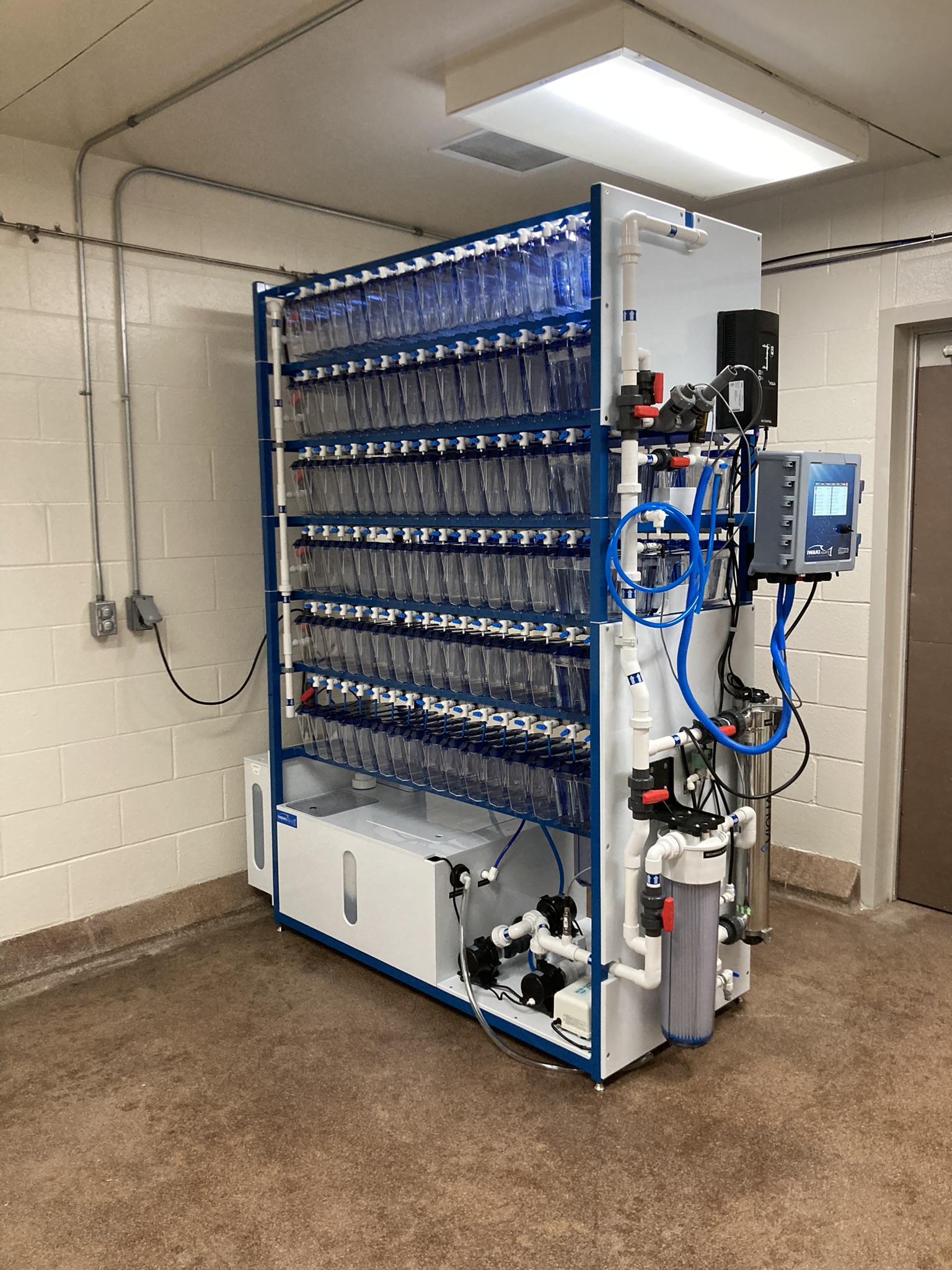

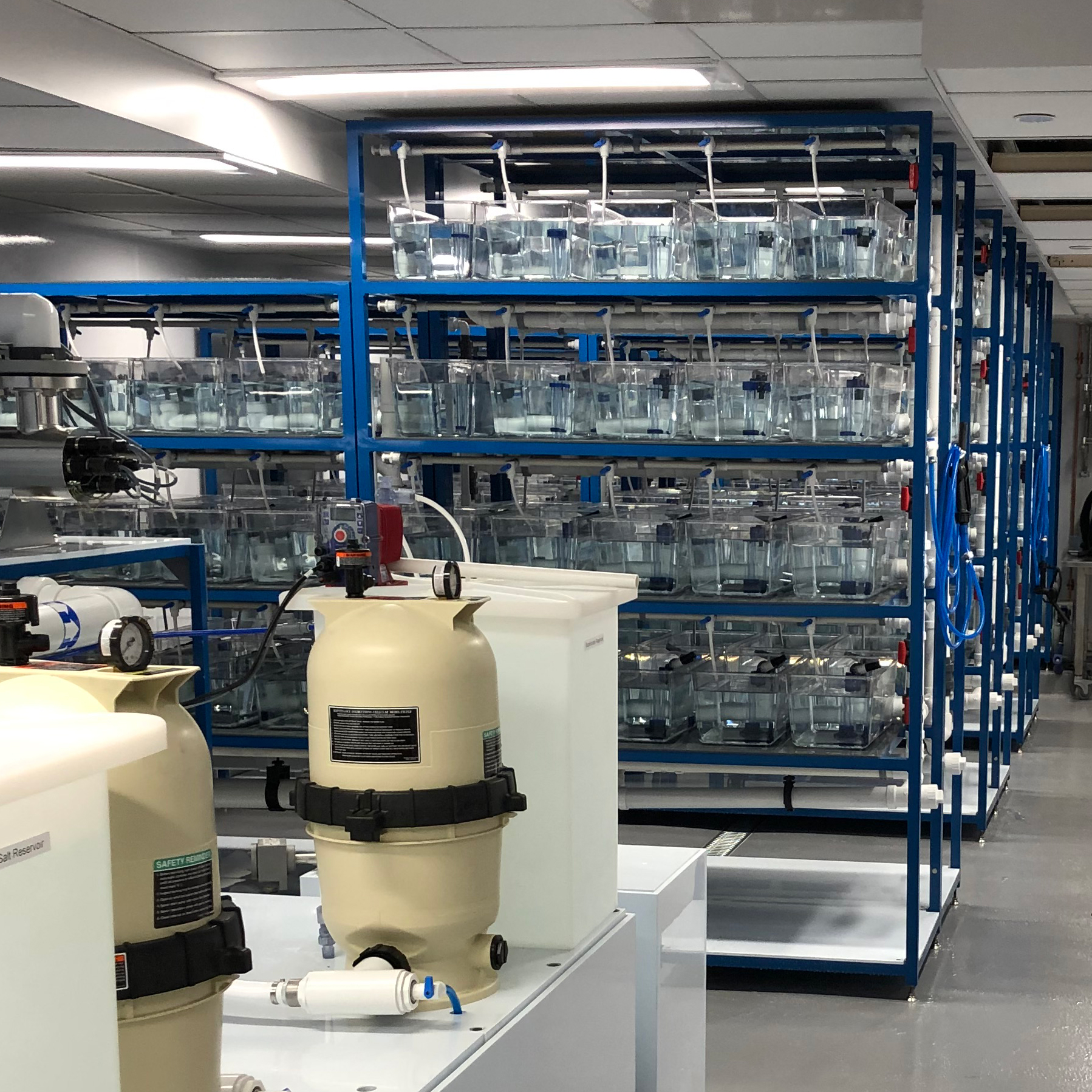

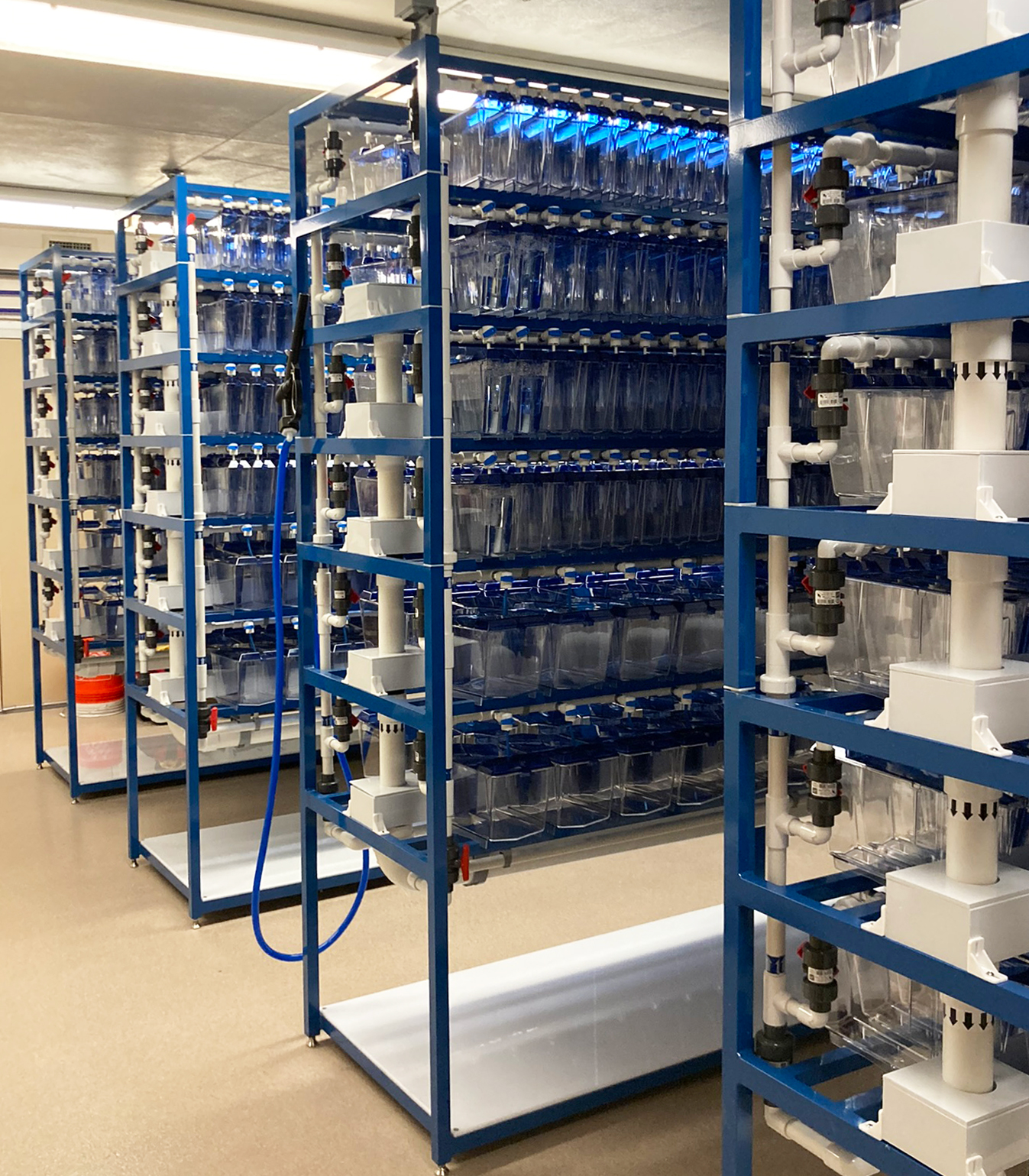

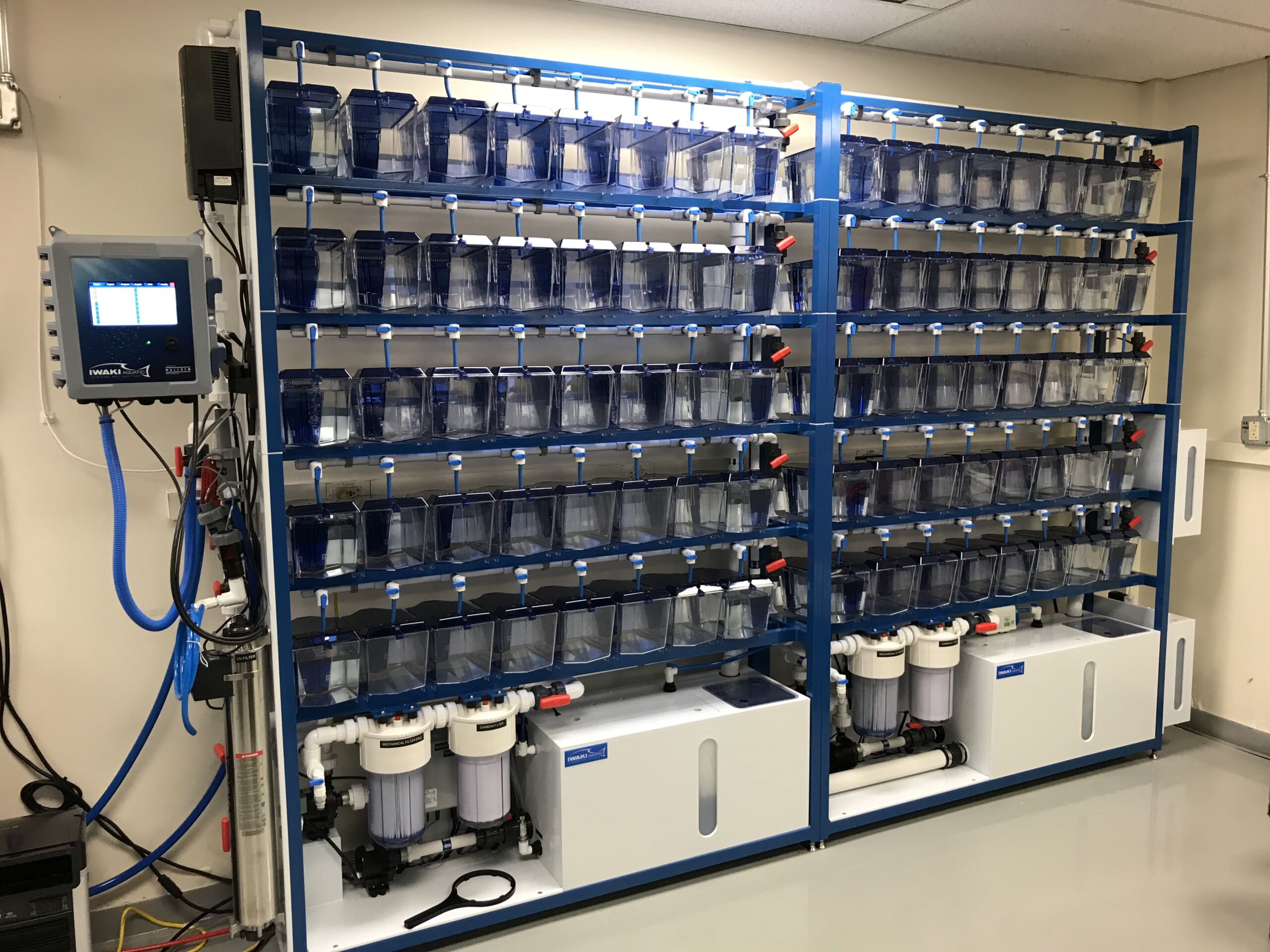

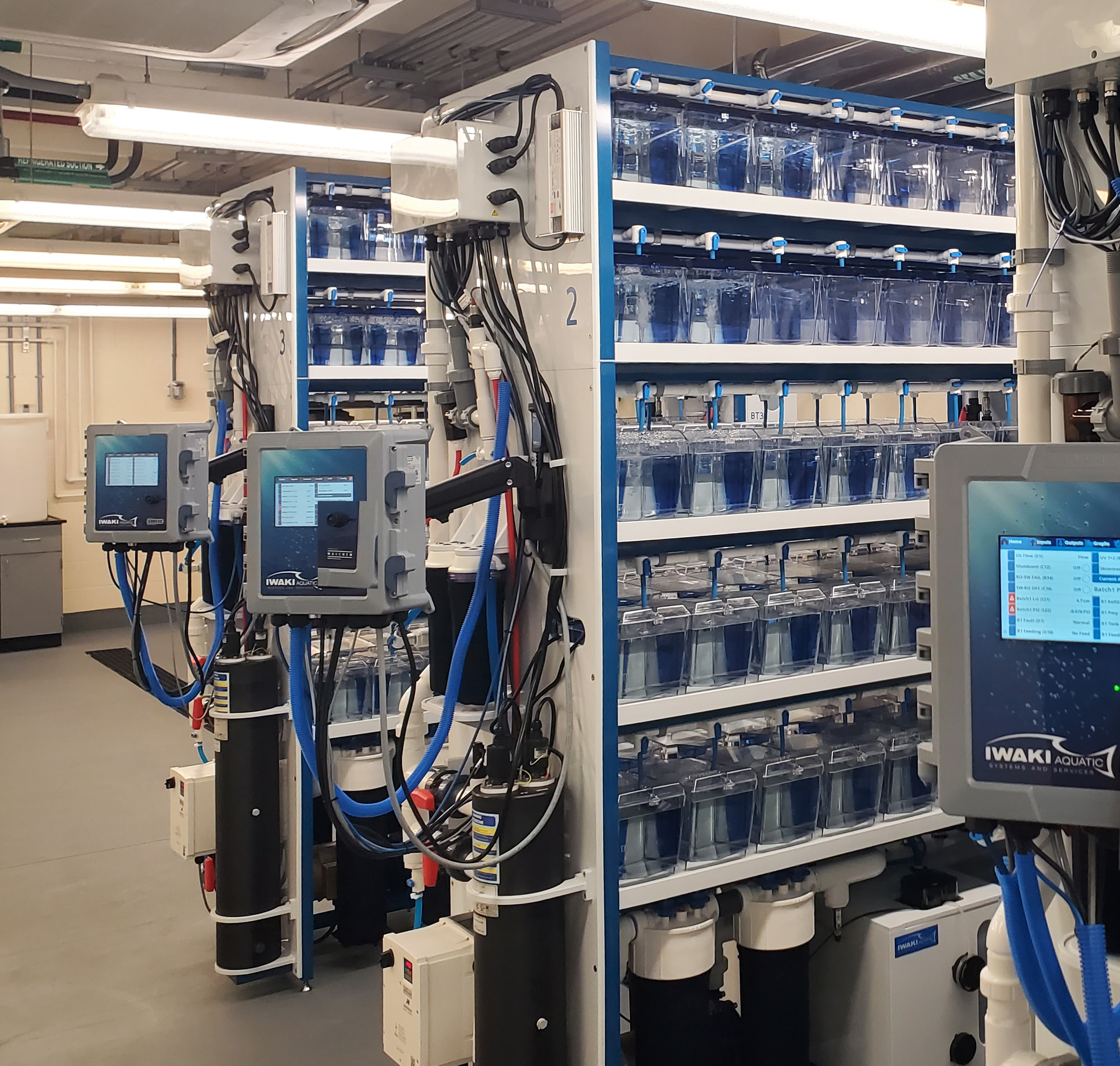

Iwaki Aquatic Double Zebrafish Multi-Rack Systems

Item#: Custom Designed Multi-Rack Systems

The Iwaki Aquatic Double Zebrafish Multi-Rack System is a high-capacity, modular aquatic housing solution engineered for precision, reliability, and scalability in zebrafish research. Available in side-by-side, back-to-back, and L-shaped configurations, each system features constant flow technology with speed-controlled Iwaki pumps that maintain stable water conditions across all tanks. The powder-coated aluminum racks with leveling feet and open shelving provide easy access, while the modular design allows adjustable shelf spacing and future expansion. Its advanced filtration includes a moving bed biofilter, stainless steel UV sterilizer, and multi-stage carbon and micron filters for superior water quality. Durable polycarbonate tanks with self-cleaning baffles, locking lids, and autoclavable components ensure easy maintenance and fish safety. With the Iwaki Aquatic Life Support Controller, users can remotely monitor and manage water quality parameters with real-time alerts and data tracking, delivering consistent, worry-free performance for large-scale aquatic research programs.

REQUEST PROPOSAL

ITS-Z Double 5 or 6 Shelf Side-by-Side System

Tank Options	2 Liter	4.5 Liter	9 Liter
Tank Quantity	160	80	40
Zebrafish Capacity @ 10 Fish/Liter	3,200	3,600	3,600
Total System Volume (Liters)	470	510	510
Total Tank Volume (Liters)	320	360	360
Turnover Rate per Hour	6
UV Dose Rate uW-sec/cm2 (*EOLL 12 months)	120,000
Mechanical Filter, 50 Micron	2.6 m2
Activated Carbon Filter	1,200 grams
	Width	Depth	Height
System Dimensions (cm)	361	36	203-231
System Dimensions (inches)	142	14	80-91
Operating Weight with 4.5L or 9L Tanks	790 Kg, 1,741 Lbs
Voltage/Hertz/Amps with Heater	120/60/20 or 230/50/10

ITS-Z Double 5 or 6 Shelf Back-to-Back System

Tank Options	2 Liter	4.5 Liter	9 Liter
Tank Quantity	192	96	48
Zebrafish Capacity @ 10 Fish/Liter	3,840	4,320	4,320
Total System Volume (Liters)	534	582	582
Total Tank Volume (Liters)	384	432	432
Turnover Rate per Hour	6
UV Dose Rate uW-sec/cm2 (*EOLL 12 months)	110,000
Mechanical Filter, 50 Micron	1.85 m2
Activated Carbon Filter	600 grams
	Width	Depth	Height
System Dimensions (cm)	201	73	229-259
System Dimensions (inches)	79	28.5	90-102
Operating Weight with 4.5L or 9L Tanks	870 Kg, 1,918 lbs
Voltage/Hertz/Amps with Heater	120/60/16 or 230/50/8

Available in side-by-side, back-to back, and L-shaped configurations
All systems feature constant flow technology with Iwaki Aquatic pumps that are speed controlled based on system pressure to maintain constant flow to the fish holding tanks
Powder coated aluminum racks with leveling feet
Open shelving provides easy access to tanks, water feed, and drain manifolds
Available shelf spacing options for various clearances above holding tanks
Modular rack design allows additional tank holding levels to be added to the top of the rack and allows the rack system to be easily reconfigured as your lab needs change
System plumbing is designed with unions in strategic locations so the entire system can be easily disassembled for cleaning
Titanium heater standard for 5C heat-up with titanium chiller options

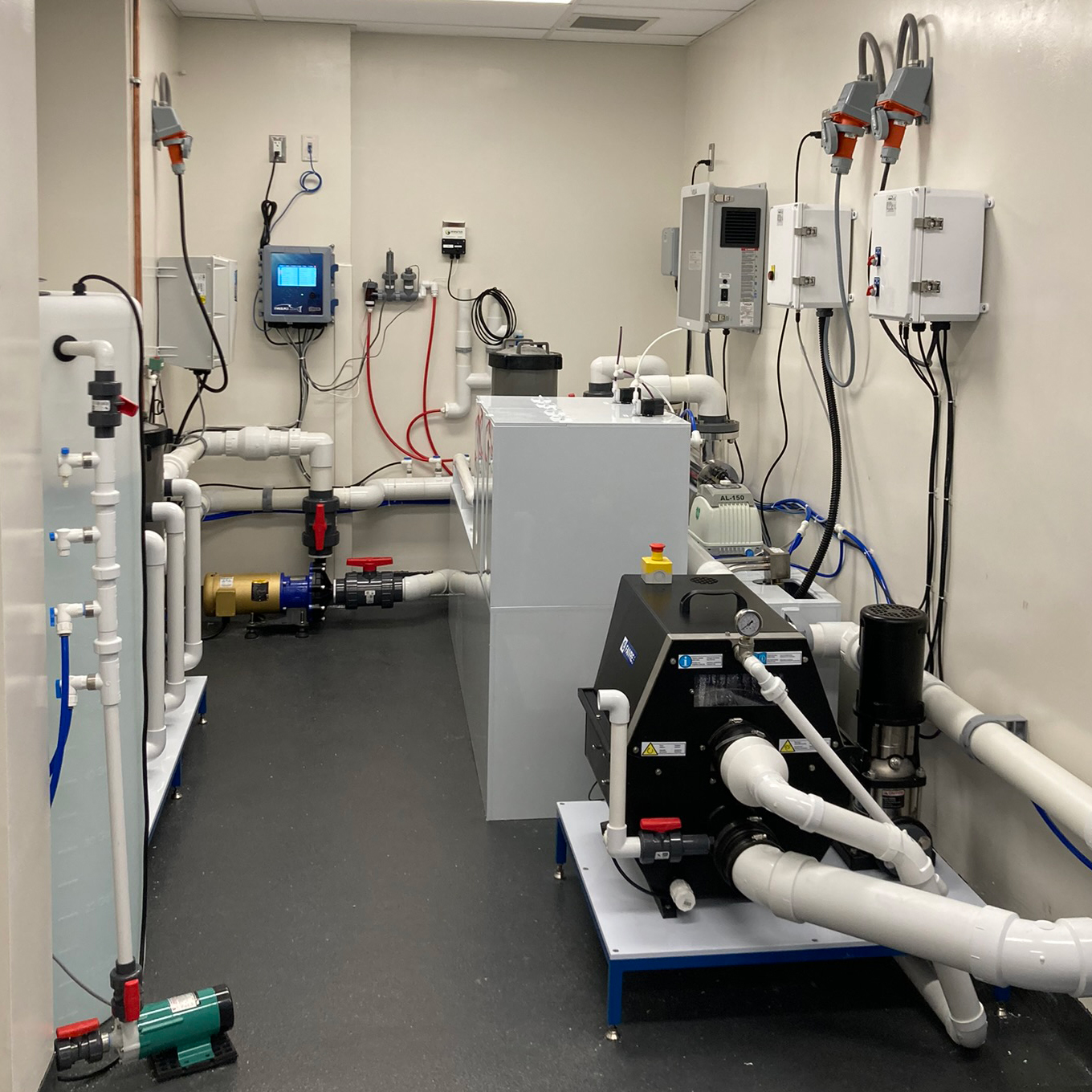

Filtration System

Low maintenance oversized moving bed biofilter
Stainless steel UV unit
Large capacity 50-micron cartridge filters
Large capacity activated carbon filters
Submerged 200 micron pre-filter bags

Innovative Tank Design

2 liter, 4.5 liter, and 9 liter polycarbonate tanks
Innovative adult baffle design with vertical tube that provides self-cleaning flow for the removal of settleable solids.
Tank and rack combine to create 5-degree slope towards tank vertical tube drain for improved solids removal efficiency
Locking lid ensures proper placement, security and prevents fish escape
Three-piece tank assembly (tank, lid, and baffle) are autoclavable and easy to clean with no recesses or complicated parts
Larval baffles are color coded for easy identification of the 400, 700, and 1000 micron sizes. Tanks include two slots for larval baffle placement

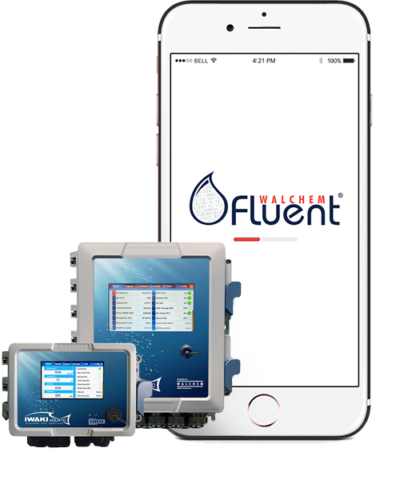

Iwaki Aquatic Life Support Controller

Monitor and control your system remotely with any internet ready device and our powerful cloud based software platform
Sends email or SMS text alerts when parameters are out of range
Chart/graph water quality parameters over time. Up to 90 days with 15 minute sampling intervals
Standard with pH, temperature, conductivity sensors and dosing control
System includes level and flow sensors for safety and shut-down of electrical components in the event of a low water or low flow situation
