ELPRO LIBERO W Independent Monitoring Solution for Rooms & Equipment

Item#: 801415

LIBERO W is the most versatile solution for pharmacies, clinical sites and laboratories. Wireless and battery operated; there is no need for a complicated installation. Place the sensor in the refrigerator or the piece of equipment you want to monitor, start the LIBERO W base station and you are up and running in no time. Use a preconfigured device which is ready to go or take advantage of different reporting options and customize the device exactly to your application. For a safe and regular readout the device features a reminder function and an integrated USB cable. Peace of mind for your critical environment.

$464.73

Add to wishlist
REQUEST PROPOSAL
Supplier:
  • Type: Wireless PDF datalogger consisting of sensor and base station
  • Application area: Temperature monitoring for refrigerators, transport boxes, incubators or climate chambers.
  • Recording options and mode: Multiple use: start / stop or loop mode
  • Type of probe: Internal NTC
  • Measurement range: -35 °C+50 °C
  • Measurement accuracy:
    • ±1.0 °C in the range between -35.0 °C and -10.1 °C
    • ±0.5 °C in the range between -10.0 °C and -0.1 °C
    • ±0.4 °C in the range between 0.0 °C and +25.0 °C
    • ±0.8 °C in the range between +25.1 °C and +50.0 °C
  • Operating Range: 0 °C..+50 °C
  • Measurement interval:  1 min. to 60 mins.
  • Run-time (memory capacity): 2 years using 15min. measurement intervals (70,000 measuring points in the base station and up to 2,200 measuring points as buffer in the sensor)
  • Exchangeable Batteries:
    • Base station: 3 x alkaline AAA
    • Sensor: 2 x alkaline AAA or 2 x lithium AAA (for freezer applications)
  • Certificate: llac/SCS/DAkkS/NIST/UKAS/ISO 17025 traceable Production Calibration Certificate
  • Programmable alarms:
    • 8 Temperature alarm levels with single or cumulative alarm delays
    • 2 Temperature thresholds with alarm delay
  • Programmable warnings:
    • Temperature warnings
    • Read-out reminder
    • Calibration reminder
    • No connection warning
  • Display: Multifunction LCD, size: 30 x 80mm (1.26 x 3.15 inch)
  • Display functionality:
    • Status: OK, WARNING, ALARM
    • Current temperature measurement
    • Indication on actual temperature zone
    • Audio alarm off
    • Wireless connection strength
    • Battery replacement due
    • Read-out due
  • Report:
    • Built-in PDF file generator automatically establishes an evaluation report with embedded data upon connection to an USB port. Complies with the ISO standard 19005-1 Document Management for the long- term preservation of electronic documents (PDF/A) and FDA 21 CFR Part 11.
    • 4 report types:
      • Daily min/max report
      • Status report
      • All data report
      • Event report
  • Warning | alarm signaling: Audio-visual warnings and alarms (LED, buzzer)
  • Case | dimension | weight:
    • Base Station- ABS plastic material | 115 x 82.5 x 27 mm (4.53 x 3.25 x 1.06 inch) | 195 g (6.88 oz)
    • Sensor: ABS plastic material | Ø 73 mm (2.87 inch), 17 mm (0.67 inch) | 70 g (2.47 oz)
  • Protection Class: Base station: IP 54 / NEMA 13 | Sensor: IP 67 / NEMA 6
  • Data logger configuration and additional analysis software: liberoCONFIG software to create, store and manage individual settings in a logger profile as well as SmartStart, a liberoCONFIG component allowing a safe and quick application of profiles to PDF Logger. elproVIEWER software to access and export embedded data of PDF report, for data analysis and comprehensive report features.
  • Technical data wireless connection: Connection between sensor and base station: wireless technology standard to exchange data over short distances in the range of 2.4 GHz.
  • Conformity: CE | FCC | Technical Conformity Mark
  • Simple installation without cables
  • Independent of internet and external power supply
  • Uninterrupted record of measuring values
  • Automatic and reliable min/max temperature list
  • 100 % compliance for pharmacies and clinical sites

LIBERO W 801415 Independent Monitoring Solution Spec Sheet

Download

LIBERO W 801415 Independent Monitoring Solution Data Sheet

Download

LIBERO W 801415 Operation Manual

Download

LIBERO W PDF Report Data Example

Download

Request a Proposal

Related Products

  • TraceableGO™ Bluetooth Data Logging Thermometers, 1 Bullet (-50°C to 70°C)

    Item #: BSI3-6536 $93.00 $88.35 VIEW PRODUCT

  • TraceableGO™ Bluetooth Data Logging Thermometers, 1 Bottle (-50°C to 70°C)

    Item #: BSI3-6538 $114.00 $108.30 VIEW PRODUCT

  • TraceableGO™ Bluetooth Data Logging Thermometers, 1 Stainless Steel Probe (-90°C to 100°C)

    Item #: BSI3-6539 $174.00 $165.30 VIEW PRODUCT

  • TraceableLIVE® ULT Temperature Wi-Fi Datalogging Thermometer with Remote Notification, 1 Stainless Steel Probe (–90.00 to 105.00°C)

    Item #: BSI3-6510 $382.00 $362.90 VIEW PRODUCT

  • TraceableLIVE® Liquid Nitrogen Datalogging Traceable Thermometer (1 Probe)

    Item #: BSI3-6512 $459.00 $436.05 VIEW PRODUCT

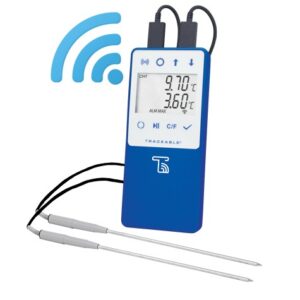

  • TraceableLIVE® WiFi Datalogging Refrigerator/Freezer Thermometer with Remote Notification, 2 Bottle probes with Disconnecting Cables (-50°C to 60°C)
