- Storage Capacity:
- 1.0 mL Azenta Cryotubes- 52,136
- 2.0 mL Azenta Cryotubes- 26,600
- 25 mL Cassettes- 1,520
- 50 mL Cassettes- 760
- Box Level Retrieval Speed- <60 seconds
- Labware Types- Box, up to 50 mL Cassettes, SBS*
- System Dimensions:
- Height- 107.9" (2,741mm)
- Width- 45.8" (1,163mm)
- Depth- 58.9" (1,496mm)
- Empty System Weight- 1,497l bs (680 kg)
- Full System Weight (estimated)- 2,155 lbs (979kg)
- Maximum floor load (estimated)- 116 lbs/ft (563 kg/m)
- Electrical:
- Voltage- 110V, single phase
- Power Output (Idle)- 100 watts
- Power Output (MAX)- 200 watts
- Connection Type/Size- 1/2” NPT Male Fitting to existing LN2 Supply Line
- LN2 Supply Pressure (Open Valve)- 22 - 35 psig (1.52-2.41 bar)
- LN2 Evaporation Rate/day (Nominal)- 9.9L/day
- Static Holding Time Vapor-15 days to -135°C
- Operating Environment:
- Temperature- 65°F - 80°F (18°C - 27°C)
- Humidity- Max 50% rH (non-condensing)
- Operating Temperature- -310°F or lower (-190°C or lower)
- Warranty: 1-Year; includes onsite service, travel, and spare parts.
- Installation and operator training included
- Regulatory Compliance: China RoHS, Conflict Materials, EU REACH, EU RoHS, CE Mark Directives

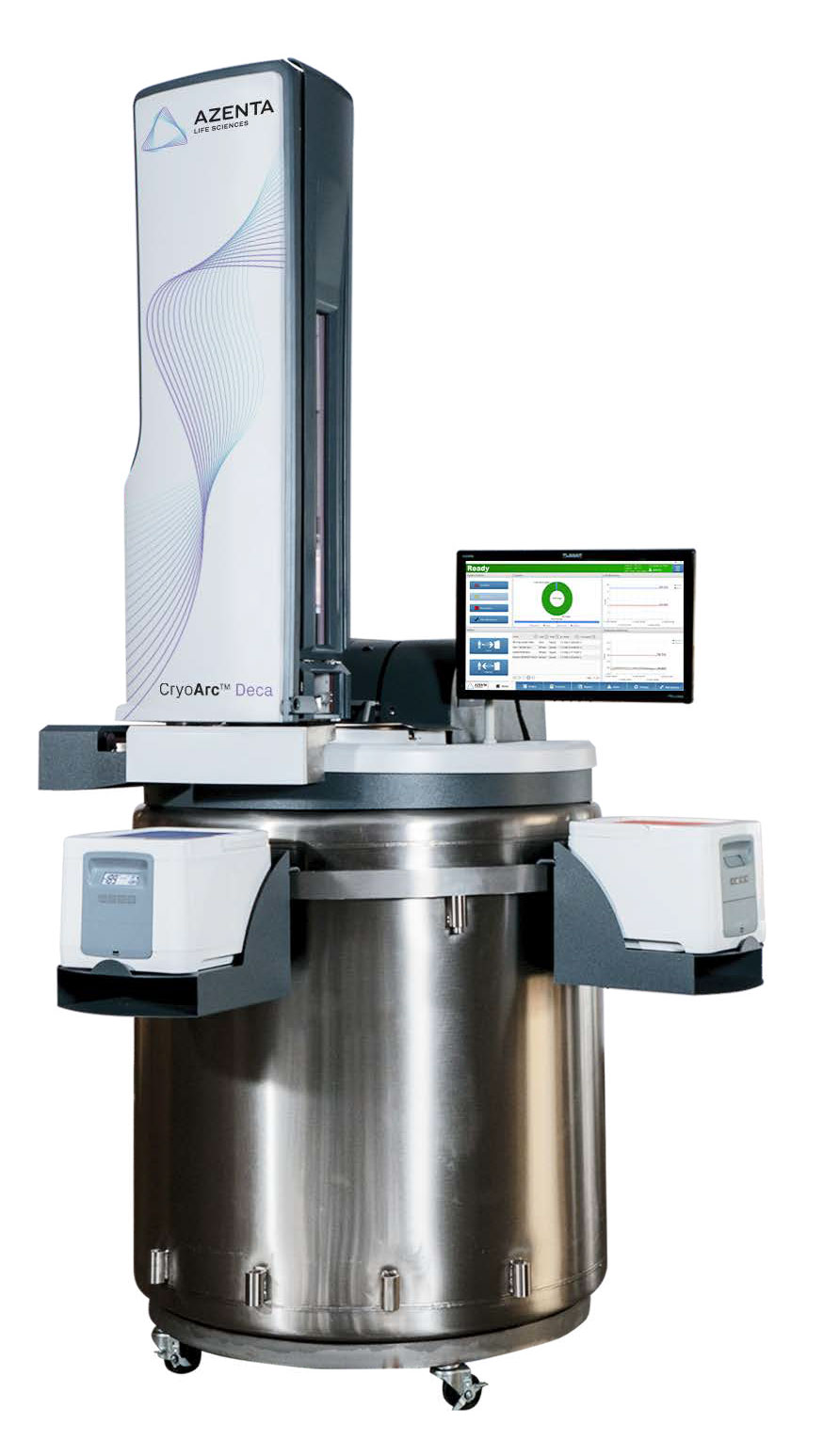

CryoArc™ Deca -190°C LN2-Based Automated Storage System (Capacity: 26,600 x 2.0ml vials)
Item#: CryoArc DecaThe CryoArc Deca automated cryogenic preservation solution is ideal for sample management from discovery to clinicals. Built with best-in-class performance, Deca safeguards fragile cellular products and other temperature-sensitive biosamples along with comfortable user convenience.
- For labs with medium sample collections including biobanks
- Full, real-time inventory control with LIMS connectivity
- Supports cold-chain management strategies
- Rapid cryo sample retrieval without ergonomic risks
Integrated CryoArc Software:
- Tracks individual sample location, sample movement, and user access over the sample’s lifetime
- Captures real-time environmental data including temperature, unexpected events, alarms, LN2 usage, and LN2 levels
- Supports 21 CFR Part 11 compliance
- Optional library management allows users to partition the storage space and assign access privileges to individual or groups of users
- Optional alerts management enables custom alert configurations and notifications via email or mobile devices in response to system behavior
Remote Monitoring Portal
- Simplifies cryo freezer maintenance across your lab or enterprise
- Empowers real-time cryogenic storage system monitoring at any time and from anywhere in the world
- Communicates critical at-a-glance metrics with text or email alerts if conditions change
FreezerPro Inventory Management
- Facilitates inventory tracking, robust reporting, detailed searches, and audit trails
- Seamlessly integrates with CryoArc Software, along with other Azenta automated storage systems and devices to enhance cold chain management convenience
- Supports 21 CFR Part 11 compliance along with Parts 21, 58, 210, cGLP/cGMP, and Section 508 accessibility guidelines
- Offers high security with remote access
- Scales to the changing needs of lower throughput labs up to large central biorepositories
- Accepts a wide range of labware
- Single interface and familiar software when adding multiple units – including our smaller CryoArc Pico and larger CryoArc Tera and CryoArc Tera for Cassettes models – to your lab or enterprise
- Efficient space use and rapid system integration
