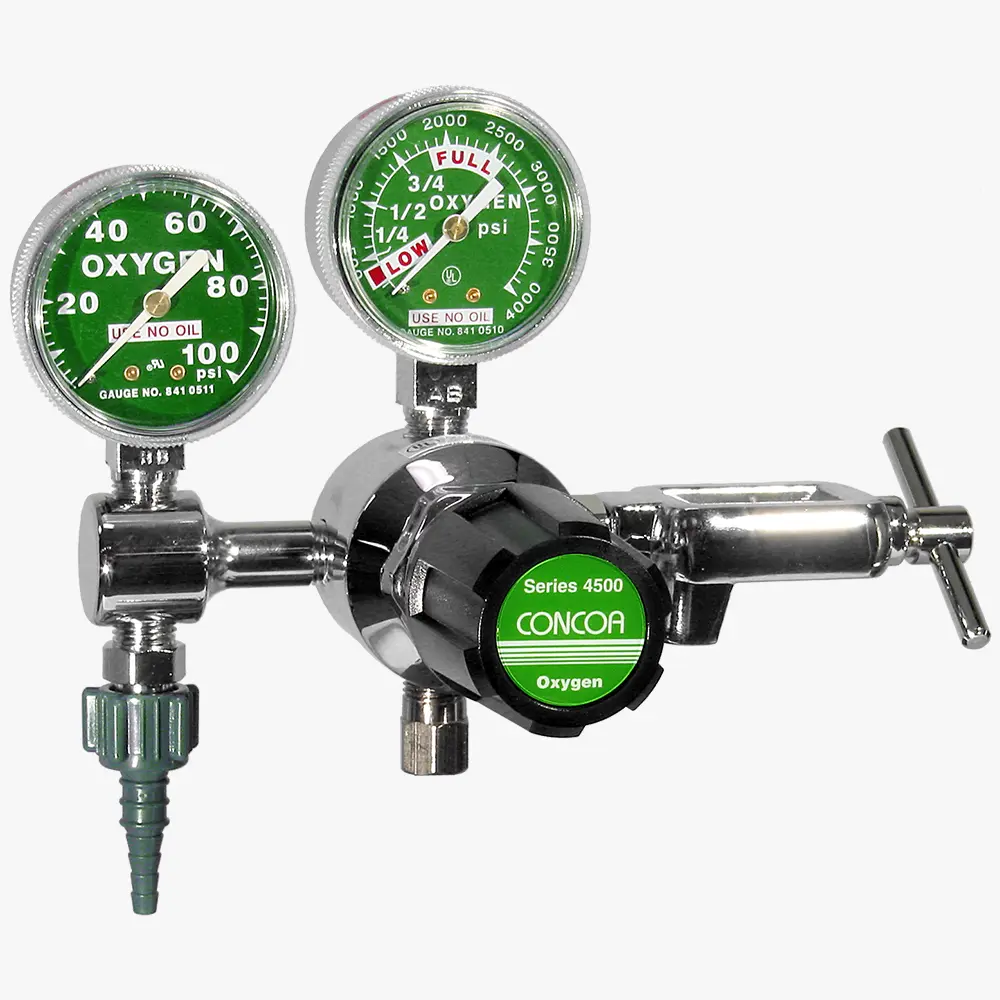

Concoa Medical Oxygen Regulator

Item#: MedicalOxygenRegulator

Medical oxygen regulators include a variety of styles and pressure and flow ranges. Standard-size medical oxygen regulators include flowgauge, flowmeter, and adjustable and preset pressure regulators. Lightweight and compact, the mini-med regulator is designed for portable emergency use and includes adjustable and preset flowrate models. Pediatric flowgauge regulators are specifically designed for infant or pediatric care. Medical oxygen regulators are designed for small, medium, or large cylinder oxygen therapy applications. They are ideal for home health care, hospital labs, pediatric care, ambulance or emergency rescue services, and other professional health care facilities. CONCOA medical oxygen regulators are FDA-listed for therapeutic use. CONCOA regulators may not conform to local requirements for medical gas use outside of the United States, and no CONCOA regulator is CE-listed for medical applications in Europe.

REQUEST PROPOSAL

Supplier: Concoa

Max Inlet Pressure: 3000 PSIG (210 BAR)
Gas service: Medical oxygen
Body: Chrome-plated brass barstock
Bonnet: Chrome-plated, die-cast zinc
Outlet Connection: DISS 1240
Gauges: 2 in plated stainless steel case; 1.5 in plated stainless steel case (mini-med regulators)
Seat: PTFE
Filter: 25-micron sintered bronze
Accuracy: Grade B ±3/2/3% of full scale
Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; FDA-listed; CRN OH5216.5R2; CRN OF2026.2 (WIKA gauges); CRN OF8241.5 (Ametek gauges)

Ordering Information:

Part Number	Description	Flow Range	Inlet Connection	Flowmeter/Gauges
8062550-01-1	Mini-Med Preset Flowgauge Regulator	6 LPM	CGA 870 (Yoke)	No Outlet Gauge and 0-4000 PSIG (276 BAR) Inlet Gauge
8062561-01-1	Mini-Med Adjustable Flowgauge Regulator	2-15 LPM	CGA 870 (Yoke)	2-15 LPM Flowgauge and 0-4000 PSIG (276 BAR) Inlet Gauge
8062562-01-1	Mini-Med Adjustable Flowgauge Regulator	2-15 LPM	CGA 540	2-15 LPM Flowgauge and 0-4000 PSIG (276 BAR) Inlet Gauge
8062563-01-1	Mini-Med Adjustable Flowgauge Regulator	2-15 LPM	CGA 540-H	2-15 LPM Flowgauge and 0-4000 PSIG (276 BAR) Inlet Gauge
8064527-01-1	Pediatric Flowgauge Regulator	0.1-1.0 LPM	CGA 540	0.1-1.0 LPM Flowgauge and 0-4000 PSIG (276 BAR) Inlet Gauge
8064528-01-1	Pediatric Flowgauge Regulator	0.1-1.0 LPM	CGA 540-H	0.1-1.0 LPM Flowgauge and 0-4000 PSIG (276 BAR) Inlet Gauge
8064529-01-1	Pediatric Flowgauge Regulator	0.1-1.0 LPM	CGA 870 (Yoke)	0.1-1.0 LPM Flowgauge and 0-4000 PSIG (276 BAR) Inlet Gauge
8064530-01-1	Flowgauge Regulator	2-15 LPM	CGA 540	2-15 LPM Flowgauge and 0-4000 PSIG (276 BAR) Inlet Gauge
8064531-01-1	Flowgauge Regulator	2-15 LPM	CGA 540-H	2-15 LPM Flowgauge and 0-4000 PSIG (276 BAR) Inlet Gauge
8064532-01-1	Flowgauge Regulator	2-15 LPM	CGA 870 (Yoke)	2-15 LPM Flowgauge and 0-4000 PSIG (276 BAR) Inlet Gauge
8064533-01-1	Flowgauge Regulator	1-5 LPM	CGA 540	1-5 LPM Flowgauge and 0-4000 PSIG (276 BAR) Inlet Gauge
8064534-01-1	Flowgauge Regulator	1-5 LPM	CGA 540-H	1-5 LPM Flowgauge and 0-4000 PSIG (276 BAR) Inlet Gauge
8064535-01-1	Flowgauge Regulator	1-5 LPM	CGA 870 (Yoke)	1-5 LPM Flowgauge and 0-4000 PSIG (276 BAR) Inlet Gauge
8064536-01-1	Flowgauge Regulator	1-8 LPM	CGA 540	1-8 LPM Flowgauge and 0-4000 PSIG (276 BAR) Inlet Gauge
8064537-01-1	Flowgauge Regulator	1-8 LPM	CGA 540-H	1-8 LPM Flowgauge and 0-4000 PSIG (276 BAR) Inlet Gauge
8064538-01-1	Flowgauge Regulator	1-8 LPM	CGA 870 (Yoke)	1-8 LPM Flowgauge and 0-4000 PSIG (276 BAR) Inlet Gauge
8064539-01-1	Flowmeter Regulator	1-15 LPM	CGA 540	1-15 LPM Flowmeter and 0-4000 PSIG (276 BAR) Inlet Gauge
8064540-01-1	Flowmeter Regulator	1-15 LPM	CGA 540-H	1-15 LPM Flowmeter and 0-4000 PSIG (276 BAR) Inlet Gauge
8064541-01-1	Flowmeter Regulator	1-15 LPM	CGA 870 (Yoke)	1-15 LPM Flowmeter and 0-4000 PSIG (276 BAR) Inlet Gauge
8064542-01-1	Flowmeter Regulator	1-8 LPM	CGA 540	1-8 LPM Flowmeter and 0-4000 PSIG (276 BAR) Inlet Gauge
8064543-01-1	Flowmeter Regulator	1-8 LPM	CGA 540-H	1-8 LPM Flowmeter and 0-4000 PSIG (276 BAR) Inlet Gauge
8064544-01-1	Flowmeter Regulator	1-8 LPM	CGA 870 (Yoke)	1-8 LPM Flowmeter and 0-4000 PSIG (276 BAR) Inlet Gauge
8064545-01-1	Preset Pressure Regulator	50 PSIG (3.5 BAR)	CGA 870 (Yoke)	No Outlet Gauge and 0-4000 PSIG (276 BAR) Inlet Gauge
8064548-01-1	Adjustable Pressure Regulator (no flow control)	0-100 PSIG (0-7 BAR)	CGA 540	0-100 PSIG Outlet Gauge and 0-4000 PSIG (276 BAR) Inlet Gauge
8064549-01-1	Adjustable Pressure Regulator (no flow control)	0-100 PSIG (0-7 BAR)	CGA 540-H	0-100 PSIG Outlet Gauge and 0-4000 PSIG (276 BAR) Inlet Gauge
8064550-01-1	Adjustable Pressure Regulator (no flow control)	0-100 PSIG (0-7 BAR)	CGA 870 (Yoke)	0-100 PSIG Outlet Gauge and 0-4000 PSIG (276 BAR) Inlet Gauge
8064551-01-1	Preset Pressure Regulator	50 PSIG (3.5 BAR)	CGA 540	No Outlet Gauge and 0-4000 PSIG (276 BAR) Inlet Gauge
8064552-01-1	Preset Pressure Regulator	50 PSIG (3.5 BAR)	CGA 540-H	No Outlet Gauge and 0-4000 PSIG (276 BAR) Inlet Gauge
