- Sound: 93 db audible alarm
- Power input: 96-264 VAC external power supply (international adapters included)
- Outputs: 3 NO/NC dry contacts (selectable)
- Relay inputs: 2 NO/NC contacts (selectable)
- Transducer inputs: 2 independent inputs for 4-20 mA transducers
- Relay contact rating: 1A @24 VDC Max
- Dimensions: 4.72 in x 8.7 in x 2.5 in (119.88 mm x 221.98 mm x 63.5 mm)

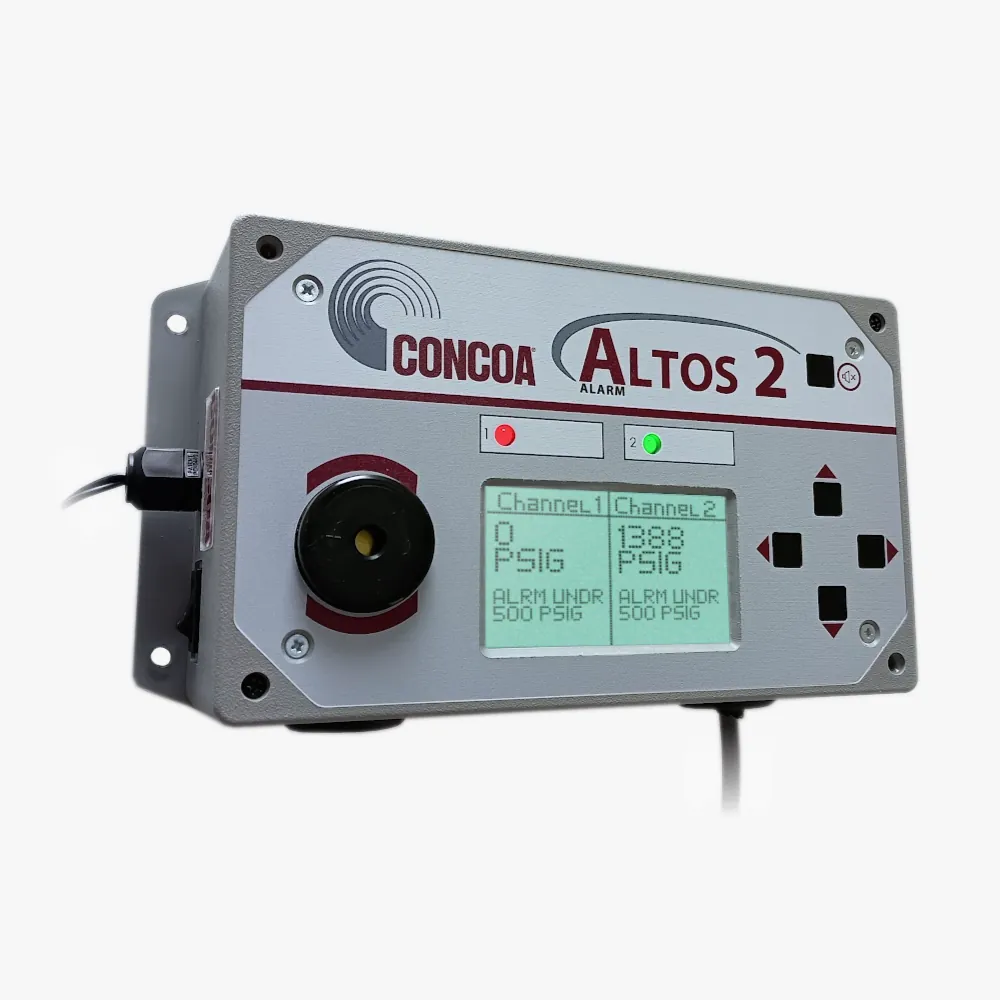

Concoa Altos 2™ Cylinder Pressure Alarm
Item#: 5750025-01-24VThe Altos 2™ System Monitor reports the status of up to two individual points of observation. Ideal for monitoring automatic switchovers and other failsafe gas delivery installations with pressure switch or transducer pressure monitoring capability.
- Two input channels accommodate multiple sources
- Customizable system configuration supports application flexibility
- Adjustable alarm delay of up to 40 minutes permits time for transient events
- Configurable unit of pressure accommodates industrial environments
- 4-20 mA pressure transducer and pressure switch inputs support universal input capability
- Flame-retardant and UV stabilized polycarbonate resin enclosure offers improved durability and sturdiness for longer service life
Request a Proposal
