- Max inlet pressure: 3000 PSIG (210 BAR)
- Filter: 40-micron
- Cv: 1.0
- Temperature range: 0°F to 140°F (-18°C to 60°C)
- Inlet/Outlet connections: 1/2 in FNPT
- Valve bodies: Brass barstock
- Valve stems: 316L Stainless steel
- Valve seats: PCTFE
- Seals: PTFE, PCTFE, and FKM
- Power requirement: 110 or 240 VAC (terminal block provided with 1/2 in conduit hole)
- Communication connectivity: Two-channel NO/NC output relay alarm contacts
- Enclosure: NEMA 4, powder-coated steel
- Weight: 67 lbs (30.4 kg)
- Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; PED 2014/68/EU; CE marked; CRN OH17950.5

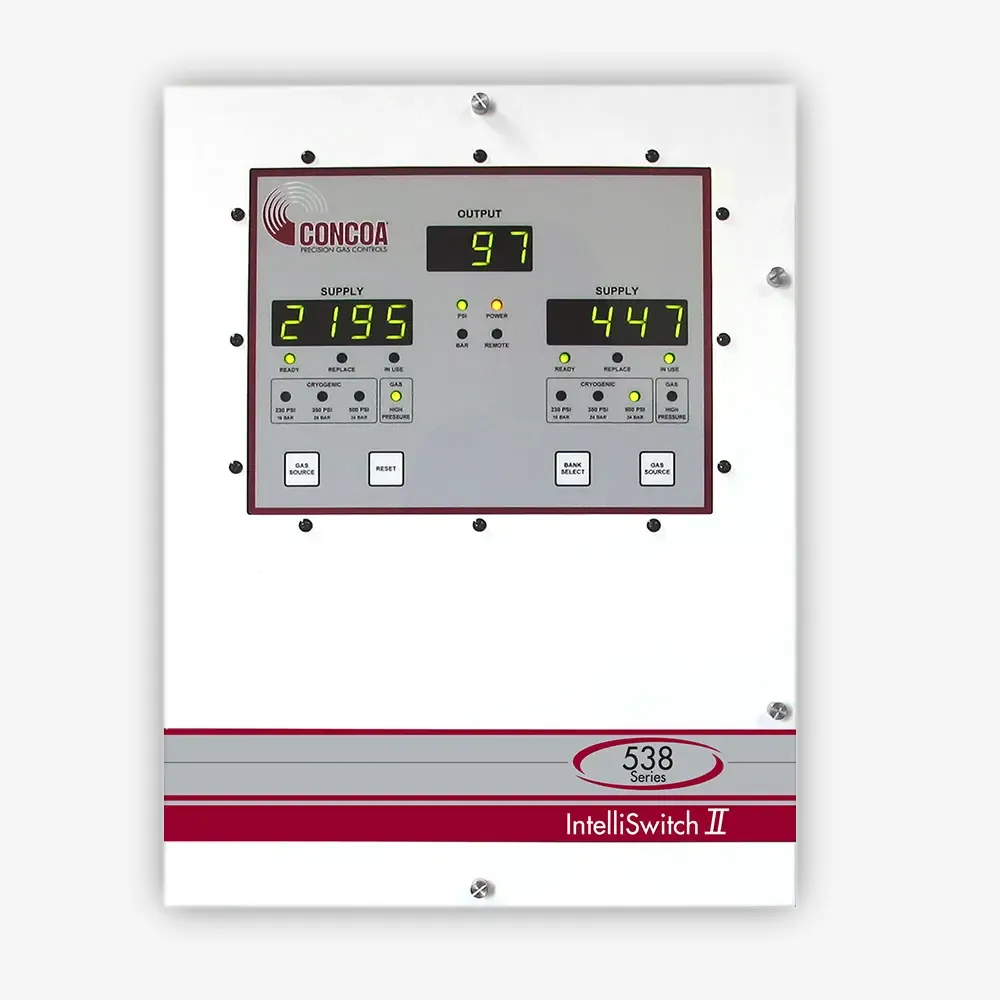

Concoa 538 Series IntelliSwitch II Electronic Gas Switchover
Item#: IntelliSwitch IIThe 538 Series IntelliSwitch™ II electronic gas switchover is a revolutionary, web-enabled gas management system. The IntelliSwitch II offers continuous gas pressure and flow control from either cryogenic liquid cylinders, high pressure gas cylinders, or any combination of both. The end user selects the mode of supply with the simple push of a button. The high purity gas switchover features a proprietary onboard web server technology allowing remote monitoring, secure system configuration, and email notification of real-time system status and events. CONCOA patented software technology ensures that every customer maximizes the use of liquid cylinder gases by eliminating the primary cylinders' residual return loss and economizing the reserve cylinders' excess pressure. In addition, the 538 Series IntelliSwitch II is designed to interface with the CONCOA Altos 2 remote alarm.
- Microprocessor Control provides fully automatic priority assignment
- Remote and Field-Adjustable Software permits process flexibility and remote monitoring
- On-Site or Remote Source Selection ensures effective management of liquid cylinder or high-pressure supply source
- On Board Web Server and Remote Software optimizes monitoring and control functions to streamline operations
- Low Loss Technology reduces residual return to lower operational costs
- Electronic Economizer eliminates liquid cylinder vent loss
- NEMA 4 Enclosure Standard protects against environmental factors
Typical Applications
- High Purity, Non-corrosive, Non-flammable Gas Supply
- Gas Chromatograph and Mass Spec Carrier and Support Gases
- Microbulk Changeover Supply
- Incubator Carbon Dioxide and Nitrogen Gas Supply
- Biotech, Pharmaceutical, and Forensic Gas Systems
- Central Gas Supply System for Laboratory, Research, or Process Plants
- Inductively Coupled Plasma (ICP) and ICP-Mass Spec Continuous Gas Supply
Request a Proposal
Related Products
-
Concoa 526 LC Series Pressure Differential Automatic Switchover System
Item #: 551Vacuum-JacketedHose-1 VIEW PRODUCT -

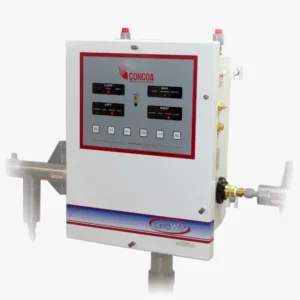

577 Series CryoWiz Cryogenic Switchover System
Item #: 5771113-01-100 VIEW PRODUCT -
Concoa 529 Series Cryogenic Transfer Hose
Item #: 529CryogenicTransferHose VIEW PRODUCT -
Concoa Altos 2™ Cylinder Pressure Alarm
Item #: 5750025-01-24V VIEW PRODUCT -
Concoa 551 Series Semi-Flexible Vacuum-Jacketed Hose
Item #: 551Vacuum-JacketedHose VIEW PRODUCT -

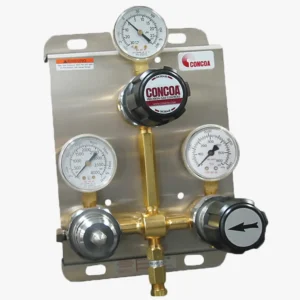

Concoa 526 LC Series Pressure Differential Automatic Switchover System
Item #: 526 LC Switchover VIEW PRODUCT -

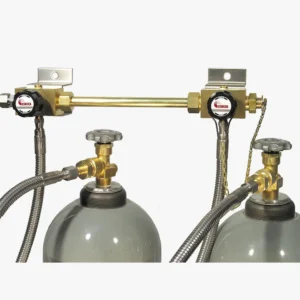

Concoa 52 Series Maniflex Manifold | Modular header system for high purity gas applications
