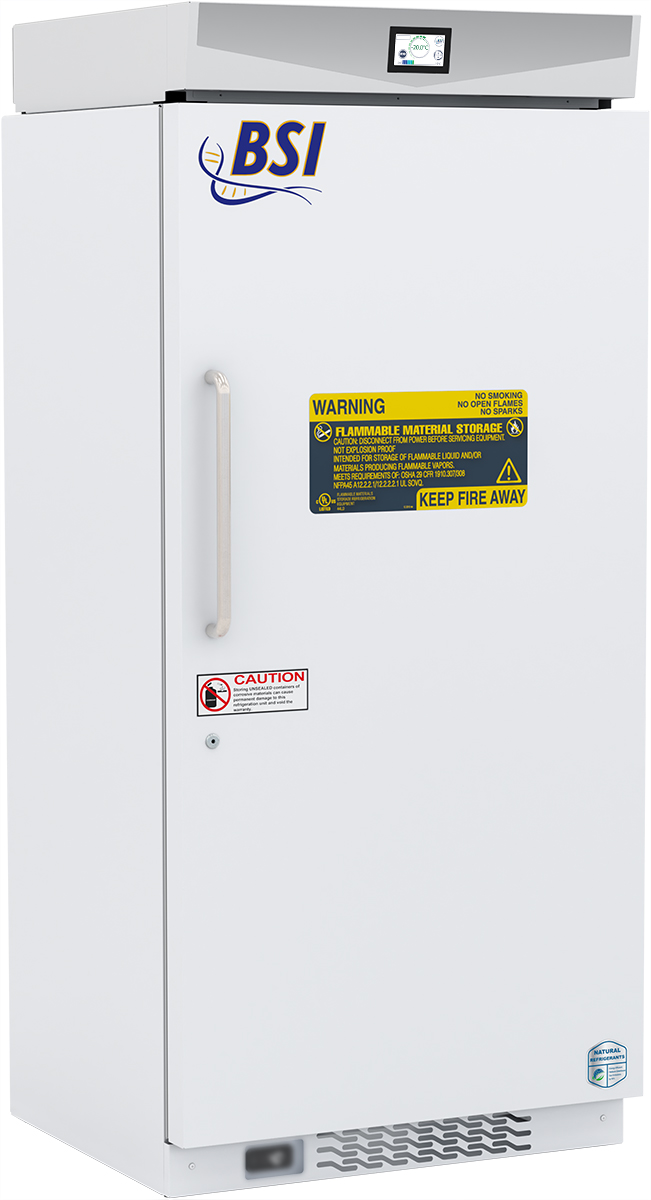

BSI Prime Touch Series 30 cu. ft. Flammable Storage Freezer (-20°C) with Natural Refrigerants | Manual Defrost

BSI Prime Touch Series 30 cu. ft. Flammable Storage Freezer (-20°C) with Natural Refrigerants | Manual Defrost

Item#: BSI-HC-FFP-30-TS

$15,430.00 $11,881.10

Add to wishlist
REQUEST PROPOSAL
Supplier:
  • Cu. Ft.: 30
  • Door(s): One solid swing, right hinged; stainless steel door handle; magnetic door gasket
  • Exterior Dimensions: 35.75" W x 35.5" D x 79" H (Door swing 30.5", Total open Depth 66")
  • Interior Dimensions: 32" W x 22.5" D x 61.75" H

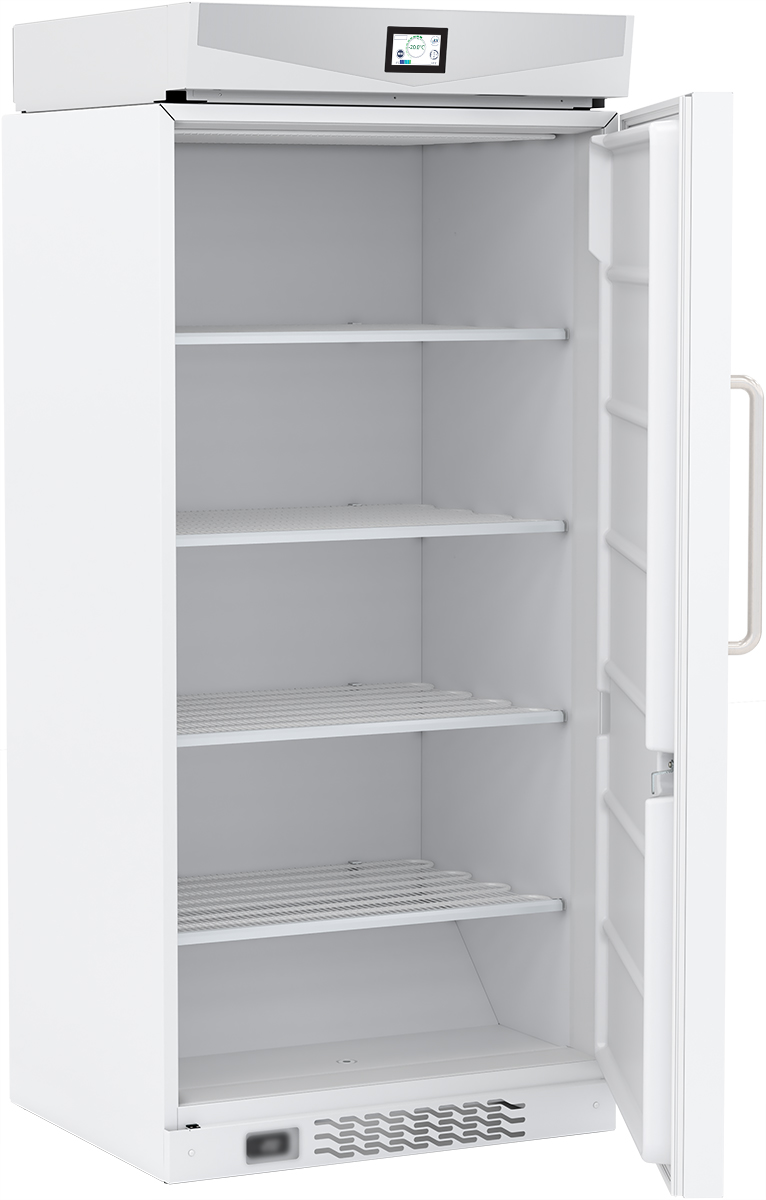

  • Shelves: Four (4) fixed evaporator shelves
  • Mounting & Installation: Leveling Legs
  • External probe access: 3/4" probe access port on rear wall
  • Insulation: EPA compliant high density urethane foam
  • Exterior Materials: Powder coated steel
  • Access Control: Keyed door lock
  • General Warranty: Two (2) year parts and labor warranty
  • Compressor Warranty: Five (5) year compressor parts warranty
  • Product Weight (lbs): 300
  • Shipping Weight (lbs): 330
  • Rated Amperage: 3.3 Amps
  • Power Plug/Power Cord: NEMA 5-15P plug, 6 ft long cord
  • Facility Electrical Requirement: 110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
  • Agency Listing and Certification: UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120 standard, in compliance with the requirements for Flammable Materials Storage Refrigerators as defined by NFPA 99 and 45
  • Uniformity (Cabinet air): +/- 2.5°C
  • Stability (Cabinet air): +/- 3.5°C
  • Maximum temperature variation (Cabinet air): 7.5°C Total
  • Energy Consumption (KWh/day): 7.7 kWh/day
  • Average Heat Rejection (BTU/hr): 1100 BTU/hr
  • Pull down time to nominal operating temp: 120 min (empty)
  • Compressor: Hermetic, variable speed
  • Refrigerant: EPA SNAP compliant R290 propane
  • Condenser: Static - exterior walls of cabinet with auxiliary fan
  • Evaporator: Evaporator shelves
  • Defrost: Manual Defrost
  • Controller technology: Microprocessor temperature controller with variable frequency compressor control
  • Battery Backup: Temperature display & alarm only (no active cooling)
  • Display Technology: Touch screen digital temperature display with user friendly interface, real-time operational display clock, active temperature scale bar display, resettable 1-point min/max history, digital 24- hour temperature chart, and temperature data logging
  • Adjustable Temperature Range: -15°C to -25°C
  • External alarm connection: Remote alarm contacts
  • Alarms: Audible and visual high and low temperature alarms, remote alarm contacts, sensor error alarm, power failure alarm, resettable 1-point min/max history, alarm validation (audible, visual, and remote alarm), alarm mute with ring back
  • Display Probe: Product simulator bottle with glass bead media
  • Disclaimers:
    • Defrosting of the unit will need to be performed periodically to prevent severe ice build-up.
    • Indoor use only, +18° C to +26° C (+65° F to +78° F), <70% RH
    • Specifications are subject to change.
    • Equipment requires 4” of clearance around back and sides of the unit for proper ventilation – improper installation will void the warranty and will lead
      to temperature maintenance issues, overheating and possible failure.
    • Performance claims are based on testing at 22°C ambient using unbuffered air temperatures in an empty freezer at steady state operation.
    • Performance may vary with environmental conditions, product load, or door openings.

Request a Proposal

Related Products

  • BSI Prime Series 30 cu. ft. Flammable Storage Freezer (-20°C) with Natural Refrigerants | Manual Defrost

    BSI Prime Series 30 cu. ft. Flammable Storage Freezer (-20°C) with Natural Refrigerants | Manual Defrost

    Item #: BSI-HC-FFP-30 $12,970.00 $9,986.90 VIEW PRODUCT

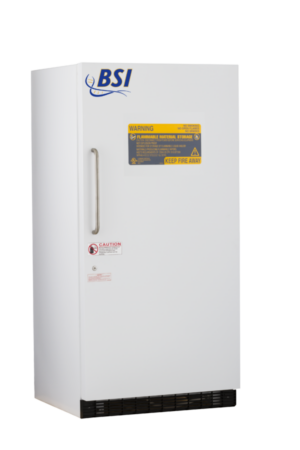

  • BSI 30 cu. ft. Standard Flammable Storage Freezer (-20°C) with Natural Refrigerants | Manual Defrost
