- Cu. Ft.: 30
- Door(s): One solid swing, right hinged; stainless steel door handle; magnetic door gasket
- Exterior Dimensions: 35.75" W x 35.5" D x 79" H (Door swing 30.5", Total open Depth 66")
- Interior Dimensions: 32" W x 22.5" D x 65" H
- Adjustable Temperature Range: 2°C to 10°C
- Shelves: Five adjustable
- Mounting & Installation: Leveling Legs
- Airflow Management: Forced draft circulation
- External probe access: 3/4" probe access port on rear wall
- Insulation: EPA compliant high density urethane foam
- Exterior Materials: Powder coated steel
- Access Control: Keyed door lock
- General Warranty: Two (2) year parts and labor warranty
- Compressor Warranty: Five (5) year compressor parts warranty
- Product Weight (lbs): 350
- Shipping Weight (lbs): 380
- Rated Amperage: 3.1 Amps
- Power Plug/Power Cord: NEMA 5-15P plug, 6 ft long cord
- Facility Electrical Requirement: 110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
- Agency Listing and Certification: UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120 standard, in compliance with the requirements for Flammable Materials, Storage Refrigerators as defined by NFPA 99 and 45
- Uniformity (Cabinet air): +/- 1.6°C
- Stability (Cabinet air): +/- 1.0°C
- Maximum temperature variation (Cabinet air): 3.6 °C Total
- Energy Consumption (KWh/day): < 1.7 KWh/day
- Average Heat Rejection (BTU/hr): 520 BTU/hr
- Pull down time to nominal operating temp: <35 min (empty)

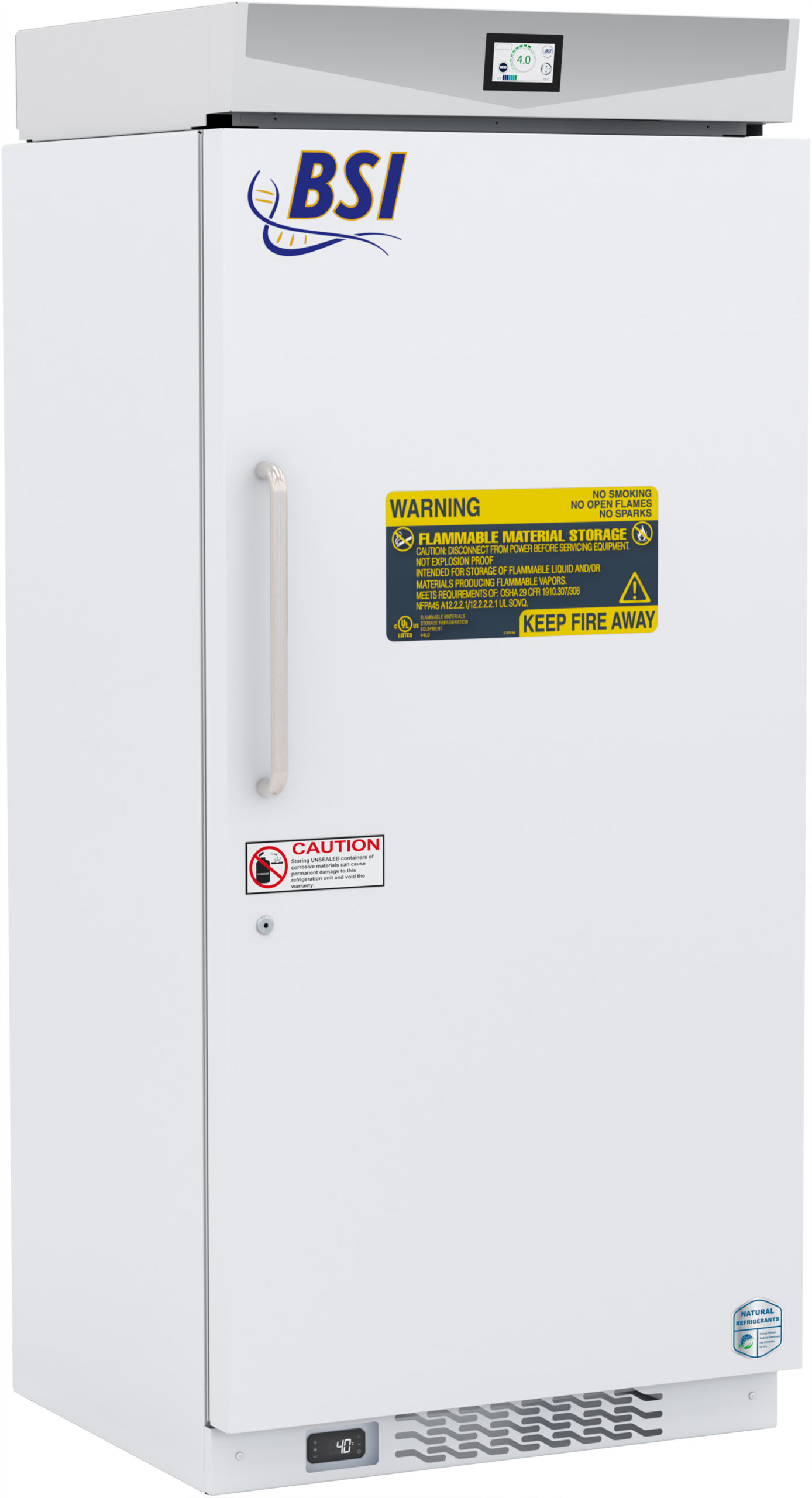

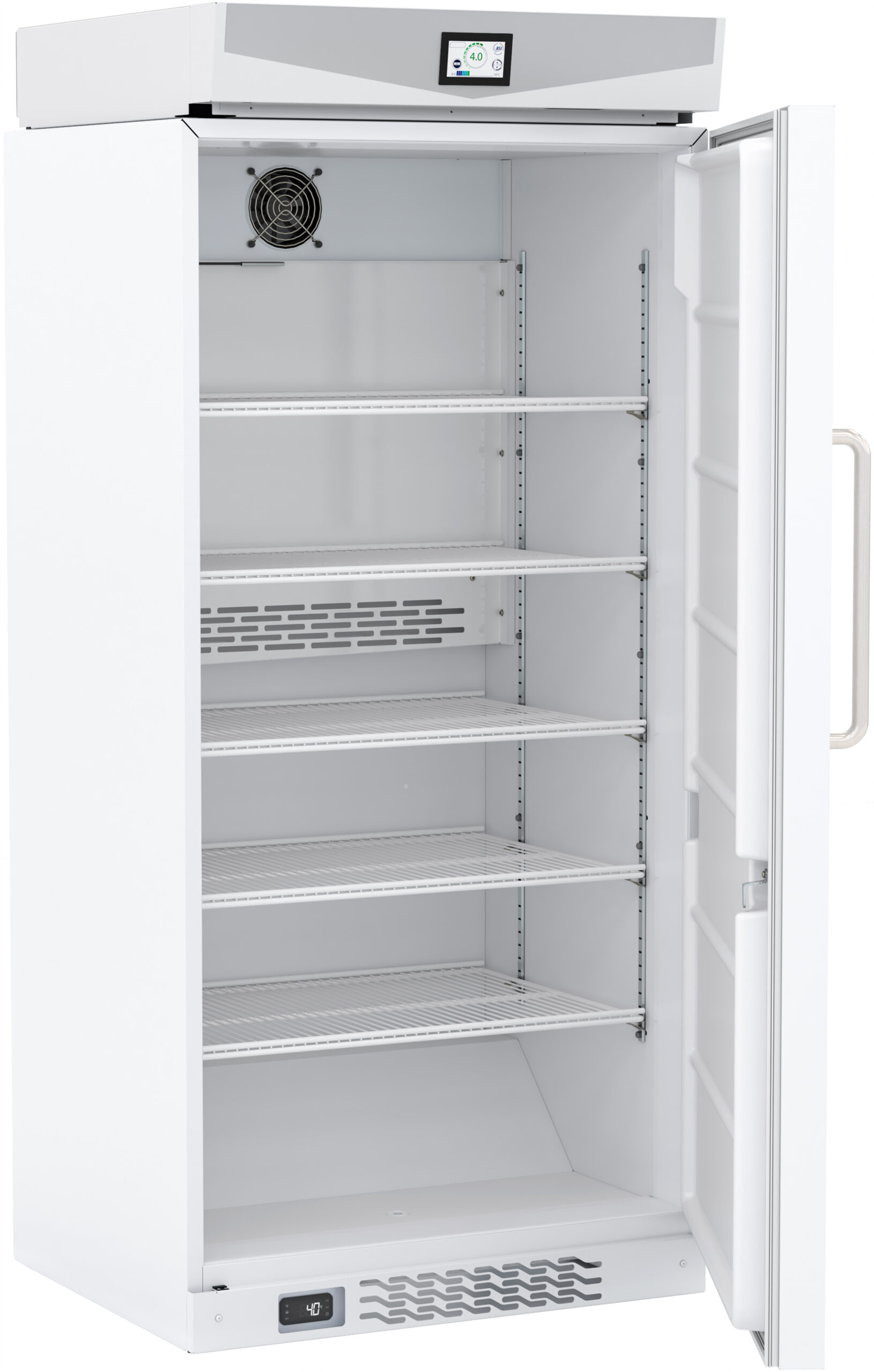

BSI Prime Series 30 cu. ft. Touchscreen Flammable Material Storage Refrigerator | Solid Door
Item#: BSI-HC-FRP-30-TSThis 30 cu. ft. touchscreen flammable storage refrigerator offers a cutting-edge solution for storing volatile materials in laboratory and industrial settings. This refrigerator provides precise temperature control through microprocessor technology. Experience tight temperature uniformity with an operation range of 2°C to 10°C. This advanced unit features an intuitive touchscreen digital display that offers a user-friendly interface including digital 24-hour temperature charting with data logging capabilities. For enhanced safety, it includes a comprehensive array of customizable audible and visual alarms, such as high/low temperature, sensor error, power failure, door ajar, and low battery alerts—all alarms including a battery backup for continuous monitoring. Utilizing EPA SNAP compliant hydrocarbon refrigerants, this unit minimizes environmental impact while maximizing energy efficiency. It features a durable white powder-coated steel exterior, with a keyed door lock for added security. Adjustable interior shelving allows for versatile organization. With its integrated alarms and enhanced safety features, the BSI-HC-FRP-30-TS delivers advanced performance for the safe storage of flammable substances.
$15,136.00 $11,654.72
- Compressor: Hermetic, variable speed
- Refrigerant: EPA SNAP compliant R600a Isobutane
- Condenser: Static - exterior walls of cabinet
- Evaporator: Fin and tube design, high efficiency fan, hazardous location rated
- Defrost: Off-cycle defrost, no heat added
- Controller technology: Microprocessor temperature controller with variable frequency compressor control
- Battery Backup: Temperature display and alarm only (no active cooling)
- Display technology: Touch screen digital temperature display with user friendly interface, real-time operational display clock, active temperature scale bar display, resettable 1-point min/max history, digital 24- hour temperature chart, and temperature data logging
- Temperature Setpoint Range Notes: Minimum temperature limited to avoid freezing
- External alarm connection: Remote alarm contacts
- Alarms: Adjustable alarm volume, Audible and visual high and low temperature alarms, sensor error alarm, power failure alarm, door ajar alarm, low battery alarm, alarm validation (audible, visual, and remote alarm), alarm mute with ring back, and customizable alarm time delay settings
- Display Probe: Product simulator bottle with glass bead media
- Disclaimers: Refrigerator requires a minimum 4” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) - improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
