- Cu. Ft.: 30
- Door(s): One solid swing, right hinged; stainless steel door handle; magnetic door gasket
- Exterior Dimensions: 35.75" W x 35.5" D x 72.5" H (Door swing 30.5", Total open Depth 66")
- Interior Dimensions: 32" W x 22.5" D x 61.75" H
- Shelves: Four (4) fixed evaporator shelves
- Mounting & Installation: Leveling Legs
- External probe access: 3/4" probe access port on rear wall
- Insulation: EPA compliant high density urethane foam
- Exterior Materials: Powder coated steel
- Access Control: Keyed door lock
- General Warranty: Two (2) year parts and labor warranty
- Compressor Warranty: Five (5) year compressor parts warranty
- Product Weight (lbs): 300
- Shipping Weight (lbs): 330
- Rated Amperage: 3.3 Amps
- Power Plug/Power Cord: NEMA 5-15P plug, 6 ft long cord
- Facility Electrical Requirement: 110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
- Agency Listing and Certification: UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120 standard, Units meet NFPA guidelines 45 and 70 for flammable materials
- Uniformity (Cabinet air): +/- 3°C
- Stability (Cabinet air): +/- 3°C
- Maximum temperature variation (Cabinet air): 7°C Total
- Energy Consumption (KWh/day): 4.9 kWh/day
- Average Heat Rejection (BTU/hr): 690 BTU/hr
- Pull down time to nominal operating temp: 65 min (empty)

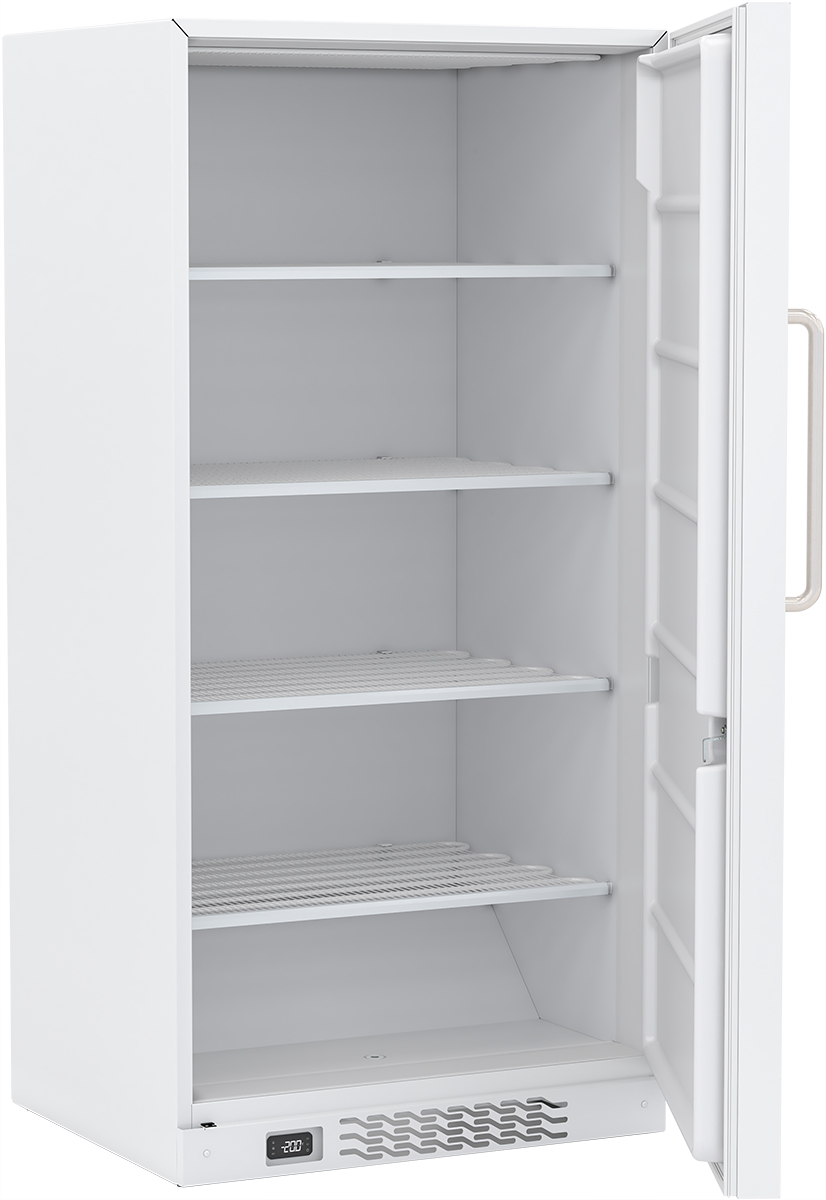

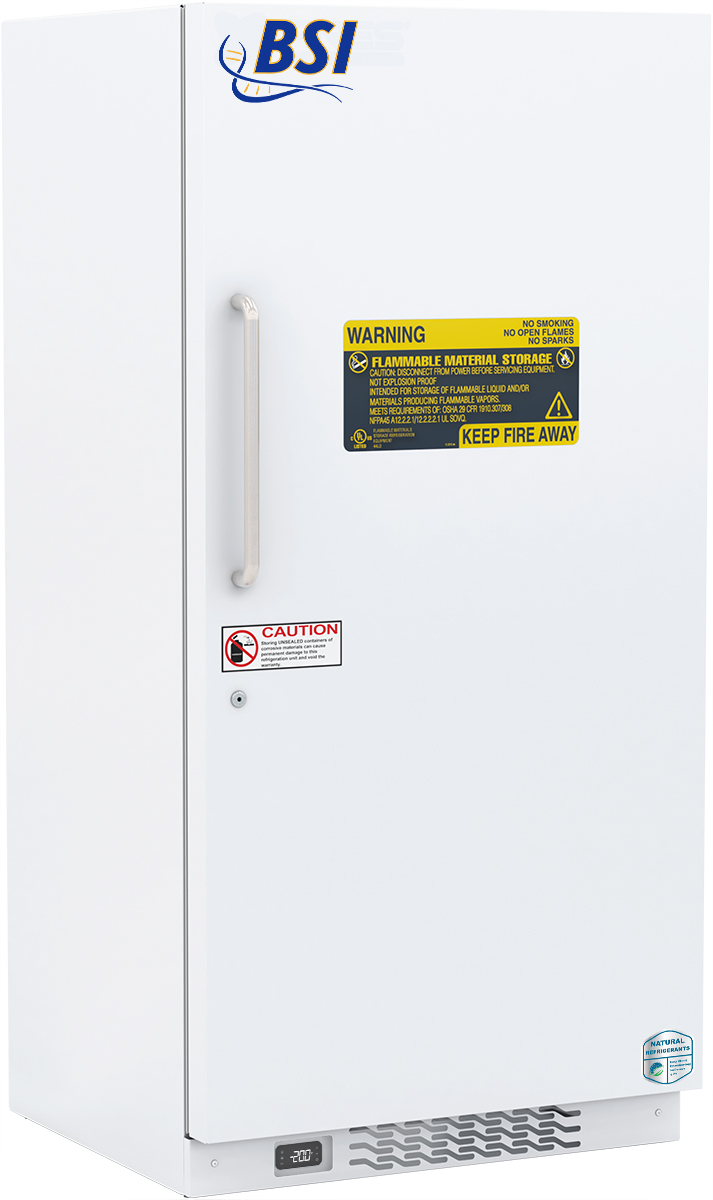

BSI 30 cu. ft. Standard Flammable Storage Freezer (-20°C) with Natural Refrigerants | Manual Defrost
Item#: BSI-HC-FFS-30$10,212.00 $7,863.24
- Compressor: Hermetic, variable speed
- Refrigerant: EPA SNAP compliant R290 propane
- Condenser: Static - exterior walls of cabinet with auxiliary fan
- Evaporator: Evaporator shelves
- Defrost: Manual Defrost
- Controller technology: Microprocessor temperature controller with variable frequency compressor control
- Adjustable Temperature Range: -15° C to -25° C
- Display Technology: Digital temperature display, sample simulated digital temperature display; .1° resolution
- External alarm connection: Remote alarm contacts
- Alarms: Audible and visual high/low-temperature alarms, door ajar alarm, remote alarm contacts
- Display Probe: Product simulator bottle with glass bead media
- Disclaimers:
- Defrosting of the unit will need to be performed periodically to prevent severe ice build-up.
- Indoor use only, +18° C to +26° C (+65° F to +78° F), <70% RH
- Specifications are subject to change.
- Equipment requires 4” of clearance around back and sides of the unit for proper ventilation – improper installation will void the warranty and will lead
to temperature maintenance issues, overheating and possible failure. - Performance claims are based on testing at 22°C ambient using unbuffered air temperatures in an empty freezer at steady state operation.
- Performance may vary with environmental conditions, product load, or door openings.
Request a Proposal
Related Products
-
BSI Prime Series 30 cu. ft. Flammable Storage Freezer (-20°C) with Natural Refrigerants | Manual Defrost
Item #: BSI-HC-FFP-30$12,970.00$9,986.90 VIEW PRODUCT -
BSI Prime Touch Series 30 cu. ft. Flammable Storage Freezer (-20°C) with Natural Refrigerants | Manual Defrost
Item #: BSI-HC-FFP-30-TS$15,430.00$11,881.10 VIEW PRODUCT -

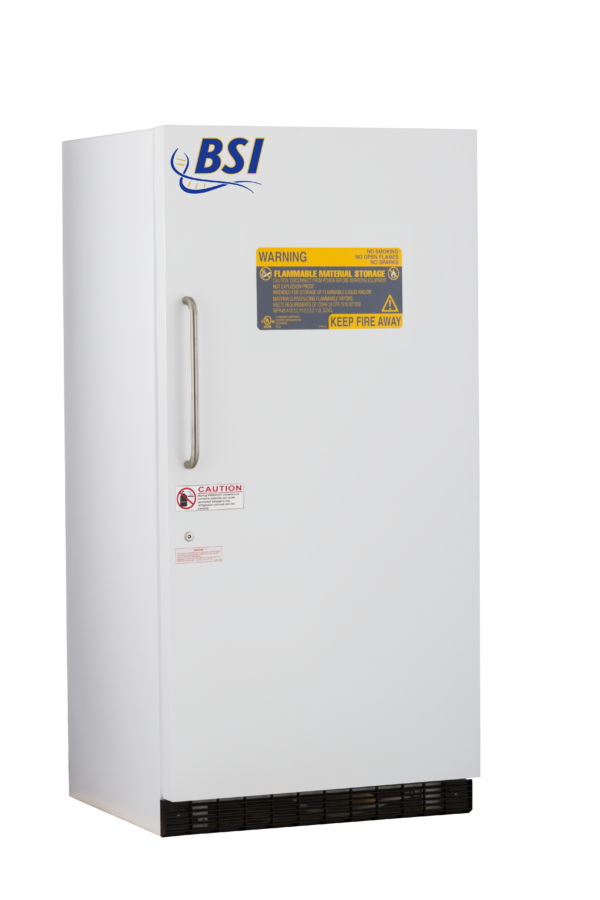

BSI Silver Series Flammable Material Storage Freezer | 30 Cu. Ft.
