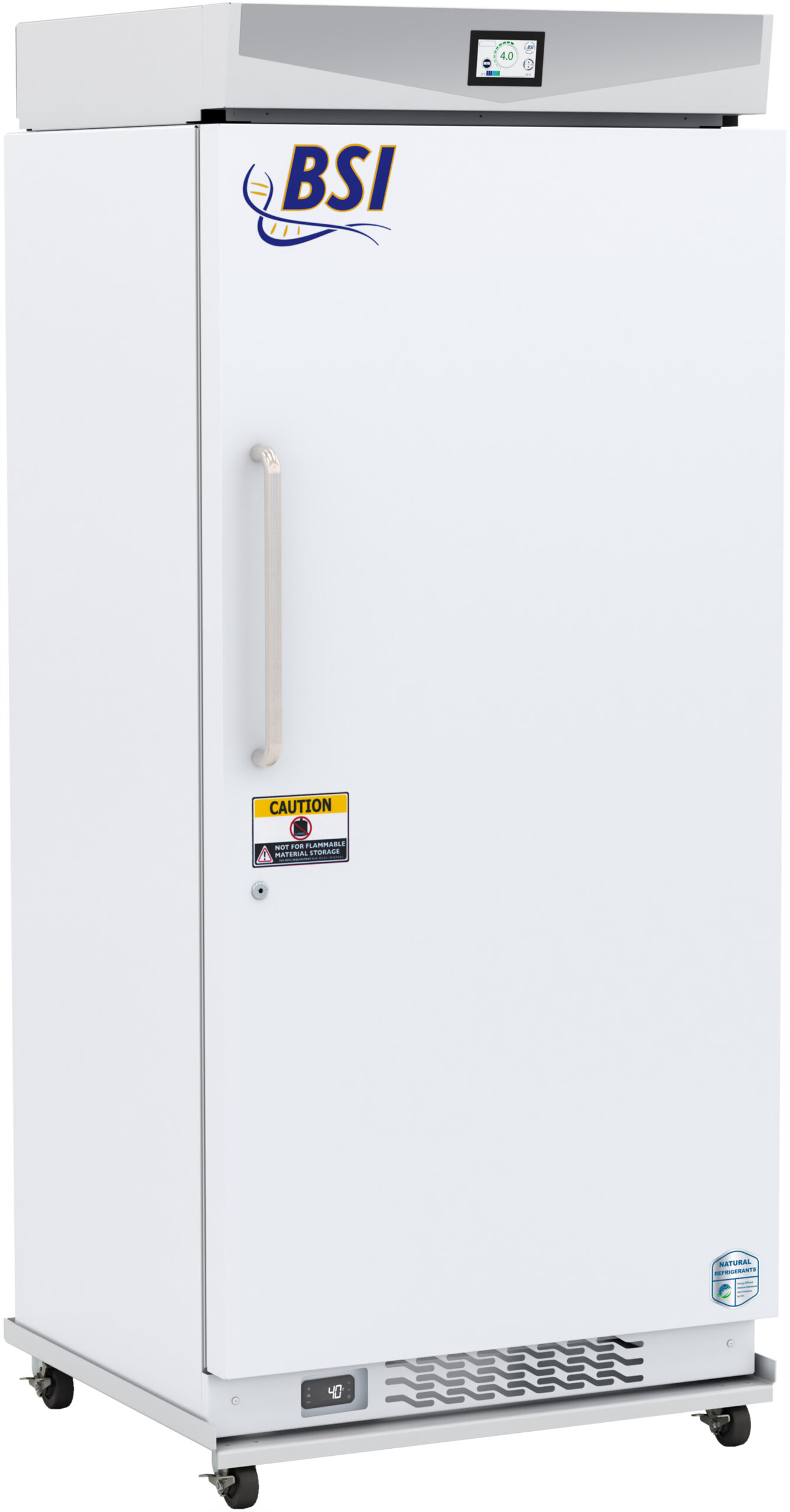

Name: BSI 30 cu. ft. Prime Touch Series Touchscreen Laboratory Refrigerator | Solid Door
Brand: BSI Refrigeration
SKU: BSI-HC-30R-TS
Availability: InStock

BSI 30 cu. ft. Prime Touch Series Touchscreen Laboratory Refrigerator | Solid Door

Item#: BSI-HC-30R-TS

This 30 cu. ft. touchscreen laboratory refrigerator redefines precision and user experience for critical sample storage, backed by microprocessor temperature control. These units utilize natural hydrocarbon refrigerants for EPA SNAP compliance and ecofriendly cooling. This model offers exceptional temperature uniformity and extensive data logging and charting capabilities for auditing and compliance. Access a 24-hour temperature chart and data logging capabilities through an intuitive touchscreen interface. Experience an extensive array of customizable audible and visual alarms, including high/low-temperature, sensor error, power failure, door ajar, and low battery alerts, all supported by a battery backup and remote alarm contacts. This unit is constructed with durable white powder-coated steel and protected by a secure keyed door lock. Adjustable interior shelving allows for versatile organization. The BSI-HC-30R-TS refrigerator provides a reliable, energy-efficient and user-centric solution for any laboratory needing precise temperature control and data logging capabilities.

~~$11,880.00~~ $9,147.60

REQUEST PROPOSAL

Cu. Ft.: 30
Door(s): One solid swing, right hinged; stainless steel door handle; magnetic door gasket
Exterior Dimensions: 35.75" W x 35.5" D x 83" H (Door swing 30.5", Total open Depth 66")
Interior Dimensions: 32" W x 22.5" D x 65" H
Adjustable Temperature Range: 2°C to 10°C

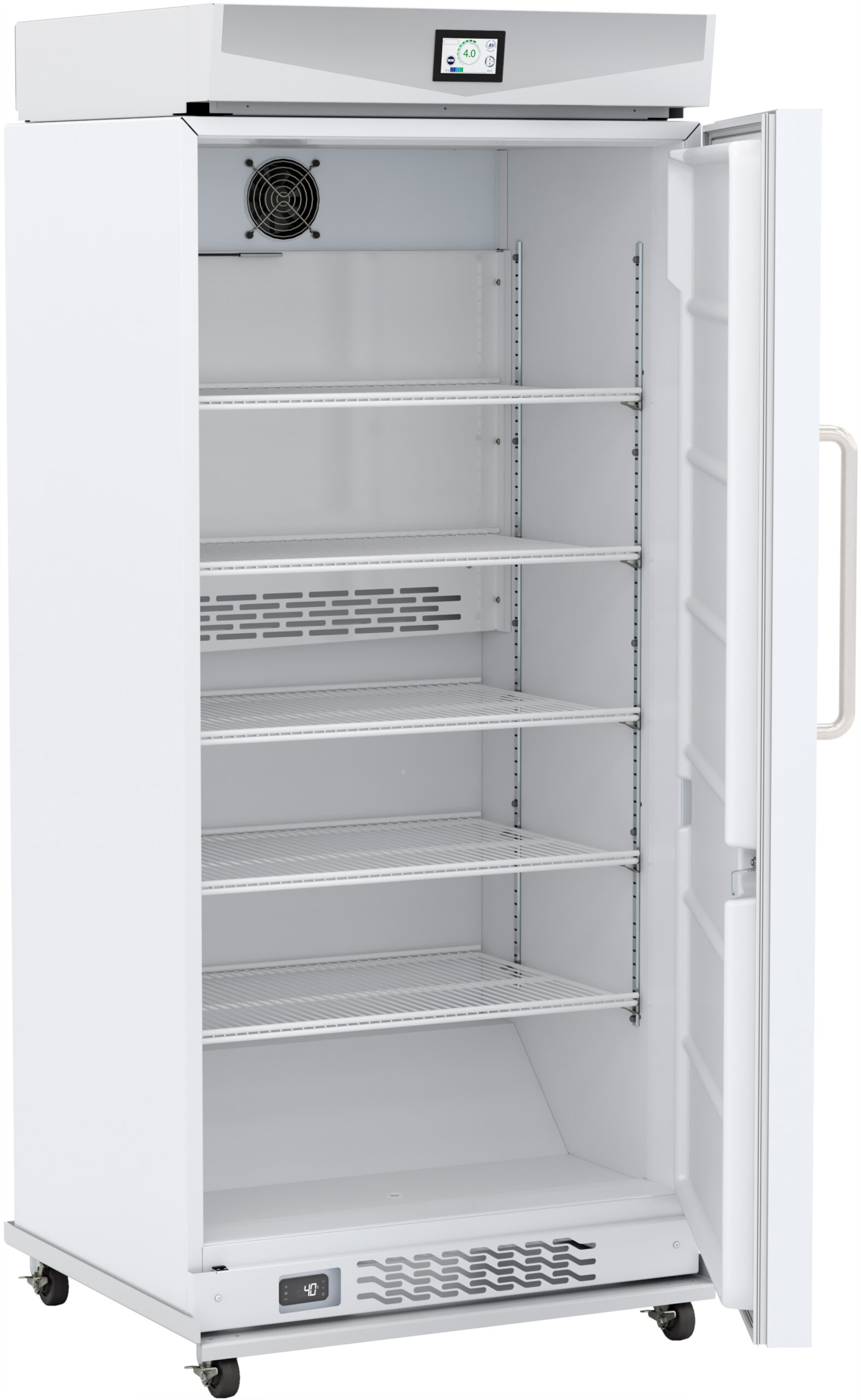

Shelves: Five adjustable
Mounting & Installation: Caster platform
Airflow Management: Forced draft circulation
External probe access: 3/4" probe access port on rear wall
Insulation: EPA compliant high density urethane foam
Exterior Materials: Powder coated steel
Access Control: Keyed door lock
General Warranty: Two (2) year parts and labor warranty
Compressor Warranty: Five (5) year compressor parts warranty
Product Weight (lbs): 350
Shipping Weight (lbs): 380
Rated Amperage: 3.1 Amps
Power Plug/Power Cord: NEMA 5-15P plug, 6 ft long cord
Facility Electrical Requirement: 110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification: UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120 standard
Uniformity (Cabinet air): +/- 1.6°C
Stability (Cabinet air): +/- 1.0°C
Maximum temperature variation (Cabinet air): 3.6 °C Total
Energy Consumption (KWh/day): < 1.7 KWh/day
Average Heat Rejection (BTU/hr): 520 BTU/hr
Pull down time to nominal operating temp: <35 min (empty)

Compressor: Hermetic, variable speed
Refrigerant: EPA SNAP compliant R600a Isobutane
Condenser: Static - exterior walls of cabinet
Evaporator: Fin and tube design, high efficiency fan
Defrost: Off-cycle defrost, no heat added
Controller technology: Microprocessor temperature controller with variable frequency compressor control
Battery Backup: Temperature display and alarm only (no active cooling)
Display technology: Touch screen digital temperature display with user friendly interface, real-time operational display clock, active temperature scale bar display, resettable 1-point min/max history, digital 24- hour temperature chart, and temperature data logging
Temperature Setpoint Range Notes: Minimum temperature limited to avoid freezing
External alarm connection: Remote alarm contacts
Alarms: Adjustable alarm volume, Audible and visual high and low temperature alarms, sensor error alarm, power failure alarm, door ajar alarm, low battery alarm, alarm validation (audible, visual, and remote alarm), alarm mute with ring back, and customizable alarm time delay settings
Display Probe: Product simulator bottle with glass bead media
Disclaimers: Refrigerator requires a minimum 4” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) - improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
