Name: BSI 30 cu. ft. Hazardous Location Refrigerator | Solid Door
Brand: BSI Refrigeration
SKU: BSI-HC-ERS-30
Availability: InStock

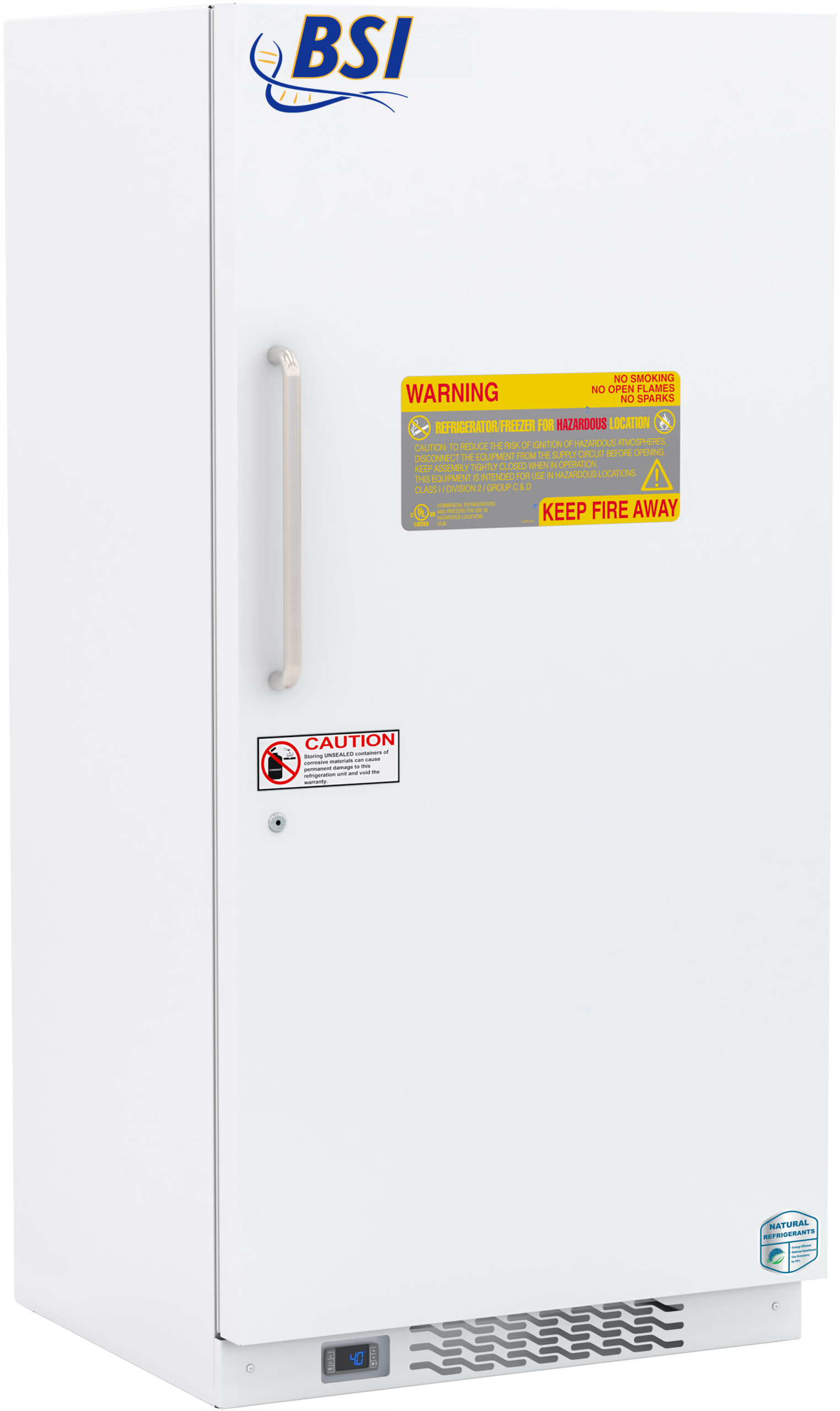

BSI 30 cu. ft. Hazardous Location Refrigerator | Solid Door

Item#: BSI-HC-ERS-30

This 30 cu. ft. hazardous location refrigerator is meticulously engineered for the safe and reliable storage of volatile materials in potentially hazardous work environments. It’s the ideal choice for industrial environments requiring strict safety protocols. This unit utilizes EPA SNAP compliant natural refrigerants for environmentally responsible operation. Maintaining a consistent temperature range of 2°C to 10°C with tight temperature uniformity, this refrigerator provides dependable cold storage backed by microprocessor technology. It features a durable white powder-coated steel exterior, with a keyed door lock for added security. Adjustable interior shelving allows for versatile organization. With low energy consumption and precise temperature control, the BSI-HC-ERS-30 is a safe and efficient solution for hazardous laboratory locations and industrial settings.

~~$10,974.00~~ $8,449.98

REQUEST PROPOSAL

Cu. Ft.: 30
Door(s): One solid swing, right hinged; stainless steel door handle; magnetic door gasket
Exterior Dimensions: 35.75" W x 35.5" D x 72.5" H (Door swing 30.5", Total open Depth 66")
Interior Dimensions: 32" W x 22.5" D x 65" H
Adjustable Temperature Range: 2°C to 10°C

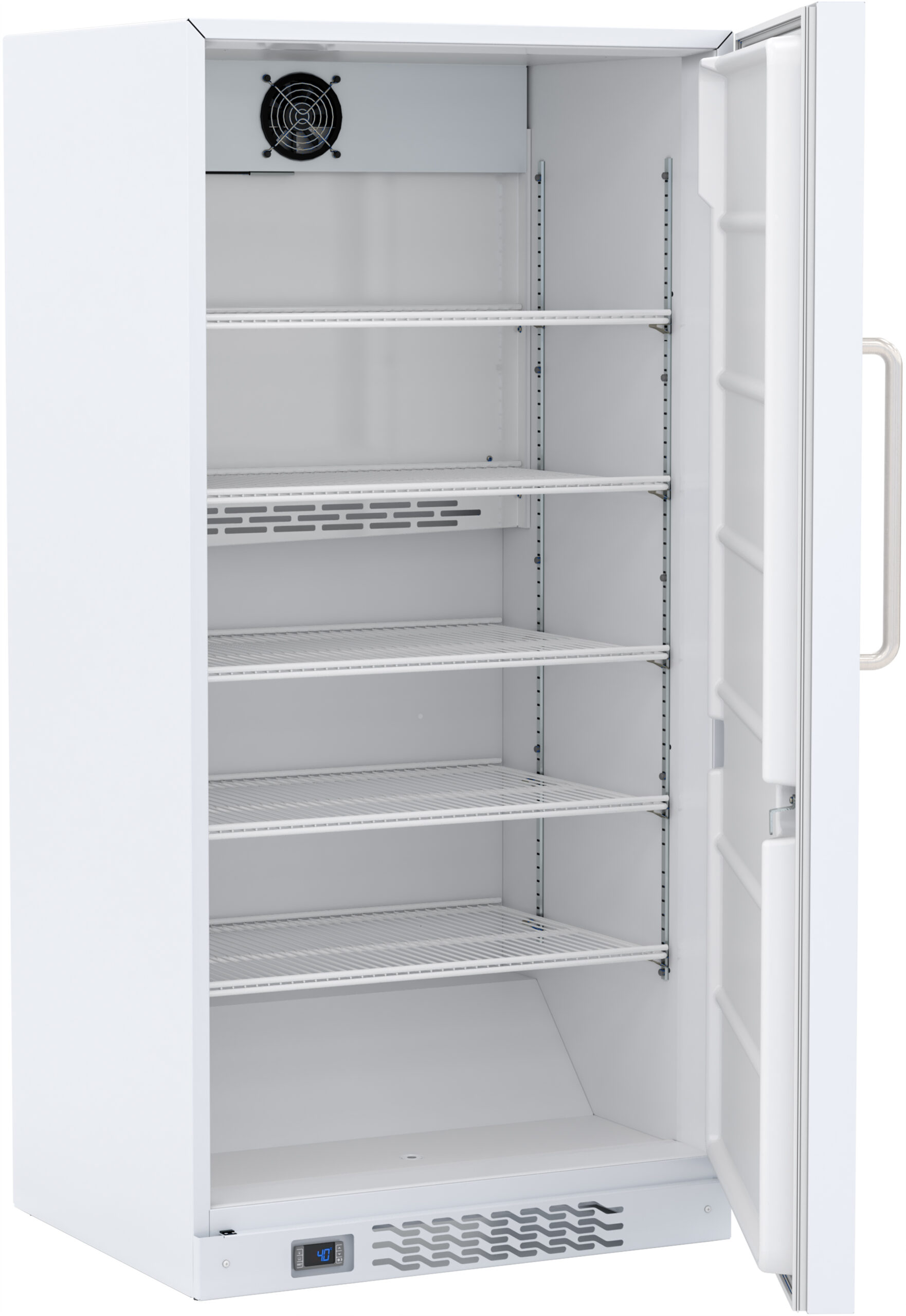

Shelves: Five adjustable
Mounting & Installation: Leveling Legs
Airflow Management: Forced draft circulation
External probe access: 3/4" probe access port on rear wall
Insulation: EPA compliant high density urethane foam
Exterior Materials: Powder coated steel
Access Control: Keyed door lock
General Warranty: Two (2) year parts and labor warranty
Compressor Warranty: Five (5) year compressor parts warranty
Product Weight (lbs): 320
Shipping Weight (lbs): 350
Rated Amperage: 3.1 Amps
Power Plug/Power Cord: Power cord not included - final power connections at site must be hardwired to meet local codes
Facility Electrical Requirement: 110 - 120V AC, 15A breaker
Agency Listing and Certification: UL and c UL listed, Meets NFPA and OSHA guidelines for Hazardous locations, Class 1, Division II, Groups C &D
Uniformity (Cabinet air): +/- 1.6°C
Stability (Cabinet air): +/- 1.5°C
Maximum temperature variation (Cabinet air): 4.6 °C Total
Energy Consumption (KWh/day): < 1.5 KWh/day
Average Heat Rejection (BTU/hr): 500 BTU/hr
Pull down time to nominal operating temp: <35 min (empty)

Compressor: Hermetic, variable speed
Refrigerant: EPA SNAP compliant R600a Isobutane
Condenser: Static - exterior walls of cabinet
Evaporator: Fin and tube design, high efficiency fan, hazardous location rated
Defrost: Off-cycle defrost, no heat added
Controller technology: Microprocessor temperature controller
Temperature Setpoint Range Notes: Minimum temperature limited to avoid freezing
External alarm connection: Remote alarm contacts
Alarms: Audible and visual high/low-temperature alarms, Door ajar alarm, Remote alarm contacts
Display Probe: Product simulator bottle with glass bead media
Disclaimers: Refrigerator requires a minimum 4” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) - improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
