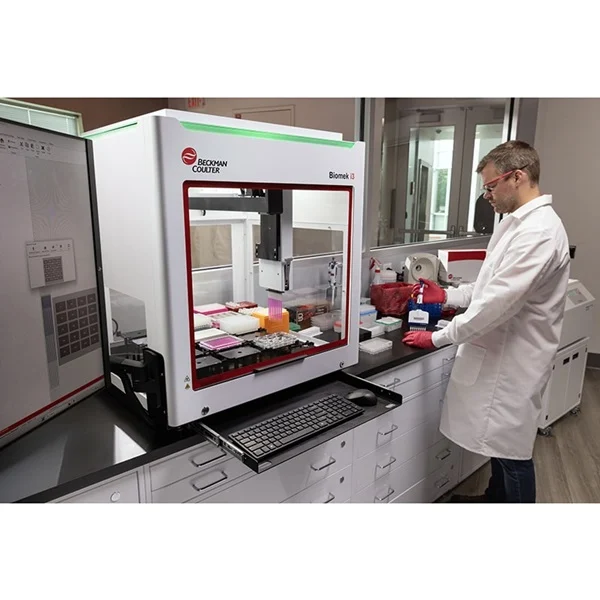

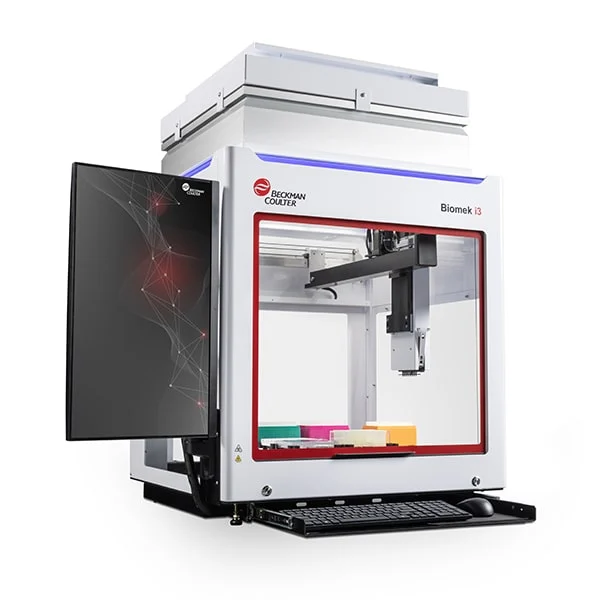

Beckman Coulter Biomek i3 Liquid Handling Automated Workstation

Item#: BIOMEK-I3

The Biomek i3 Benchtop Liquid Handler is the newest and most compact member of the Biomek i-Series family, ideal for accelerating entry-level to medium-throughput workflows. It’s the perfect choice for those beginning their journey into lab automation or seeking a simple and affordable yet powerful alternative to more complex systems.

REQUEST PROPOSAL

Deck Capacity: 15 pipettable and 5 flex positions
Pipetting Volume Range: 1 - 1,000 µL
Throughput: Ideal for entry-level to medium-throughput workflows
Independent Tip Loading: Yes
Number of Grippers: 1
Enclosure: Yes
Pipetting Heads and Pods: 1 - 1,000 μL Fixed-8 Pod
HEPA filtration (optional): Positive pressure or negative pressure
Compatible Tip Types: P20, P20 Conductive, P50, P50 Conductive, P250, P250 Wide Bore, P250 Conductive, P1000, P1000 Wide Bore, P1000 Conductive Disposable Tips
Display: Arm-mounted touchscreen monitor
Software: Biomek Software (pre-installed)
Operating System: Windows® 11
Power Requirements:
- Base Unit: 100–240 VAC, 3 A, 50/60 Hz
- Automation Controller: 100–240 VAC, 2.5 A, 50/60 Hz
- Monitor: 100–240 VAC, 1 A, 50/60 Hz
Dimensions:
- Width: 73.2 cm (28.8 in)
- Depth: 78.5 cm (30.9 in)
- Height: 82.6 cm (32.5 in) with door closed, 128.5 cm (50.6 in) with door open
Minimum Table Support Requirements: 73.2 x 78.5 cm (28.8 x 30.9 in)
Weight: Base instrument: 49.89 kg (110 lbs)/Fully assembled instrument with full deck: 64.41 kg (142 lbs)
Ambient Temperature Range: 10°C-30°C (50°F-86°F)
Humidity Restrictions: 20%–80% (non-condensing) at 30°C
Max Altitude: up to 2,000 m (6,562 ft)
Maximum Noise Output: ≤ 70 dBA (Average sound level)
Materials:
- Top and sides: painted aluminum
- Door handle: painted steel
- Door panel: acrylic with vinyl applications
Additional Features:
- UV light enabled
- Color coded status light bar
- Wireless keyboard and mouse
- Select tip functionality
- 2 deck observation cameras
- On- and off-deck integration ready

15 ANSI/SLAS standard pipettable and 5 flex positions
Includes 12 standard and 3 short static automated labware positioners (ALPs)
Dimensions: 73.2 cm (W) x 78.5 cm (D) x 82.6 cm (H)
Gripper supports labware up to 12.8 cm in height and 725 g in weight, and it's capable of stacking up to four plates
Ready for on-deck and off-deck integration (Left, Right, Back & Down)
Pipetting Volume Range: 1 µL to 1000 µL with air displacement technology
Fixed-8 Pipetting Pod allows selective loading of 1–8 tips in any sequence
Uses standard Biomek i-Series 96-format disposable tips
Windows® 11-compatible Biomek Software with touchscreen support
Supports 21 CFR Part 11 with user accounts, permissions, and audit trails
BeckmanConnect enables secure remote diagnostics and troubleshooting
Guided Labware Setup
Method Options Selector Step Builder
Camera-enabled error log
Installed UV-C light
Positive or negative pressure HEPA-filtration (optional)
Deck Observation System (2 cameras)
Interior LED deck lighting
Status Indicator Light Strip
Safety shields
Arm-mounted touchscreen monitor
