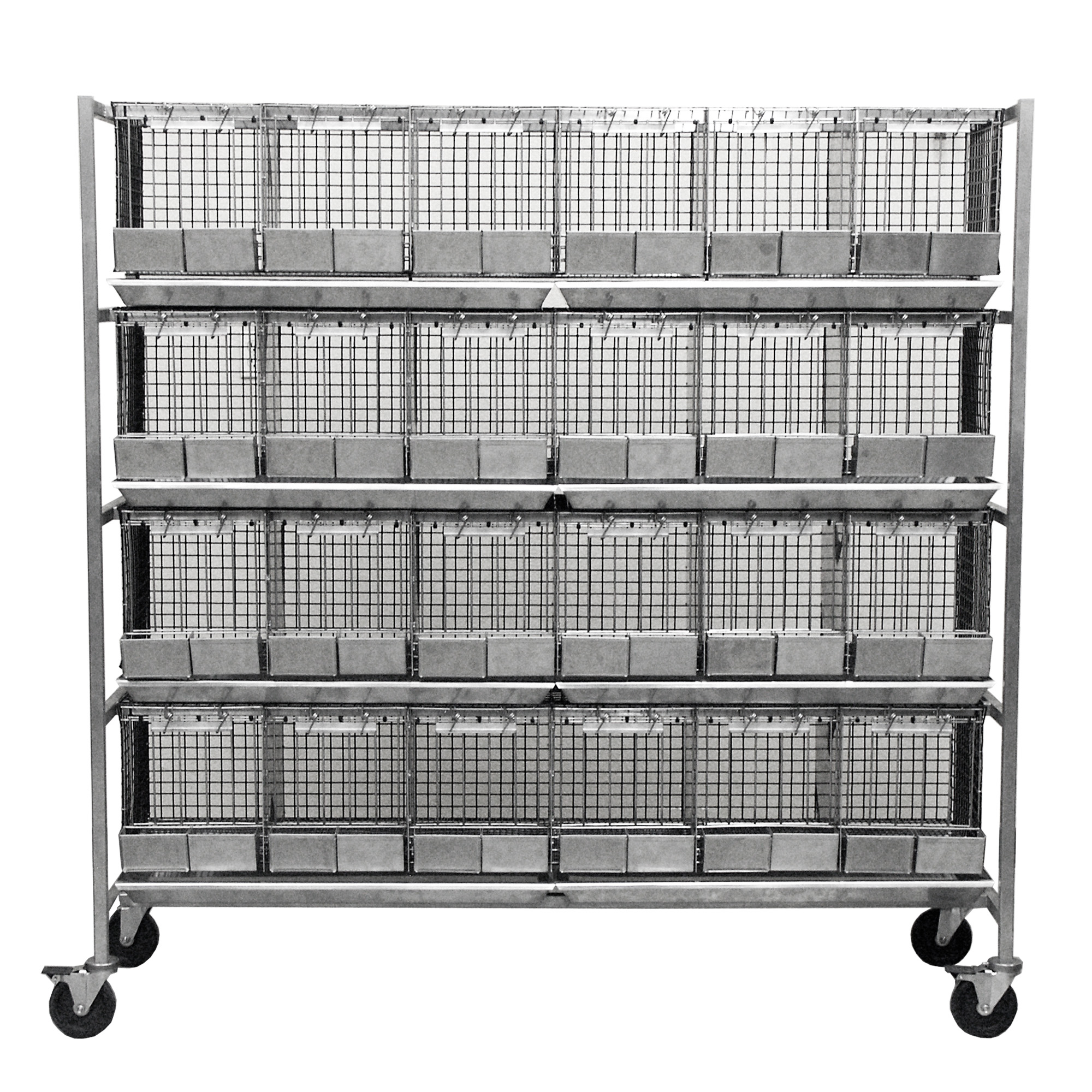

Alternative Design Pigeon 24-Cage Housing Unit

Item#: PC24-11X15X12

Alternative Design is a leader in the design and manufacture of avian research caging. With an emphasis on quality and innovative design in cages that last far longer than traditional avian cages, Alternative Design has developed caging for avian species that not only provides a better environment for the animals, but withstand the test of time as well.

Customers have come to appreciate the ease of use that is built into all our avian housing products, and the durable construction that comes from using PVC coated wire and stainless steel.

REQUEST PROPOSAL

24-Cage Rack Dimensions – 77.5” W x 24”D x 75” H
Cage Dimensions – 11” W x 15”D x 12” H
1.1 sq. ft. floor
PVC Coated Wire – Part # – PC24-11X15X12-PVC
Stainless Steel Wire – Part # – PC24-11X15X12-SS

IMPORTANT: INITIAL CLEANING
All components of this Alternative Design stainless steel product must be cleaned, sanitized and sterilized, where applicable, prior to being put into service. PVC coated wire cleaning – PVC coated wire may be heated up to 180 degrees F or 82 degrees C for cleaning and disinfecting. This unit is made primarily of 304 stainless steel. Use care when cleaning to prevent corrosion that can shorten useful life. Cleaning solutions which contain high levels of chlorine are not recommended for stainless steel parts.

Caster Maintenance
Caster used on this equipment was chosen for its suitability in applications where frequent washdowns are necessary. It is also well suited for applications exposed to heat, cleaning agents, steam, caustic solutions or other corrosive agents, which could cause rust and contamination. After washing and/or autoclaving, check casters for proper operation. Check the axle nut to ensure it is still tight (125 inch/pound is recommended). If the axle and/or swivel bearing has to be lubricated, use a high temp grease.

Frame, door, feeder and pans made from 304 stainless steel
PVC coated wire mesh for bird comfort, easy cleaning and longer life
Manual water system
Separate feed and water troughs
Large doors for easy access and quick close
5” swivel casters, 2 with brakes

5-year warranty includes:

* Individually Ventilated Caging (IVC) rack frames and fabricated components
* All other stainless steel fabricated caging systems
* Fabricated material handling, storage and processing equipment made of stainless steel
