- Max inlet pressure: 35 PSIG (2.5 BAR)
- Internals: Brass barstock
- Cryogenic relief valves: 50 PSIG (3.5 BAR); 1/2 in FNPT
- Hot gas bypass: 1/2 in FNPT
- Inlet/Outlet connections: CGA 295
- Drain: 1/2 in PVC
- Alarm output: 1 or 5 dry contact NC
- Alarm input: From oxygen deficiency monitor output relay
- Pneumatic gas: 95 PSIG (6.5 BAR) - 105 PSIG (7.5 BAR) gaseous dry nitrogen
- Pneumatic input: 1/8 in FNPT
- Communication ports: Ethernet & USB (maintenance only)
- Enclosure: NEMA 12 powder-coated steel
- Power: 90-264 VAC; 47-63 Hz (US, UK, European, Australian, and Chinese adapters included)
- Weight: 40 lbs (18 kg)
- Conformances (power supply): Safety approvals CCC, FCC, PSE, RCM, UKCA, UL/cUL; CRN OH17950.5
- Conformances: CE marked; Cleanliness meets or exceeds CGA G-4.1; CRN OH5216.5

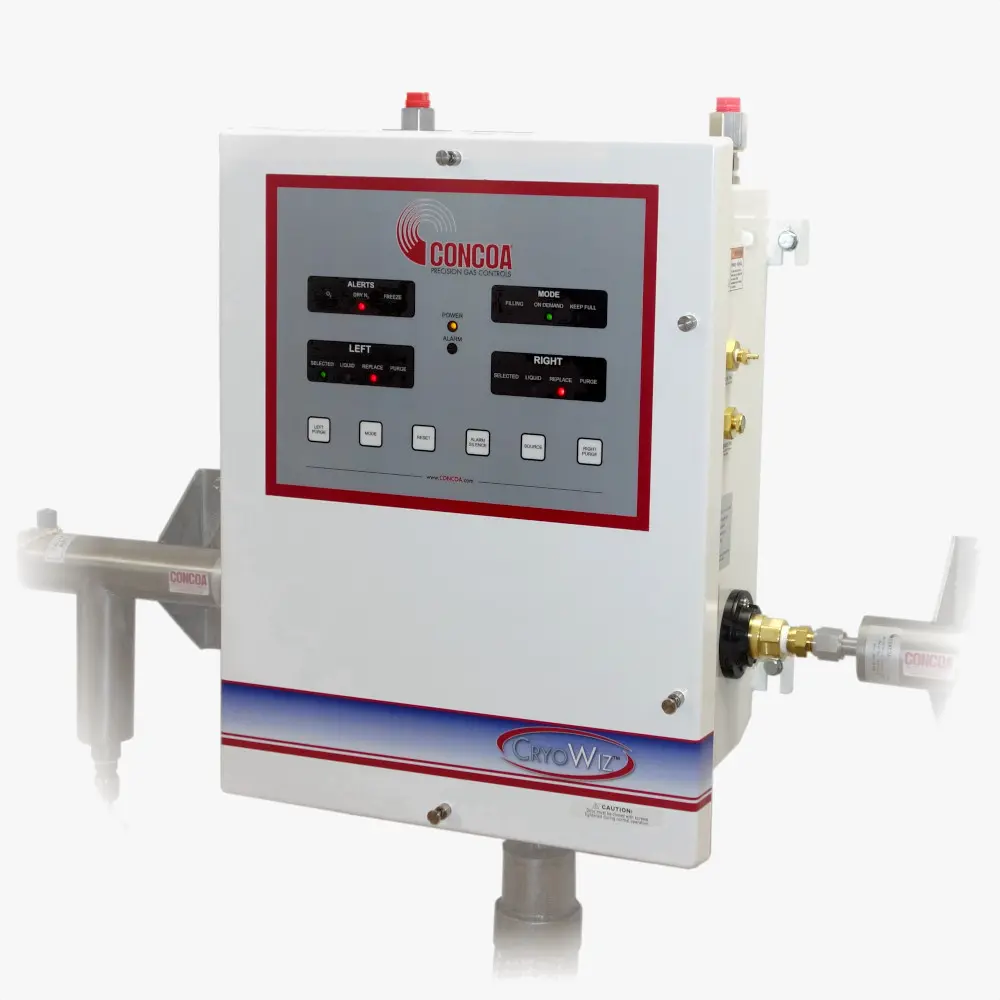

577 Series CryoWiz Cryogenic Switchover System
Item#: 5771113-01-100The 577 Series CryoWiz™ revolutionizes the supply of cryogenic liquid nitrogen to freezers, environmental chambers, and other critical cryogenic applications. Using proprietary algorithms and dynamic hot-gas bypass, the CryoWiz Cryogenic Switchover System automatically switches between primary and secondary sources to deliver a seamless supply of cryogen with minimal temperature change. Proprietary onboard web server technology allows remote monitoring, secure system configuration, and email notification of real-time system status and events. With an unprecedented emphasis on safety and efficiency, the fully customizable CryoWiz can accommodate new usage profiles with a push of a button. The CONCOA CryoWiz is specifically designed for cryogenic applications. To effectively manage cryogenic liquid cylinders in gas phase applications, CONCOA recommends the IntelliSwitch family of products.
- Automatic proprietary control algorithm ensures continuous efficient supply
- Insulated switching mechanism minimizes flash loss of liquid
- High flow cryogenic valves deliver an optimal supply of liquid nitrogen
- Compact NEMA 12 enclosure with condensate drain eliminates moisture buildup
- Oxygen deficiency relay contact allows easy connection of oxygen deficiency monitor to ensure safe use
- Local audible and visual alarm provides onboard emergency monitoring
- Ethernet port/webserver enables remote monitoring of functions, e-mail alerts, and remote configuration
- Button selectable "Keep-full" and "On Demand" modes accommodate new applications
